■ External Sync Recording (EST)

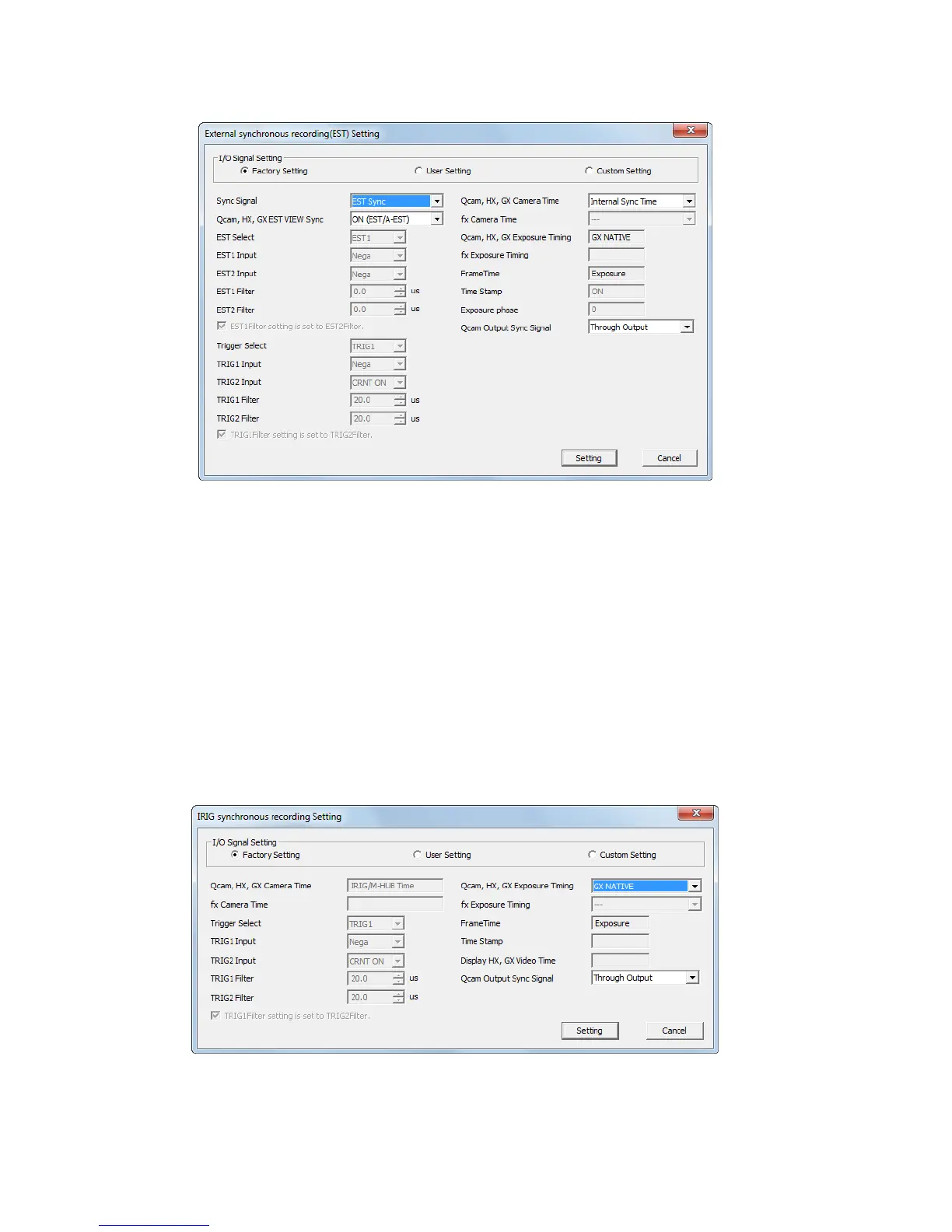

Setting to record synchronized to the exposure start signal (external sync recording (EST))
input.
Refer to page 8-3 for the procedure to set the external sync recording (EST).
Sets the sync settings, exposure timing, absolute frame time, time stamp and exposure phase for
EST recording.
Refer to page 6-11 for details of the sync signals, EST input selection, EST1 input polarity,
EST2 input polarity, EST1 filter, EST2 filter, trigger input selection, TRIG1 input polarity,
TRIG2 input polarity, TRIG1 filter, and TRIG2 filter.
Refer to page 6-5, 6-6 for “Qcam, HX, GX EST VIEW Sync”, “Qcam, HX, GX camera time
“and “fx camera time”.
Refer to page 3-9 for “Qcam Output Sync Signal”.
■IRIG Sync Recording
Settings for when performing sync recording with the IRIG-B signals and trigger signal divided
into each camera.
Refer to page 8-7 for the procedure to set the IRIG sync recording.
