NEC DSX Software Manual

Station Key Telephones
326 ◆ Features DSX Software Manual
Ring/Message Lamp
Each keyset has a Ring/Message Lamp. Located on the upper right of the keyset faceplate, the Ring/Message
Lamp indicates for the following features:
Conditions
• None
Default Setting
• Digital station ports automatically detect the type of connect device when the keyset is plugged in.

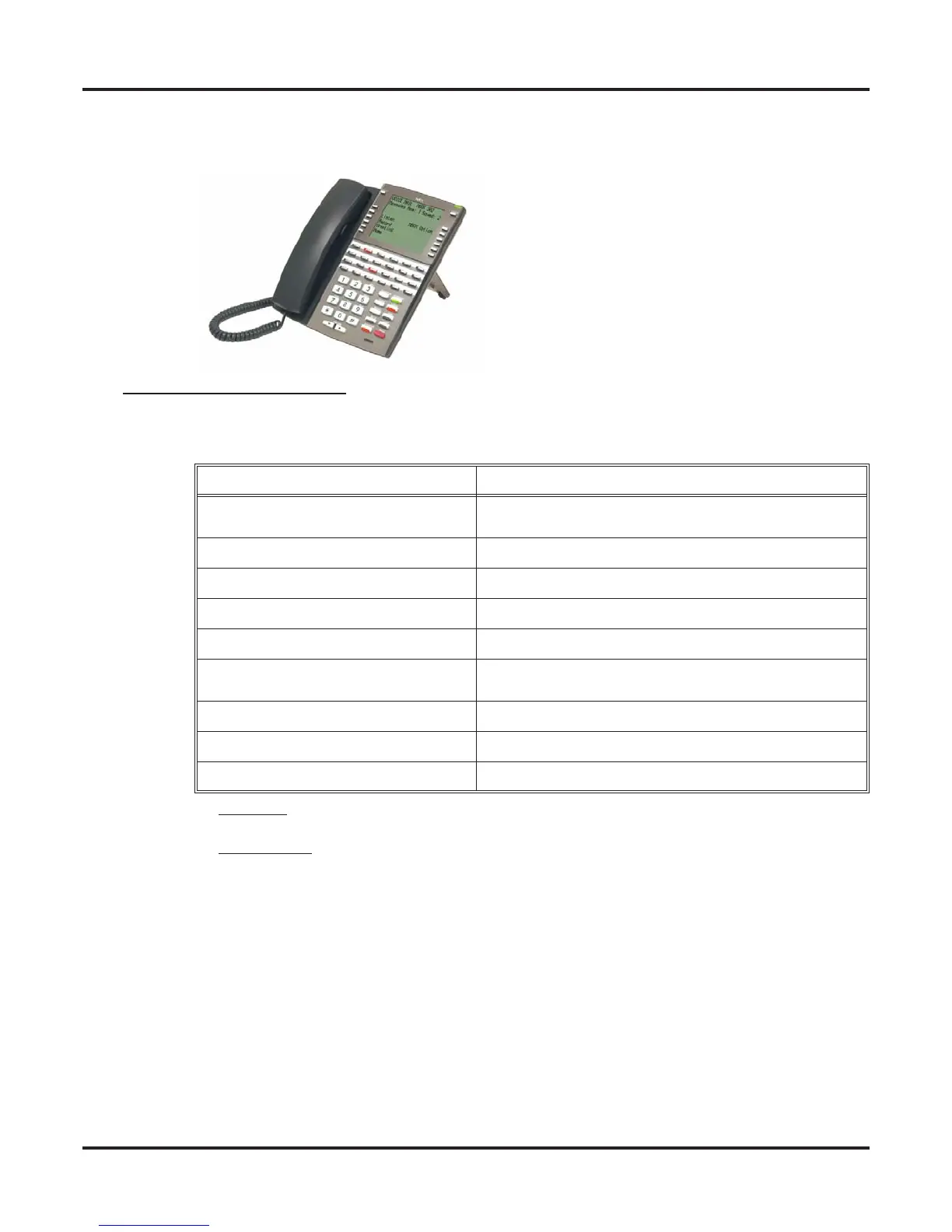

34-Button Backlit Super Display Telephone with Half-Duplex Speakerphone
The Super Display Telephone is the system’s most sophis-
ticated telephone instrument. It features a large 9 line-by-
24 character backlit alphanumeric display with 12 Interac-
tive Soft Keys for intuitive feature access. It also provides
10 Personal Speed Dial bin keys, 24 programmable Fea-
ture Keys and 12 fixed function keys for streamlined oper-
ation. Additionally, this telephone offers a built-in half
duplex speakerphone (with no external speaker or micro-
phone required), a backlit keypad, and a headset jack.
Unique features include dual LEDs, built-in wall mount-
ing, and an innovative two position angle adjustment.
For this feature: The lamp does this:
Caller ID Logging
Double-wink on (green) when there is a new Caller ID
record that has not been reviewed
Central Office Calls, Answering
Slow flash (green) as call rings
Direct Inward Line
Slow flash (green) as call rings
Hold
Slow flash (green) during Hold recall
Intercom
Slow flash (green) as call rings
Message Waiting
Fast flash (red) when user has a Message Waiting
indication left
Park
Slow flash (green) during Park recall
Transfer
Slow flash (green as call rings) and during Transfer recall
Voice Mail
Fast flash (red) when messages are waiting in mailbox
