Busy
InPosition
Position
Comm
andAborted
Active
Error
ErrorID
Execute
Busy
Done
Active
60
50
40
30
20
0
Execute
20 30 40 50 60 40
16#0000
Command position
Time

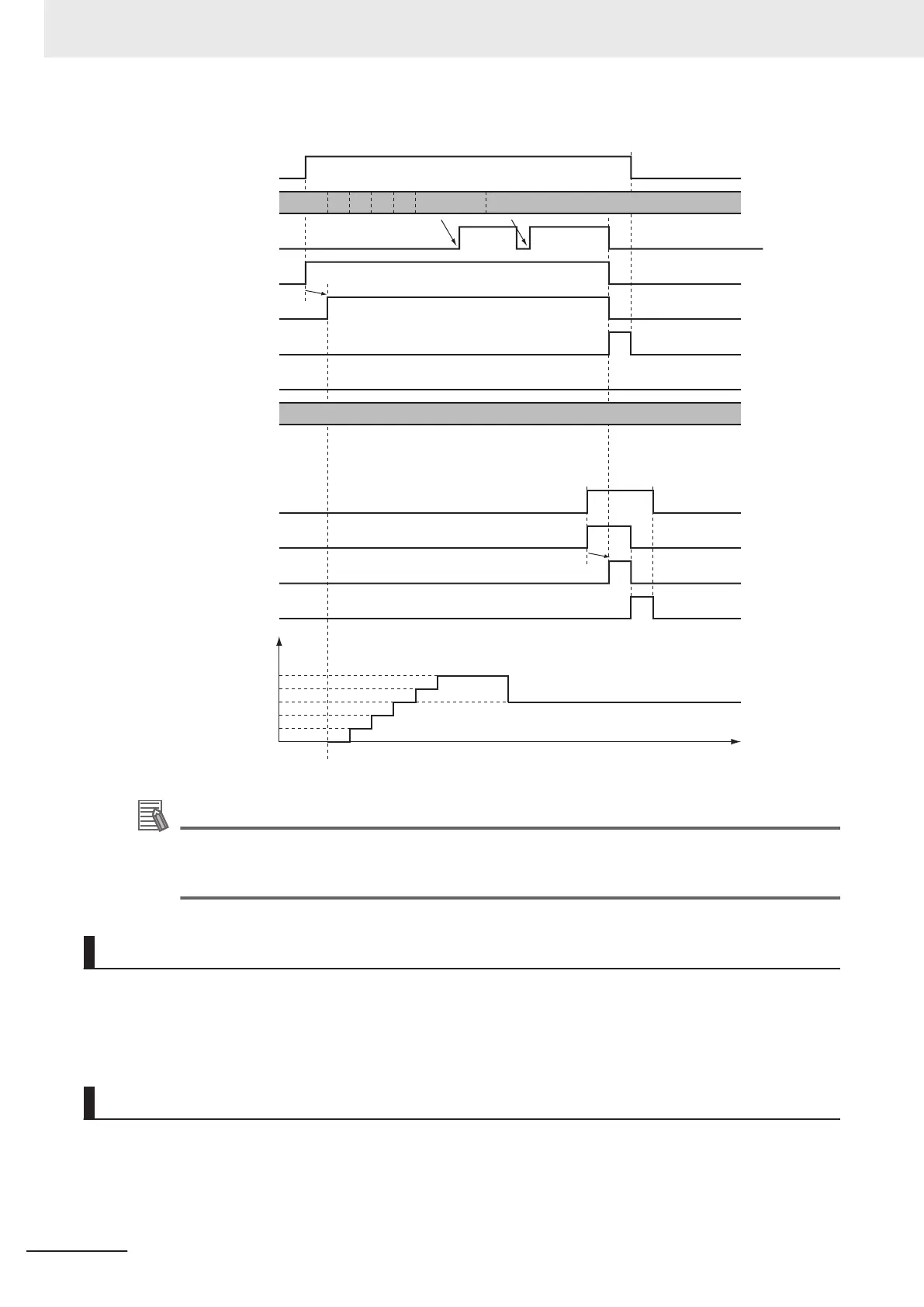

MC_GroupSyncMoveAbsolute Instruction
MC_GroupStop Instruction
Additional Information
The MC Function Module sends a command to the Servo Drive to change the Control Mode as
shown in the above timing chart. The timing of implementing the change in the Servo Drive de-
pends on Servo Drive specifications.
Re-execution of Motion Control Instructions
This instruction cannot be re-executed.
A Motion Control Instruction Re-execution Disabled error (error code: 543B hex) occurs if re-execution
is attempted.
Multi-execution of Motion Control Instructions
For details on multi-execution of motion control instructions, refer to the NY
-series Industrial Panel
PC / Industrial Box PC Motion Control User’s Manual (Cat. No. W559).
4 Axes Group Instructions
4-104
NY-series Motion Control Instructions Reference Manual (W561)
