R&S ZNL Series User Manual

VNA GUI reference
R&S
®
ZNL/ZNLE
535User Manual 1178.5966.02 ─ 20
Remote command:
[SENSe<Ch>:]CORRection:LOSS<PhyPt>:OFFSet
[SENSe<Ch>:]CORRection:LOSS<PhyPt>
[SENSe<Ch>:]CORRection:LOSS<PhyPt>:FREQuency
[SENSe<Ch>:]CORRection:LOSS<PhyPt>:SECond:STATe
[SENSe<Ch>:]CORRection:LOSS<PhyPt>:SECond
[SENSe<Ch>:]CORRection:LOSS<PhyPt>:SECond:FREQuency
Reset Offsets
The "Reset Offsets" button resets the length and loss parameters for all ports to their
default values.
Remote command:
[SENSe<Ch>:]CORRection:OFFSet<PhyPt>[:STATe]
All Offsets On / All Offsets Off
Activates/deactivates the length and loss compensation for all ports.
Use the checkboxes in the Active column to activate/deactivate the length and loss
compensation for selected ports.
Remote command:
[SENSe<Ch>:]CORRection:OFFSet<PhyPt>:COMPensation[:STATe]

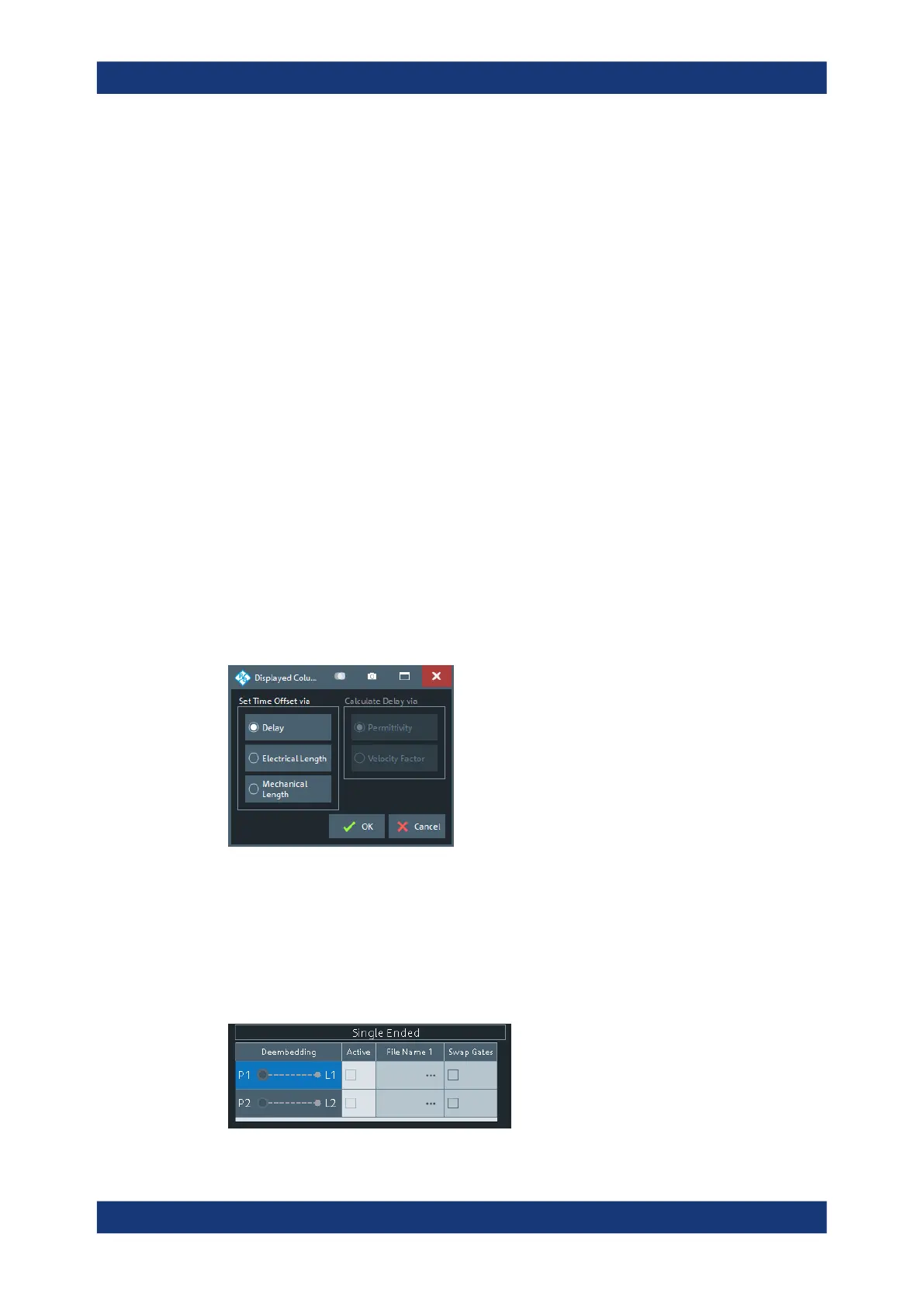

Displayed Columns
Opens a dialog that lets you select between different ways to specify the offset, similar
to Delay / Electrical Length / Mech. Length on the Offset tab.
10.14.1.3 Single Ended panel
Allows you to activate or deactivate single ended deembedding/embedding for
selected physical ports. For the "2-Port Data" network type, it is also possible to
change the underlying s2p Touchstone file from the dock widget.
Access: Overview panel > "Single Ended"
Offset Embed softtool
