VNA GUI reference

R&S

ZNL/ZNLE

550User Manual 1178.5966.02 ─ 20

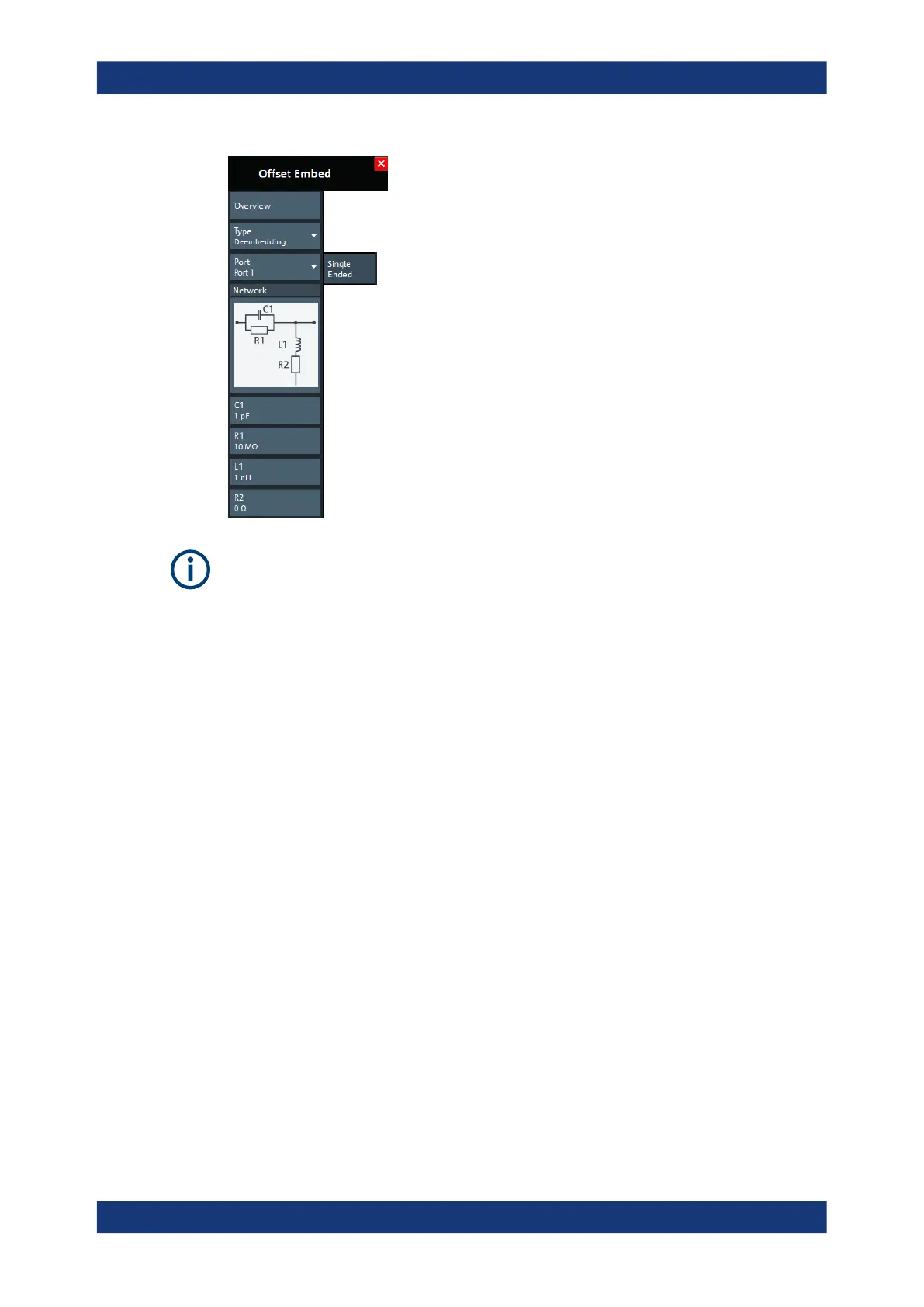

If the "Fixture Simulator" is disabled for the related channel (see "Fixture Simulator"

on page 527), this tab is inactive, i.e. all controls except the "Overview" button are

grayed out.

Overview

See "Overview" on page 543.

Type

Switches between "Deembedding" and "Embedding" network definition.

Port

Physical port. The transformation networks are defined such that the analyzer is con-

nected to the left of the circuit while the DUT is connected to the right side. You can

define independent transformation networks for all ports.

Remote command:

The <PhyPt> numeric suffix in the embedding/deembedding commands identifies the

physical port; see e.g. CALCulate<Ch>:TRANsform:VNETworks:SENDed:

DEEMbedding<PhyPt>[:STATe] or CALCulate<Ch>:TRANsform:VNETworks:

SENDed:EMBedding<PhyPt>[:STATe].

All Deembedding Activated

Deactivates or activates all deembeddings (single-ended, balanced, port set, ground

loop) for the active channel, if any.

This control is only visible if Type = "Deembedding".

Remote command:

n.a.

Offset Embed softtool
