ZVT GUI Reference
Trace Menu
Operating Manual 1145.1084.12 – 30 132

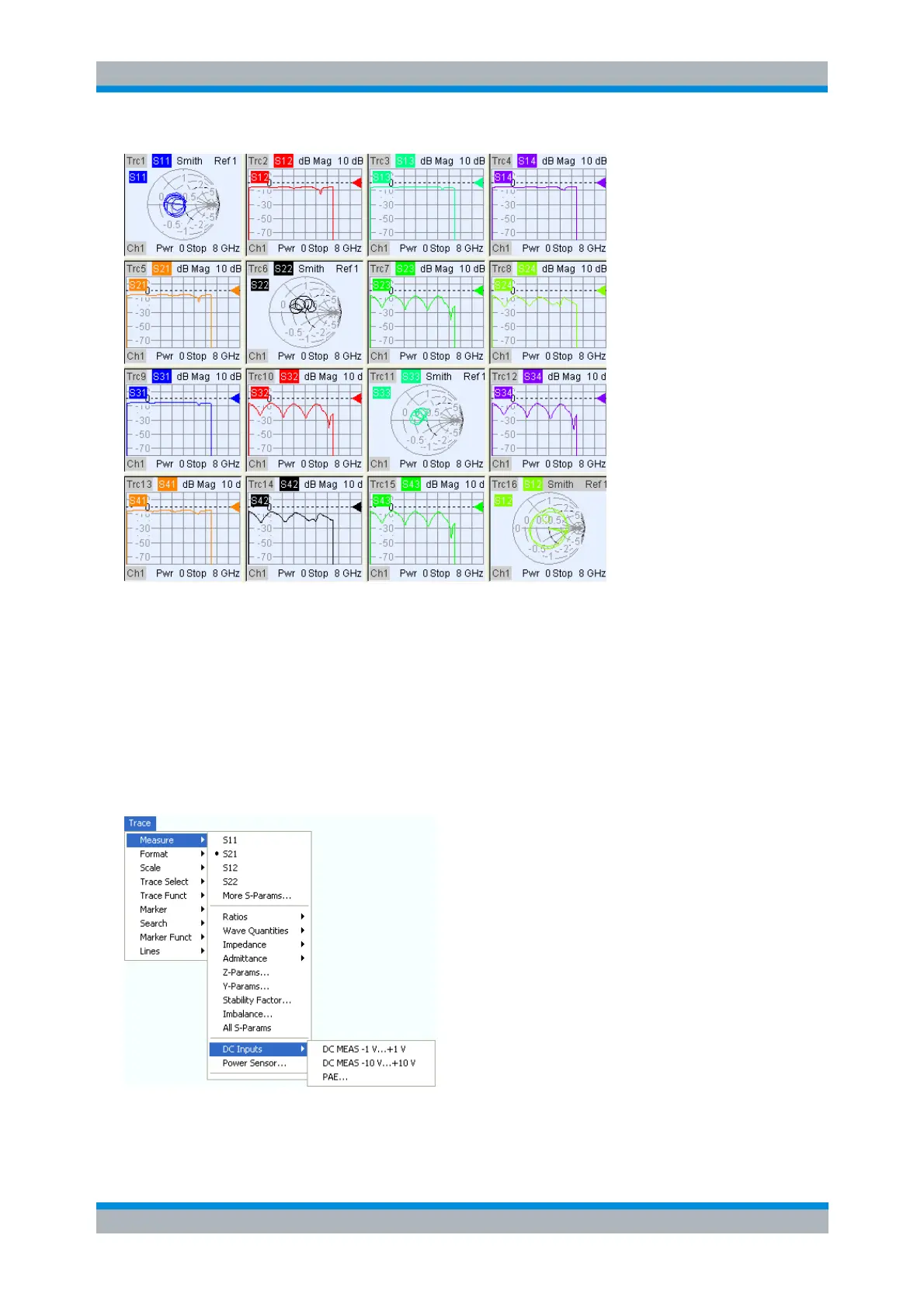

A n-port analyzer provides n
2
independent S-parameters S
<out><in>
. If a balanced port configuration is
defined, the normal S-parameters are replaced by mixed mode parameters.
Remote control:
–
DC Inputs
The DC Inputs submenu selects DC voltages or the Power Added Efficiency (PAE) of an active two-port
DUT to be measured and displayed.
 DC MEAS –1 V...+1 V and DC MEAS –10 V...+10 V select the DC voltages fed to the input
connectors DC MEAS as measured quantities.
