ZVT GUI Reference
Channel Menu
Operating Manual 1145.1084.12 – 30 332

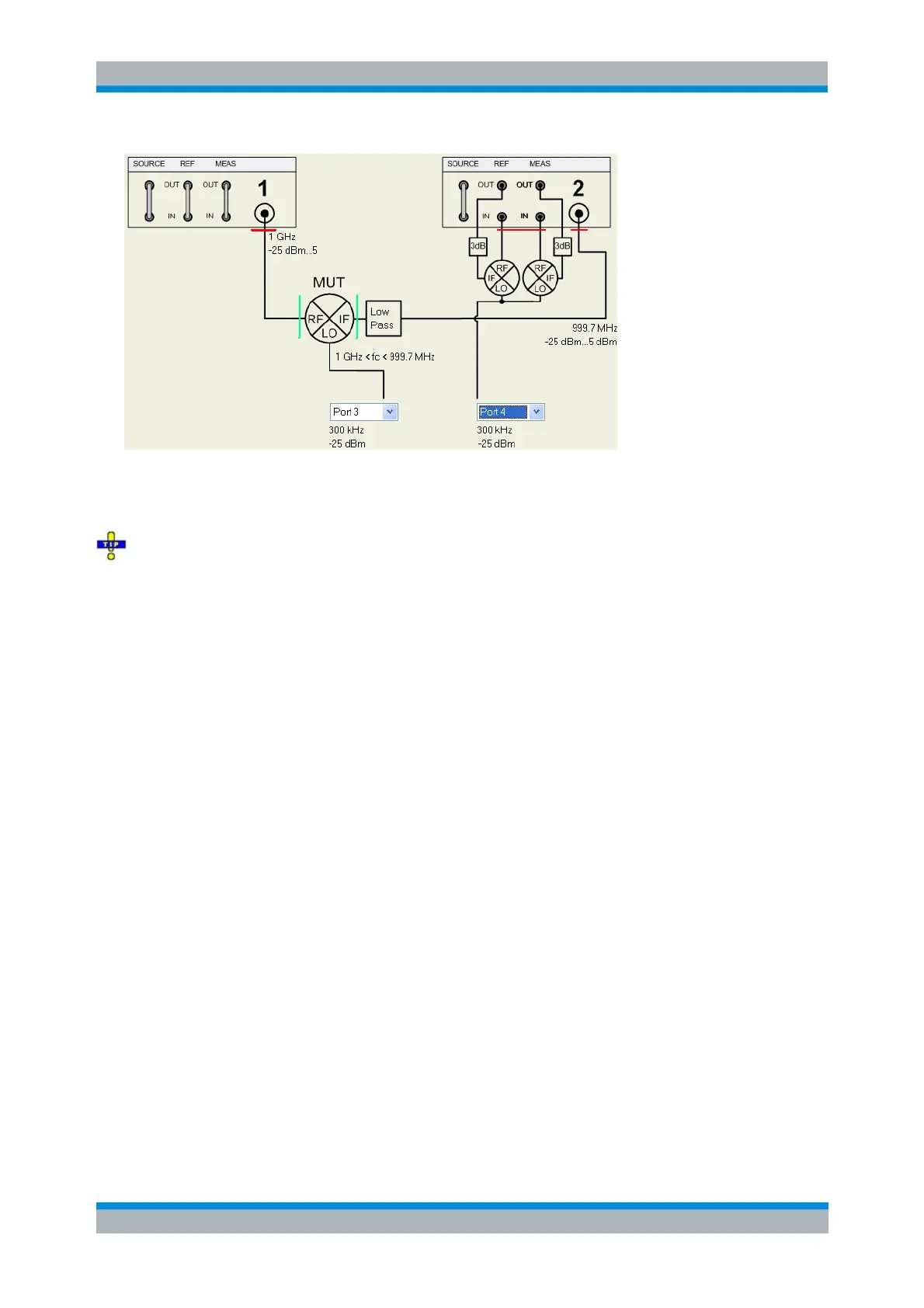

The mixer vector calibration corresponds to a 2-port UOSM calibration where the unknown through
standard is replaced by an unknown calibration mixer. In analogy to the unknown through standard used
for UOSM calibration, the calibration mixer must be reciprocal (S
21
= S
12
).
If your mixer under test is reciprocal, you can also use it as a calibration mixer.
Remote
control:
[SENSe<Ch>:]CORRection:COLLect:METHod:DEFine
"<cal_name>", UOSM, <port_no>[,<port_no>][,<port_no>][,<port_no>]
[SENSe<Ch>:]CORRection:COLLect[:ACQuire]:SELected
UTHRough,<port_no>,<port_no>[, <Dispersion>, AUTO | <delay | phase>]
See also calibration wizard description.
Calibration Unit...
Opens a dialog for automatic vector mixer calibration using the connected calibration unit.
