Relation to trigger settings
In triggered measurements, Alternate has no effect if the triggered measurement sequence is identical to

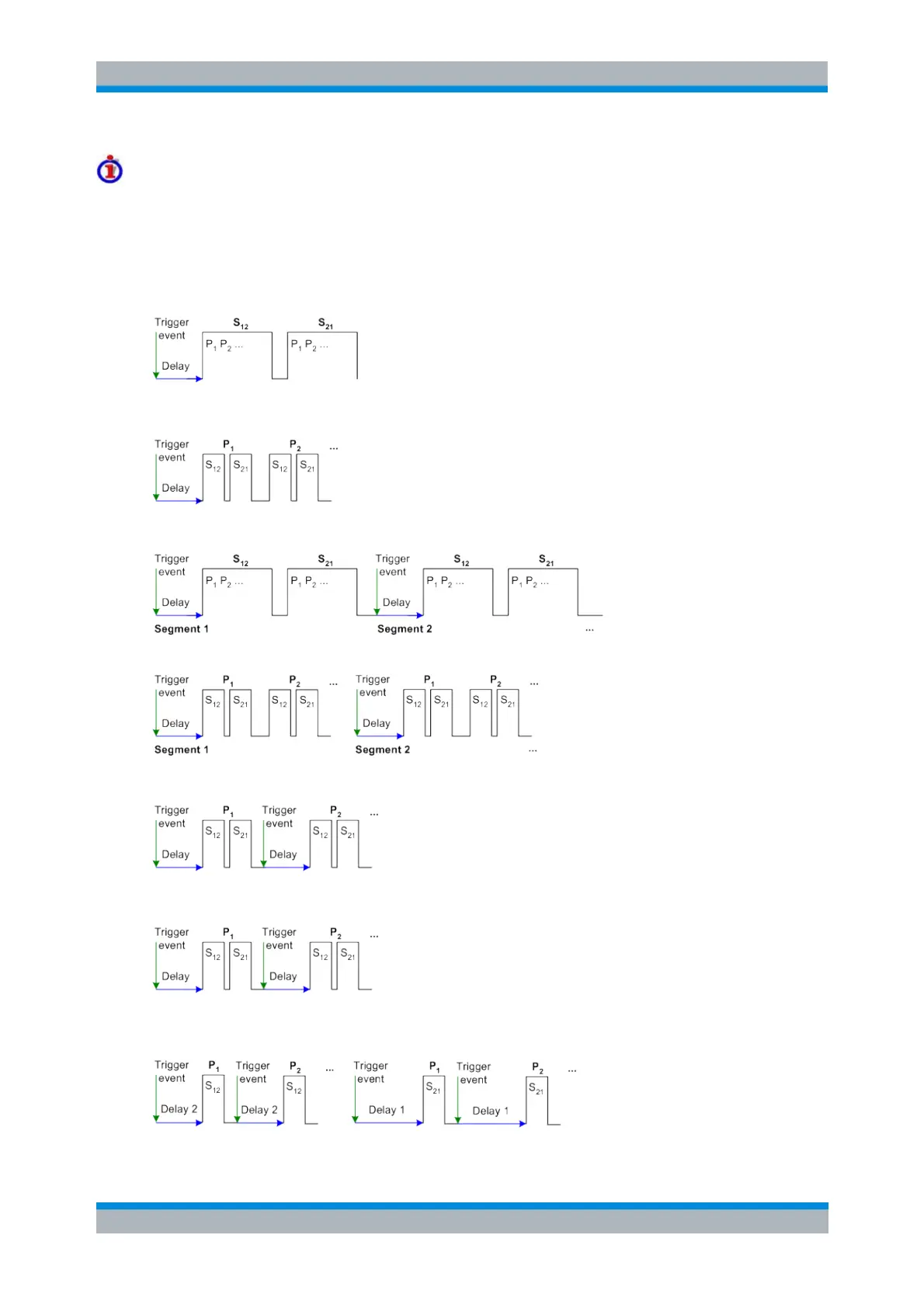

a single sweep point. The following table shows how the analyzer performs a sweep comprising m sweep
points, assuming that each of them requires n partial measurements.
 Sweep, Alternate On
Trigger event starts n partial sweeps over all sweep points. For a 2-port transmission
measurement comprising two partial measurements (S
12
and S
21
):
Sweep, Alternate Off
Trigger event starts m complete measurements at consecutive sweep points. For a 2-port
transmission measurement comprising two partial measurements (S
12
and S
21
):
 Sweep Segment, Alternate On
Trigger event starts n partial sweeps over the next segment.
Sweep Segment, Alternate Off
Trigger event starts complete measurements at all consecutive sweep points in the segment.
 Point, Alternate On
All partial measurements of each sweep point are carried out one after another.
Point, Alternate Off
Same as Alternate On: All partial measurements of each sweep point are carried out one after
another.
 Partial Measurement, Alternate On
Each partial measurement is carried out for all sweep points. Source port specific trigger delays
are supported.
Partial Measurement, Alternate Off
