Pulse Generators tab
The Pulse Generators tab allows to set up the pulse generators (same as Channel > Mode > Pulse
Generator) and presents the settings of the Define Pulse Generator and Define Sync Generator dialogs,
which configure the pulse and sync generator of the analyzer. The Trigger Delay setting is mirrored from
the Trigger Settings dialog.

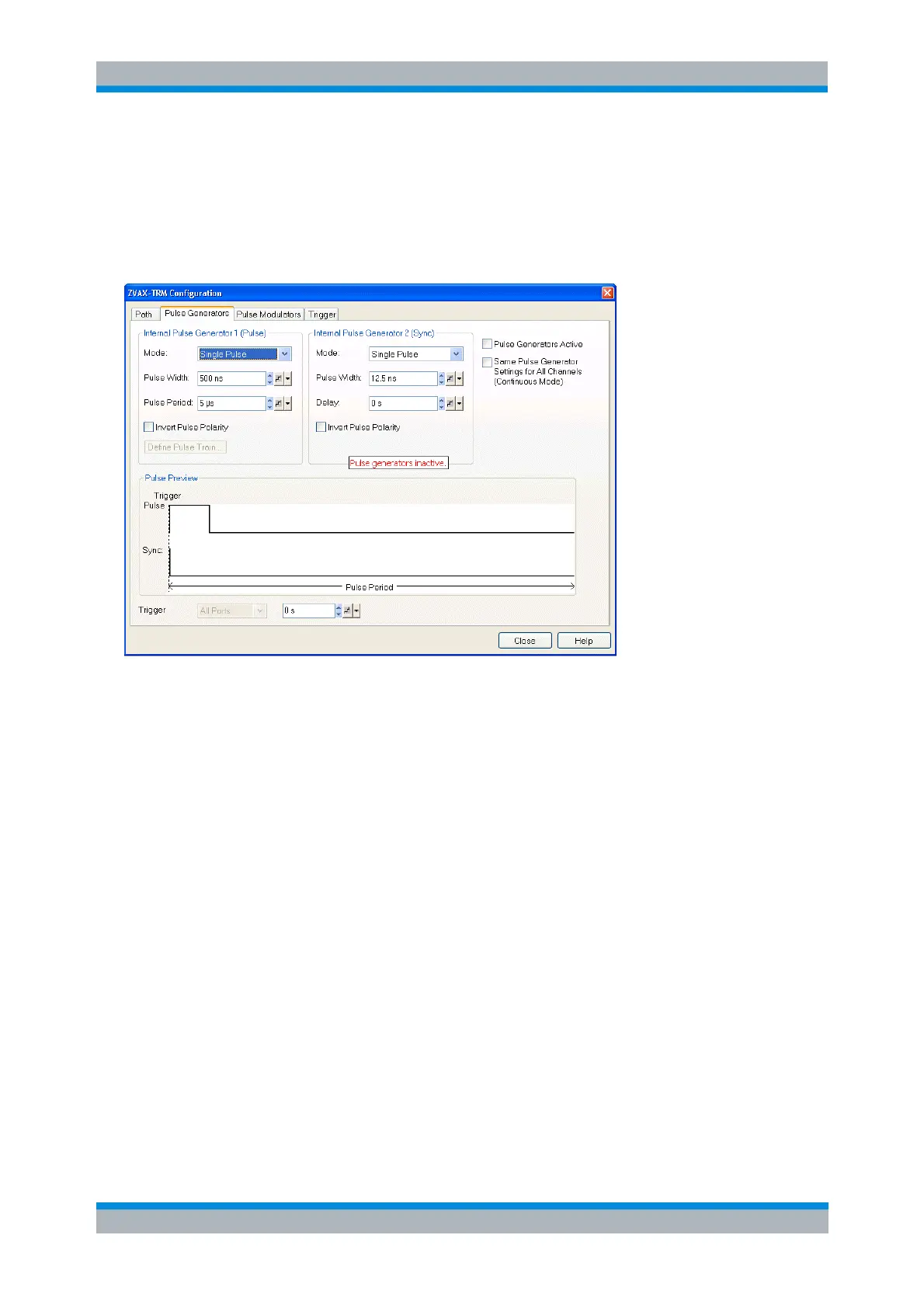

The Pulse Preview section in the lower part of the Pulse Generators tab presents a preview of the timing
between the two pulse generator signals that are made available to the R&S ZVAX-TRM via the
CASCADE connection. If the pulse generators are switched off (Pulse Generators Active deselected) this
is indicated by a "Pulse generators inactive" tooltip. A tooltip is also displayed if the width of the pulse or
sync signal is longer than the pulse (train) period.
Pulse Modulators tab
The Pulse Modulators tab allows to select the pulse generator signals
to be used as input for the pulse modulators on RF paths 1, 2 and 3
to be output at the EXT PULSE GENERATOR OUT ports of the extension unit
Any available generator signal from CASCADE IN (Internal Pulse Generator) or EXT PULSE
GENERATOR IN (External Pulse Generator) may be selected.
