R&S ZVB - Page 296

R&S
®
ZVA / R&S
®
ZVB / R&S
®
ZVT GUI Reference
Channel Menu
Operating Manual 1145.1084.12 – 30 281

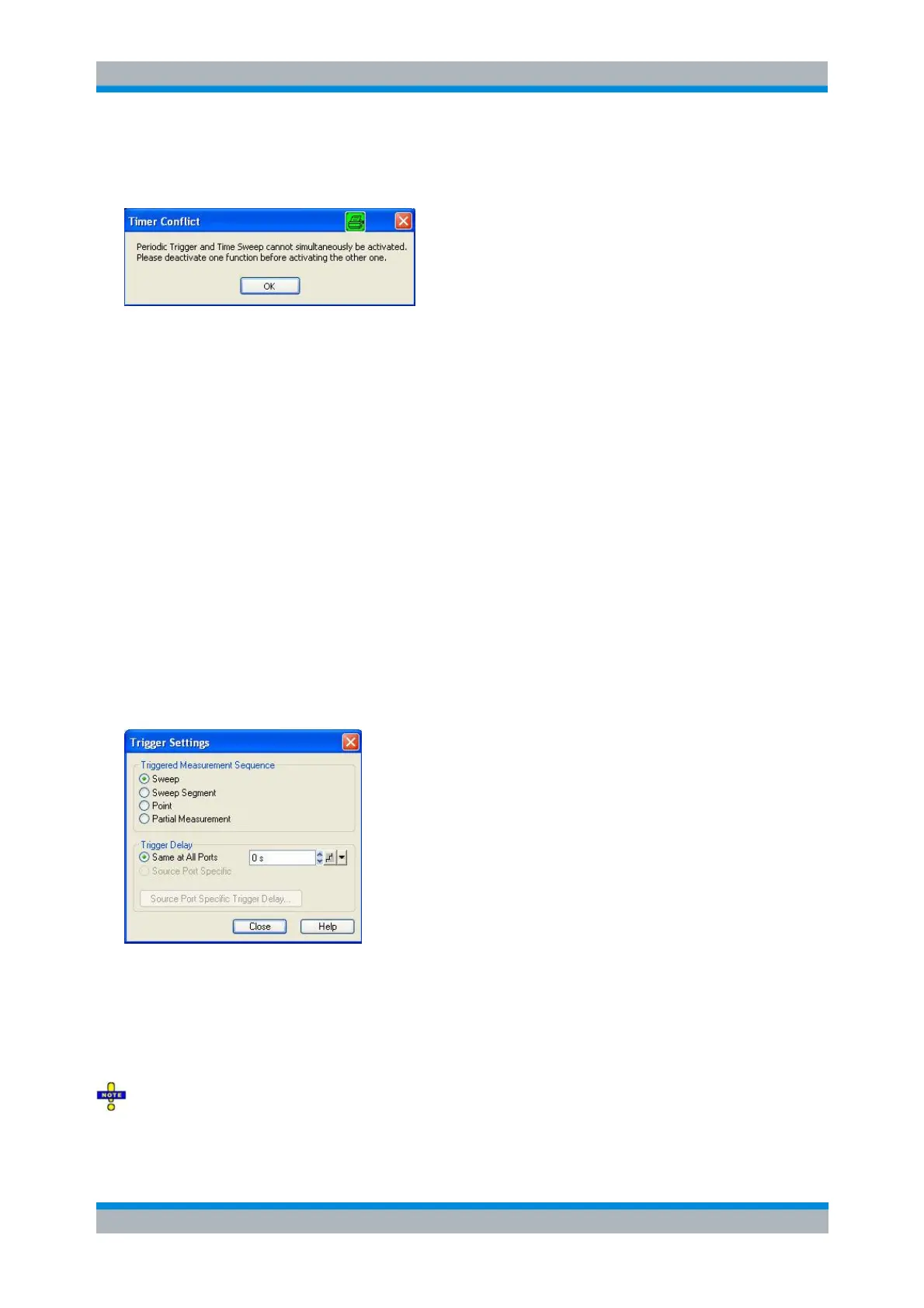

The periodic trigger is incompatible with Time sweeps: If a Time sweep is selected while the periodic
trigger is active, the analyzer generates an error message:
To continue, click OK and select any other trigger or sweep type (e.g. CW Mode).
Remote control:
TRIGger[:SEQuence]:SOURce TIMer
TRIGger[:SEQuence]:TIMer
Manual
In Manual trigger mode the trigger signal is generated on pressing the Manual Trigger softkey. Manual
Trigger is disabled unless manual trigger mode is active.
Remote control:
TRIGger[:SEQuence]:SOURce MANual
*TRG
Trigger Settings
Trigger Settings opens a dialog to specify the operation that the analyzer carries out after receiving a
trigger event.
The dialog is divided into the following panels (for a detailed description refer to the following sections):
 Triggered Meas. Sequence selects the measurement cycle or sequence of actions to be triggered.
 Trigger Delay specifies a delay time between the trigger event and the start of the measurement.
If the triggered measurement sequence is a Partial Measurement, it is possible to define source
port-specific trigger delays.
Some trigger settings are incompatible with other measurement settings; see below.
