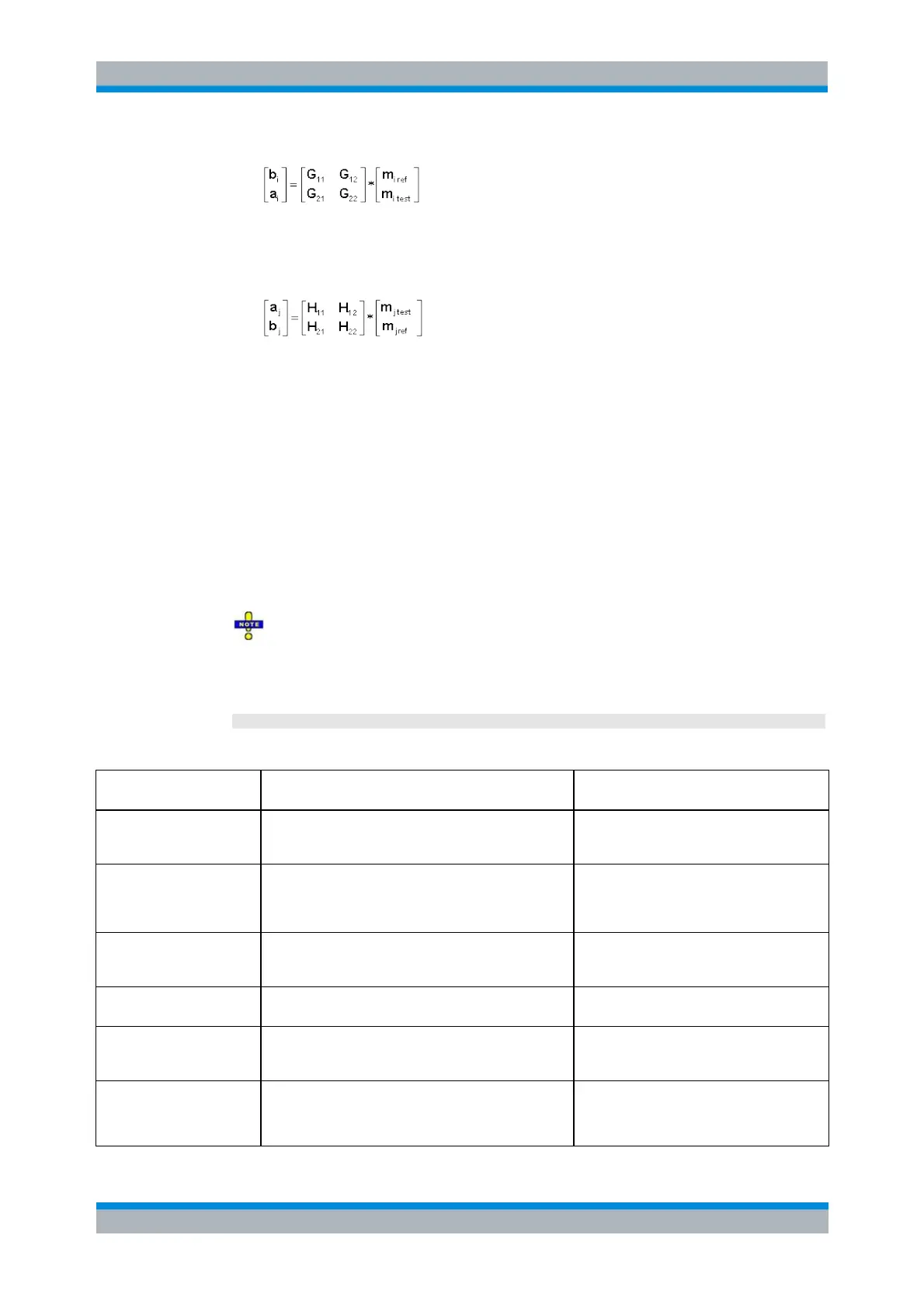

 The error two-port P
H
is assigned to port j of the analyzer. Its transmission
matrix H describes how the system errors modify the measured incident and
outgoing waves at port j:
In the two equations above, a and b denote the waves at the calibrated reference
plane i and j (e.g. the input and output of the 2-port DUT). The m waves are the raw
measured waves of test port i and j. The subscripts "ref" and "test" refer to the
reference and test receivers, respectively.
During the calibration the network analyzer acquires ratios of wave quantities, which
leaves one of non-diagonal matrix elements of G or H as a free normalization factor.
The network analyzer uses the normalization H
21
= 1.
*RST value
–
The analyzer provides a default calibration corresponding to a test setup which does
not introduce any systematic errors; see
[SENSe<Ch>:]CORRection:COLLect:SAVE:DEFault.
SCPI,
Command
Types
Device-specific, command or query
After a system error correction in one of the sweep types Power, Time, or CW
Mode, the query returns two sets of correction data, corresponding to the fixed CW
frequency and the CW frequency plus 1 Hz (minus 1 Hz if the CW frequency is equal
to the maximum frequency of the analyzer).
Example:
See [SENSe<Ch>:]CORRection:COLLect:SAVE:DEFault.
The different calibration types of the analyzer provide the following error terms:
Calibration type
Parameter in
[SENSe<Ch>:]CORRection:COLLect:METHod
Available error terms (depending on port
numbers)
One-port normalization
(reflection) using an open
standard
REFL1
REFL2
REFL12
'SCORR3'
'SCORR9'
'SCORR3' and 'SCORR9'
Full one port
FOPort1
FOPort2
FOPort12
'SCORR1' to 'SCORR3'
'SCORR7' to 'SCORR9'
'SCORR1' to 'SCORR3' and 'SCORR7' to
'SCORR9'
Two-port normalization
FTRans
RTRans
FRTRans
'SCORR6'
'SCORR12'
'SCORR6' and 'SCORR12'
One path two port
FOPTport
ROPTport
'SCORR1' to 'SCORR3', 'SCORR6'
'SCORR7' to 'SCORR9', 'SCORR12'
TOSM
TOSM
'SCORR1' to 'SCORR12'
(at present the isolation terms 'SCORR4'
and 'SCORR10' are not included)
TOM, TRM, TRL, TNA
TOM | TRM | TRL | TNA
'DIRECTIVITY', 'SRCMATCH',
'REFLTRACK', 'LOADMATCH',
'TRANSTRACK' (for reading and writing)
'G11' ... 'G22' and 'H11', 'H12', 'H22' (for
