Renesas M32R/ECU Series User Manual

10
10-57
MULTIJUNCTION TIMERS
10.2 Common Units of Multijunction Timers
32180 Group User’s Manual (Rev.1.0)

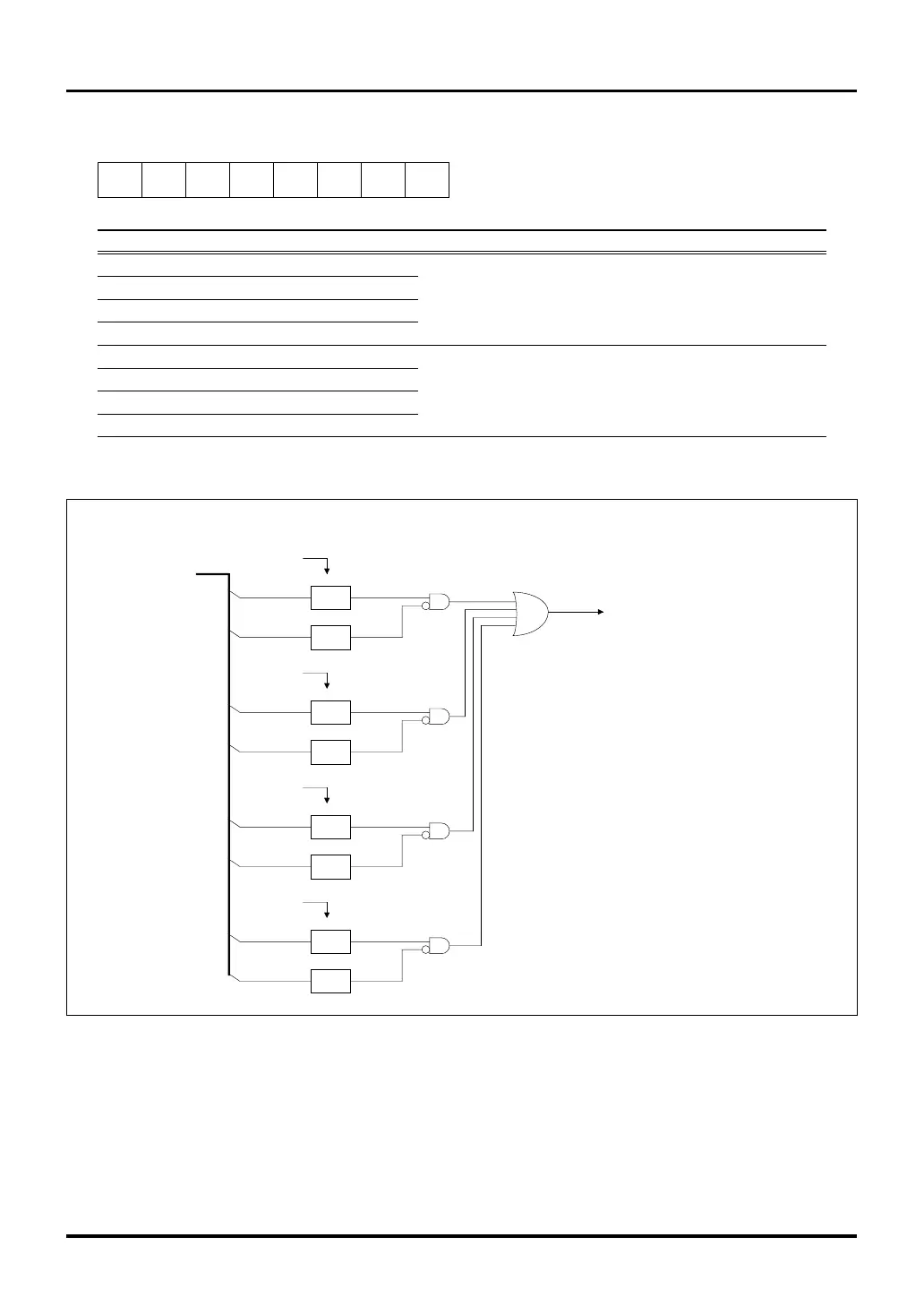

TIN30–33 Interrupt Request Mask & Status Register (TIN3033IMS) <Address: H’0080 023F>
9 1011121314b15b8
TINIM30TINIM31TINIM32TINIM33TINIS30TINIS31TINIS32TINIS33
00000000
<After reset: H’00>
b Bit Name Function R W
8 TINIS33 (TIN33 interrupt request status bit) 0: Interrupt not requested R(Note 1)
9 TINIS32 (TIN32 interrupt request status bit) 1: Interrupt requested
10 TINIS31 (TIN31 interrupt request status bit)
11 TINIS30 (TIN30 interrupt request status bit)
12 TINIM33 (TIN33 interrupt request mask bit) 0: Enable interrupt request R W
13 TINIM32 (TIN32 interrupt request mask bit) 1: Mask (disable) interrupt request
14 TINIM31 (TIN31 interrupt request mask bit)
15 TINIM30 (TIN30 interrupt request mask bit)
Note 1: Only writing "0" is effective. Writing "1" has no effect; the bit retains the value it had before the write.
Note: • TIN24–TIN29 do not have interrupt functions, so that their status and mask registers are nonexistent.
TIN30–33 input interrupt request
IRQ18
Data bus
b8
TINIS33
F/F
TINIM33
F/F
b12
b9
TINIS32
F/F
TINIM32
F/F
b13
b10
TINIS31
F/F
TINIM31
F/F
b14
b11
TINIS30
F/F
TINIM30
F/F
b15
(Level)
4-source inputs
TIN3033IMS <H'0080 023F>
TIN33edge
TIN32edge
TIN31edge
TIN30edge
Figure 10.2.18 Block Diagram of TIN30–33 Input Interrupt Request
