ELECTRICAL CHARACTERISTICS
32180 Group User's Manual (Rev.1.0)
Notes: • For signal-to-signal timing, see Figure 21.7.8, "Read Timing (Relative to Read Pulse),"
and Figure 21.7.9, "Write Timing (Relative to Write Pulse)."
• When using the threshold switching function, the data input and WAIT# voltage levels are
determined with respect to the rated minimum and maximum values for VIH and VIL.
BCLK
[16]
tc(BCLK)
Data output
(DB0–DB15)
Address
(A11–A30)
BLW#
BHW#
CS#
(Access area)
WAIT#
0.43VCC-BUS
0.16VCC-BUS
[19] td(BCLKH-A)
0.43VCC-BUS
[17] tw(BCLKH)
[21] tv(BCLKH-A)
[18] tw(BCLKL)
[20] td(BCLKH-CS) [22] tv(BCLKH-CS)
[22] tv(BCLKH-CS)
[24] tv(BCLKH-RDL) [92] td(BCLKH-RDL)
0.16VCC-BUS
0.43VCC-BUS
0.16VCC-BUS
[23] td(BCLKL-RDL)
[20] td(BCLKH-CS)
0.43VCC-BUS
0.16VCC-BUS
[32] th(BCLKH-D) [31] tsu(D-BCLKH)
[26] tv(BCLKL-BLWL)
tv(BCLKL-BHWL)
[28] tv(BCLKH-D)
[30] tpxz(BCLKH-DZ)
[29] tpzx(BCLKL-DZ)
[27] td(BCLKL-D)
[33] tsu(WAITL-BCLKH) [34] th(BCLKH-WAITL)
[79] th(BCLKH-WAITH) [78] tsu(WAITH-BCLKH)
[25] td(BCLKL-BLWL)
td(BCLKL-BHWL)
0.16VCC-BUS
0.43VCC-BUS
0.16VCC-BUS
0.43VCC-BUS
0.16VCC-BUS
0.16VCC-BUS
0.43VCC-BUS
CS#
(Non-access area)
RD#
Data input
(DB0–DB15)
[97] td(BCLKL-BLWH)
td(BCLKL-BHWH)
21.7 A.C. Characteristics (when VCCE = 5 V)

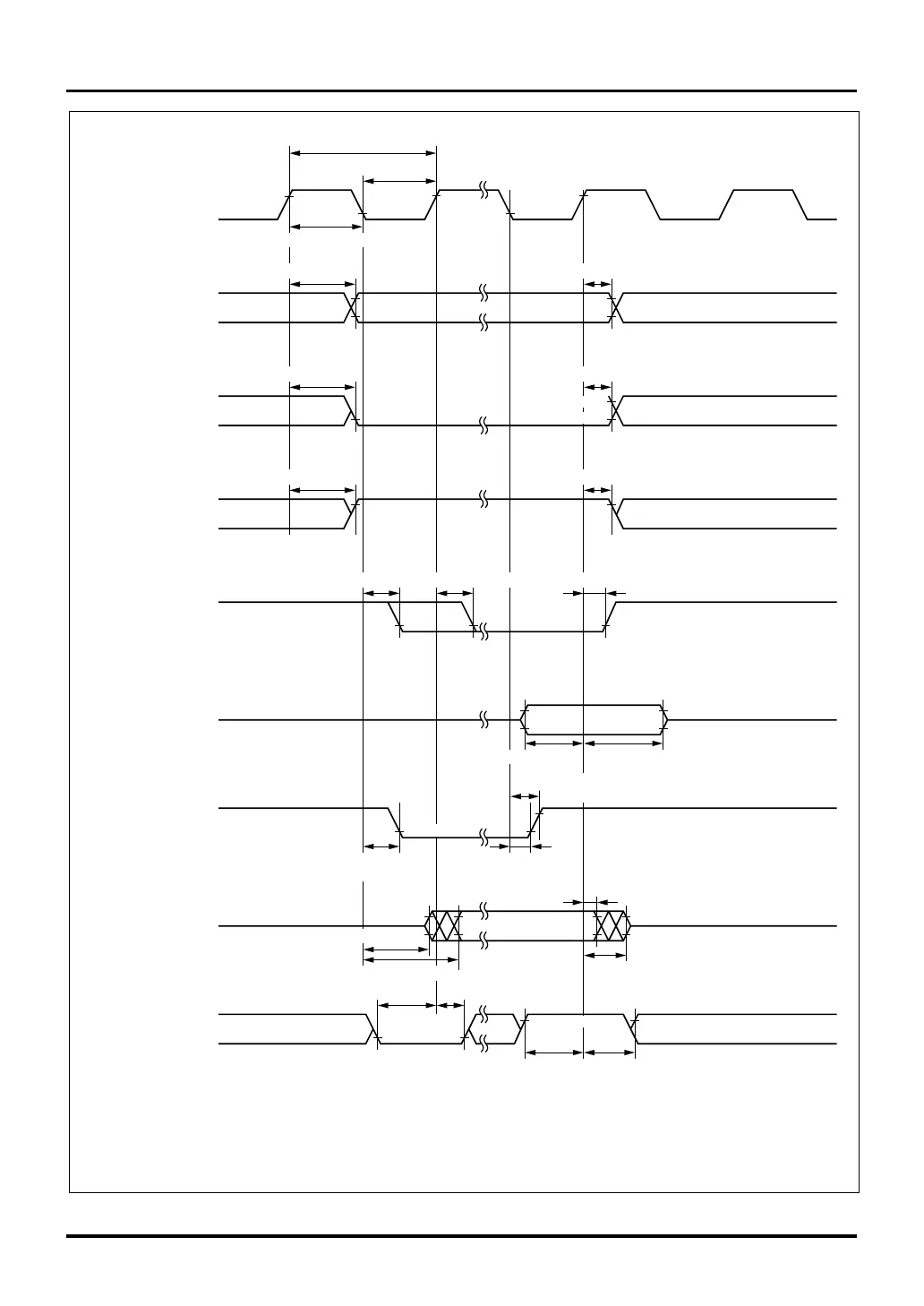

Figure 21.7.6 Read and Write Timing (Relative to BCLK) with 1 or More Wait States
