SATO CL4NX Plus User Manual

IEEE1284 Interface Connection (Standard)
106
• To use the RS-232C interface to connect with the computer, the product's [Tools] >
[Barcode Checker] > [Test] > [Interface] menu must be set to [RS-232C].
• The interface settings of the computer can be confirmed by the following. In the Device
Manager, right-click [Ports] > [Communications Port (COM1)] and select [Properties].
Then, check the [Port Settings] tab of the displayed Properties screen.

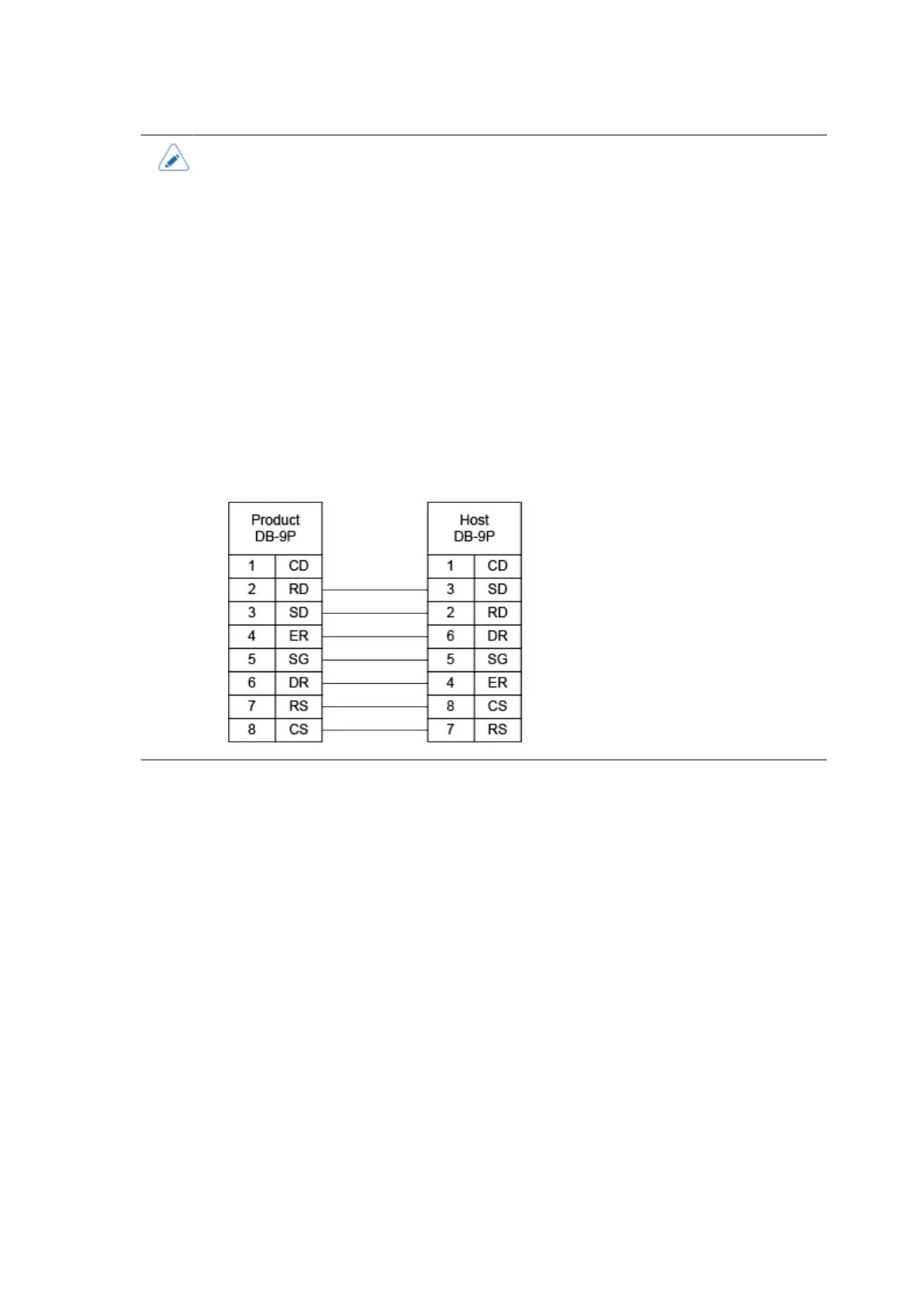

• For the RS-232C cable, note that the connection cable varies according to the
communication protocol setting. If you use the wrong cable, it will not operate correctly.
• If the communication settings differ between the computer and product, it will not
operate correctly. A communication error will be detected.
• To use the printer driver, the communication protocol must be set to Status4. (The
initial value for the communication protocol for the product's RS-232C interface is
STATUS4.)
• Be sure to use the recommended RS-232C cable.
• Printing using the USB serial conversion cable is not guaranteed. Also, no support for
the connection procedure is provided.
IEEE1284 Interface Connection (Standard)
Connect the interface cable when the product is powered off.
Connect the IEEE1284-compliant cable to the IEEE1284 connector (1) of the product.

SATO CL4NX Plus Specifications

General

Display type	LCD
Product color	Black
Built-in display	Yes
Display diagonal	3.5 \
Type	POS printer
Color	No
Print speed	14 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	305 x 305 DPI
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Maximum media length	600 mm
Maximum roll diameter	254 mm
Supported paper width	39.5 - 128 mm
Maximum printing width	128 mm
Printing media thickness	0.06 - 0.268 µm
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Wi-Fi	-
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0+HS
Standard interfaces	Bluetooth, Ethernet, RS-232C, Serial, USB 2.0
Serial interface type	RS-232C
USB 2.0 ports quantity	3
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	271 mm
Width	457 mm
Height	321 mm
Weight	15100 g
