Notes on the Stop/Cut Position of Different Media
606
Notes on the Stop/Cut Position of Different Media

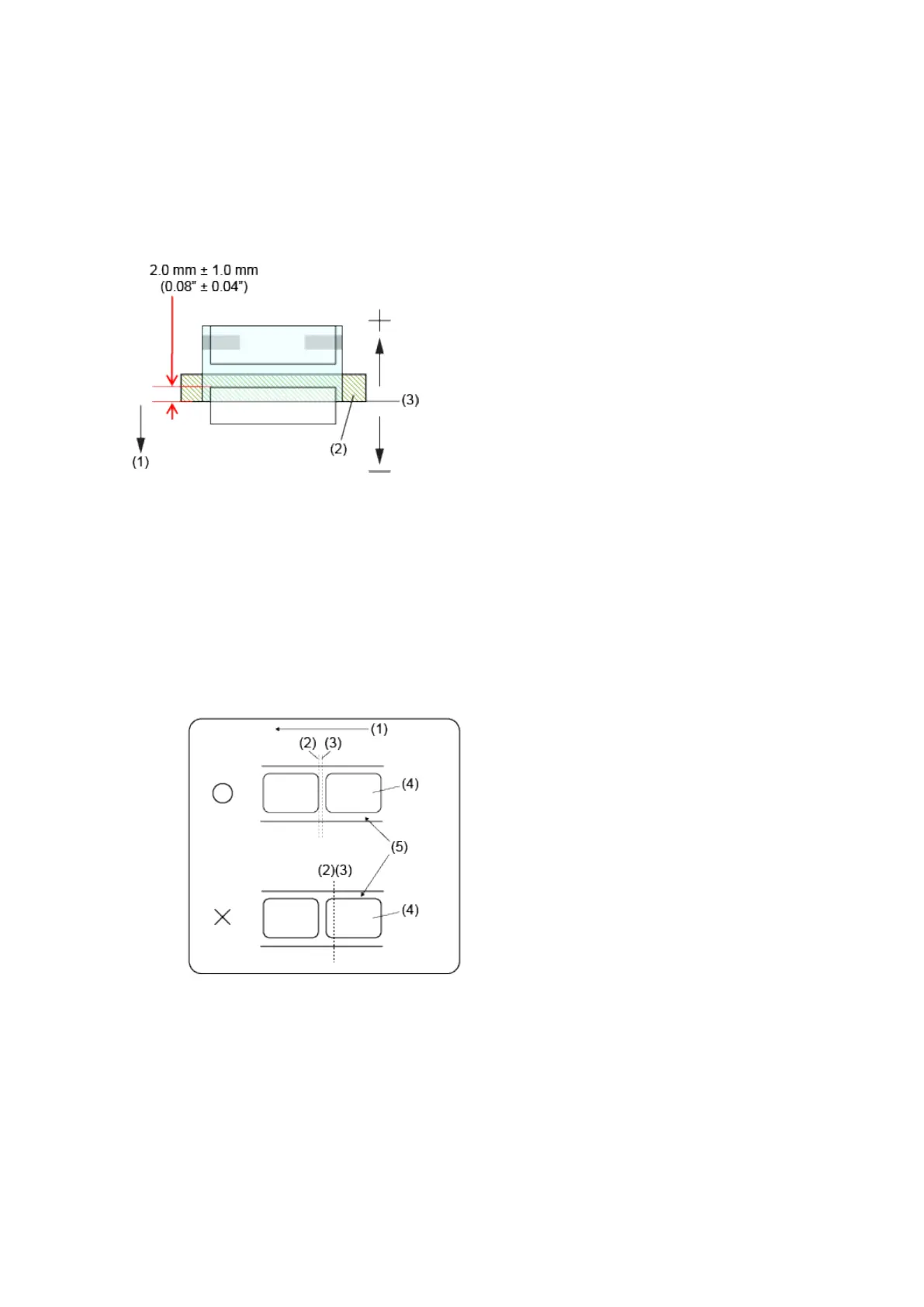

Stop Position of the Label in Dispenser Mode
The regular position is to let the label stay about 2 ± 1 mm (0.08" ± 0.04") on the liner.
(1) Feed direction
(2) Dispenser bar
(3) Stop position
Cut Position When Using the Label in Cutter Mode
The regular cut position is between labels (only cut on the liner).
When you cut the label, the glue adheres to the blade of the cutter and the blade will decrease the
performance of the cutter. Adjust the cut position so as not to cut the label.
(1) Media feed direction
(2) Cut position (I-mark sensor)
(3) Cut position (Gap sensor)
(4) Label
(5) Liner
