SATO CL4NX Plus User Manual

[RS-232C]
356

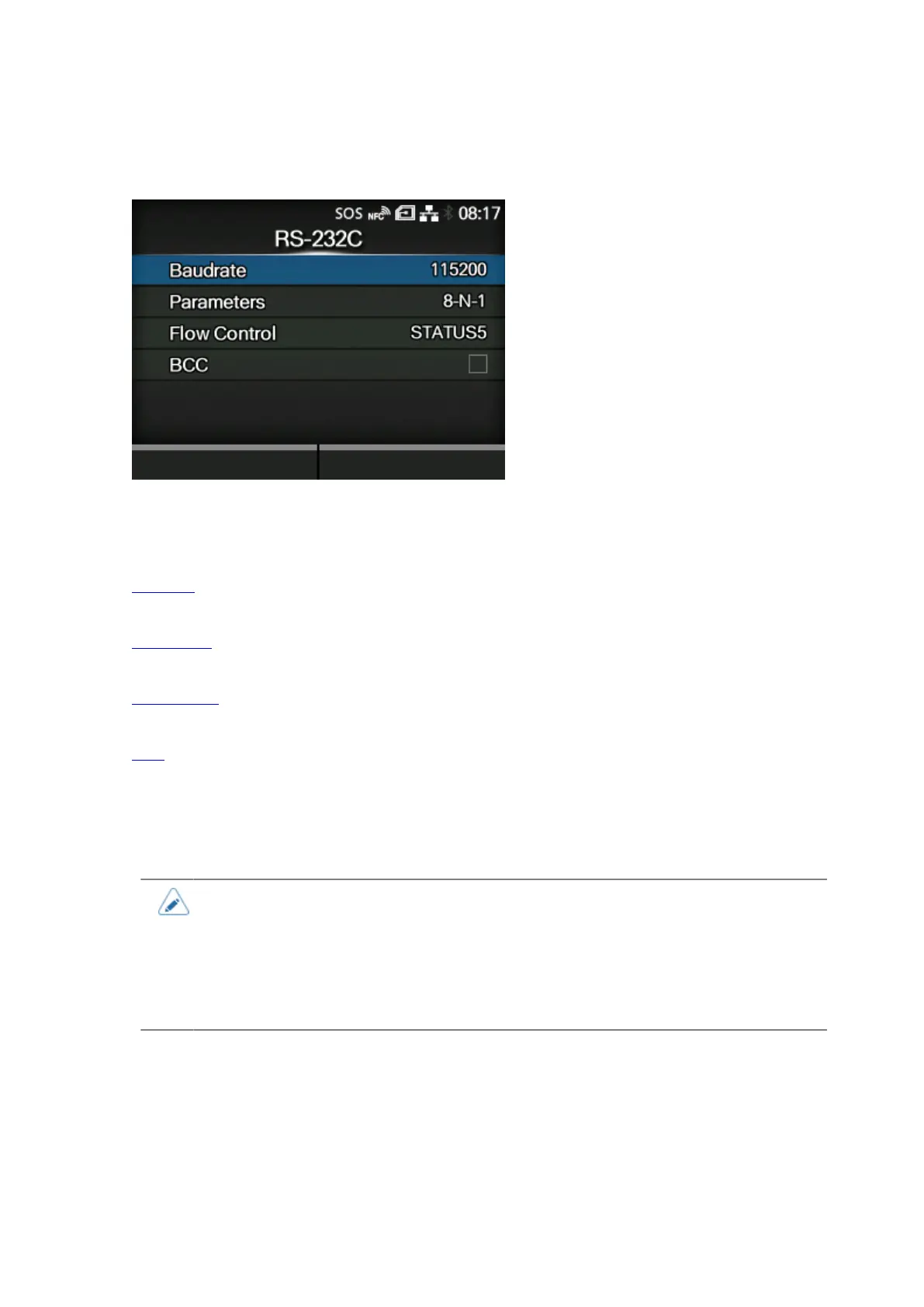

[RS-232C]
Set the RS-232C connection.
Appears only if the combo interface board is installed.
The setting items are as follows:
Baudrate
Set the communication speed.
Parameters
Set the data parameters.
Flow Control
Set the communication protocol.
BCC
Set the BCC check function.
◦ Appears only if you have selected [STATUS5] in the [Flow Control] menu.
• When [Tools] > [Barcode Checker] > [Settings] > [Mode] is set to other than [Disabled],
the following messeage appears on the screen.
"Reader is set for RS232C connection destination. Please check the setting of barcode
checker."
• When [Tools] > [Barcode Checker] > [Test] > [Interface] is set to [RS-232C Reader],
you cannot change the [RS-232C] menus.

SATO CL4NX Plus Specifications

General

Display type	LCD
Product color	Black
Built-in display	Yes
Display diagonal	3.5 \
Type	POS printer
Color	No
Print speed	14 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	305 x 305 DPI
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Maximum media length	600 mm
Maximum roll diameter	254 mm
Supported paper width	39.5 - 128 mm
Maximum printing width	128 mm
Printing media thickness	0.06 - 0.268 µm
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Wi-Fi	-
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0+HS
Standard interfaces	Bluetooth, Ethernet, RS-232C, Serial, USB 2.0
Serial interface type	RS-232C
USB 2.0 ports quantity	3
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	271 mm
Width	457 mm
Height	321 mm
Weight	15100 g
