SATO CL4NX Plus User Manual

[STCL]
402
Disabled
Do not save the user format data registered at printing in the product. The user format data
remains in the product memory after printing until the product is powered off. You need to register
a user format again after reboot.

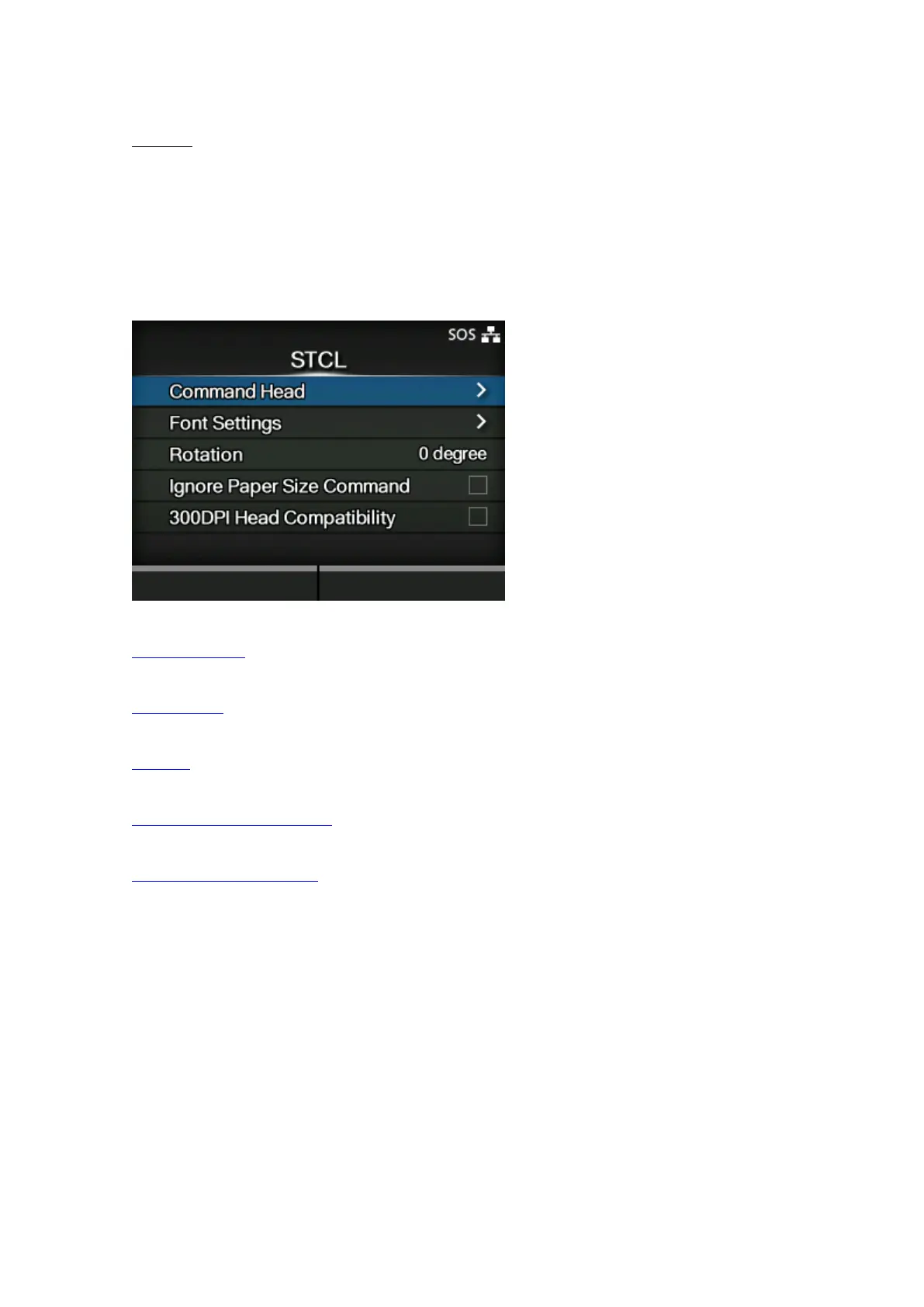

[STCL]
To use STCL as a printer command, set the following items:
Command Head
Set the command head.
Font Settings
Set the font.
Rotation
Set the page orientation for label printing.
Ignore Paper Size Command
Set whether to ignore a paper size command in the print data.
300DPI Head Compatibility
When you are using the product with 305 dpi resolution, enable or disable 300DPI Head
Compatibility.

SATO CL4NX Plus Specifications

General

Display type	LCD
Product color	Black
Built-in display	Yes
Display diagonal	3.5 \
Type	POS printer
Color	No
Print speed	14 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	305 x 305 DPI
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Maximum media length	600 mm
Maximum roll diameter	254 mm
Supported paper width	39.5 - 128 mm
Maximum printing width	128 mm
Printing media thickness	0.06 - 0.268 µm
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Wi-Fi	-
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0+HS
Standard interfaces	Bluetooth, Ethernet, RS-232C, Serial, USB 2.0
Serial interface type	RS-232C
USB 2.0 ports quantity	3
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	271 mm
Width	457 mm
Height	321 mm
Weight	15100 g
