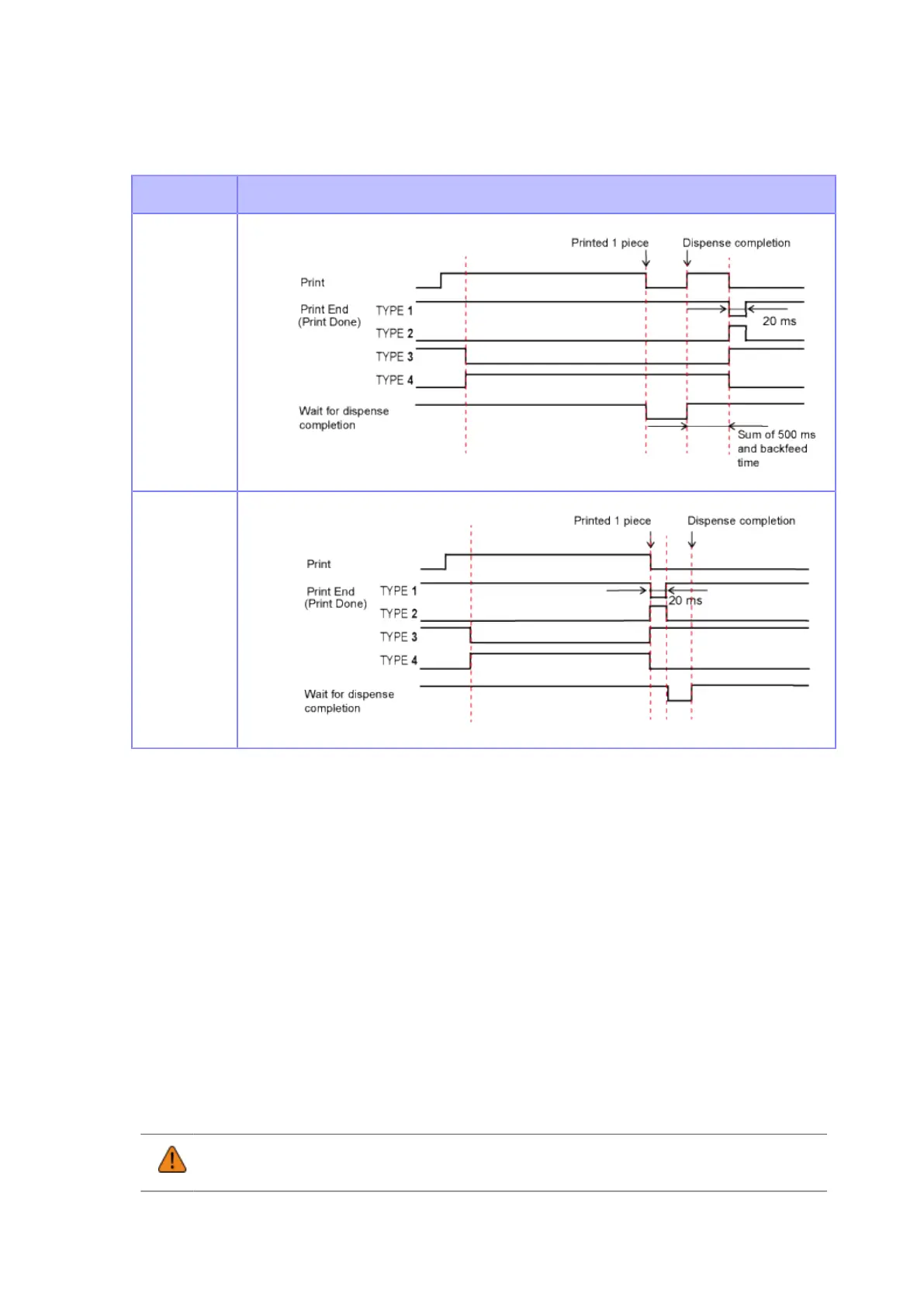

Timing Chart of the Wait Signal for Dispense Completion
Item Output Waveform
Backfeed
After Print
Backfeed
Before Print
1. When the wait signal for dispense completion is enabled, note that the output timing of the print
end signal (print done) differs between Backfeed After Print and Backfeed Before Print.
a. In Backfeed After Print, the print end signal (print done) is output after the label waiting for
dispense is removed and the product backfeeds to the print start position.
b. In Backfeed Before Print, the print end signal (print done) is output after the product feeds the
label to the dispense position.
2. "Printed 1 piece" includes the operation of the product feeding the label to the dispense position
after printing.
Wireless LAN Interface
This interface complies with the IEEE802.11a/b/g/n standard.
• Before using wireless LAN near medical devices and facilities, consult your system
administrator.
