SATO CL4NX Plus User Manual

Internal View
30
(8) AC input terminal
Supplies power to the product through the inserted power cord.
Before connecting, make sure that the AC voltage of your region is in the range of AC 100 to 240
V, 50 to 60 Hz.

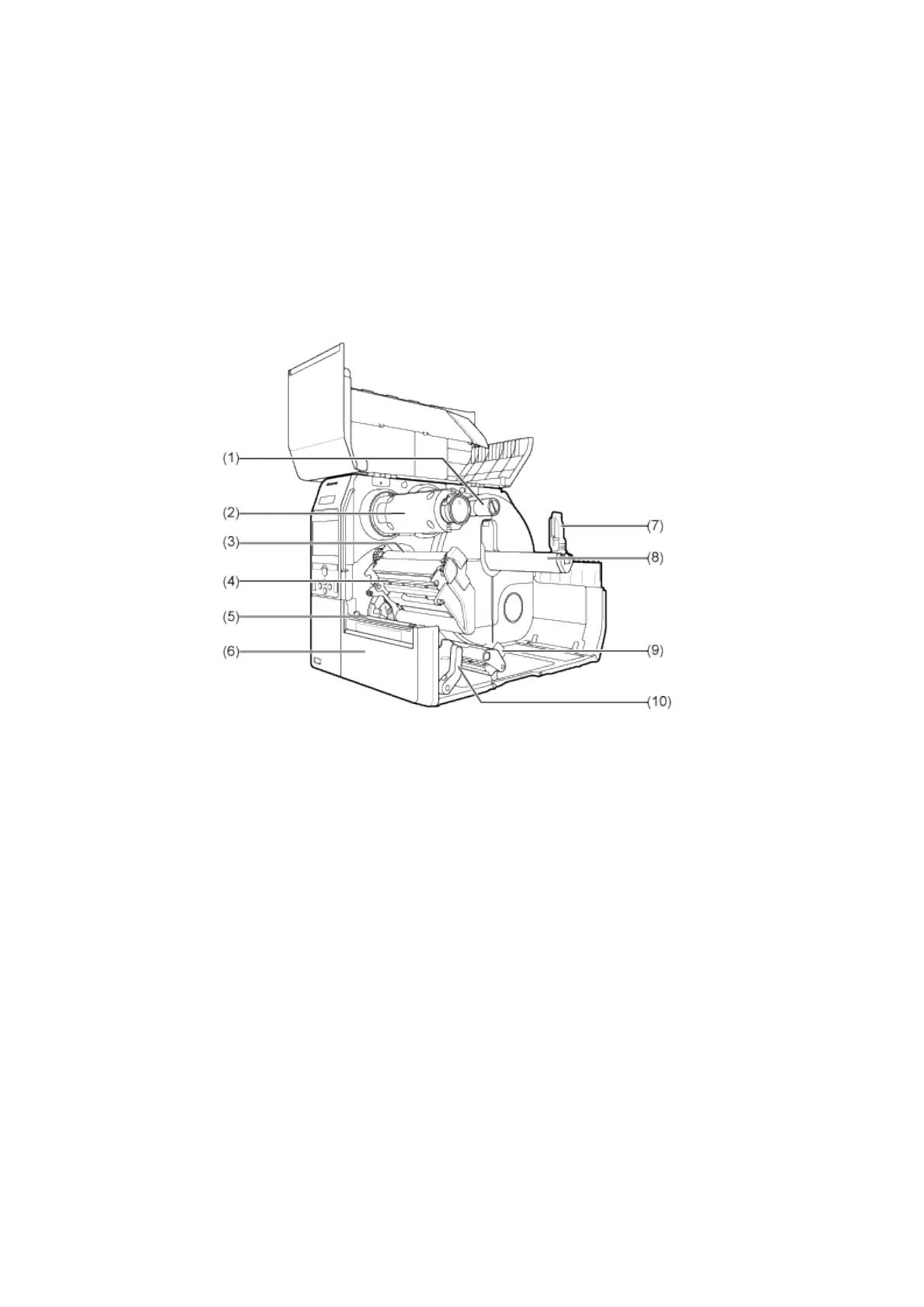

Internal View
(1) Ribbon supply spindle
(2) Ribbon rewind spindle
(3) Ribbon roller
(4) Print head (Consumables)
Creates an image directly on the media or by using a ribbon. Clean the print head regularly.
(5) Platen roller (Consumables)
(6) Front cover
(7) Media holder guide
Used to hold the media roll.
(8) Media roll holder
Used to hang the media roll to the bar.
(9) Media guide
(10) Head lock lever
Used to release the print head assembly.

SATO CL4NX Plus Specifications

General

Display type	LCD
Product color	Black
Built-in display	Yes
Display diagonal	3.5 \
Type	POS printer
Color	No
Print speed	14 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	305 x 305 DPI
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Maximum media length	600 mm
Maximum roll diameter	254 mm
Supported paper width	39.5 - 128 mm
Maximum printing width	128 mm
Printing media thickness	0.06 - 0.268 µm
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Wi-Fi	-
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0+HS
Standard interfaces	Bluetooth, Ethernet, RS-232C, Serial, USB 2.0
Serial interface type	RS-232C
USB 2.0 ports quantity	3
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	271 mm
Width	457 mm
Height	321 mm
Weight	15100 g
