Loading the Media Roll
168
Loading the Media
Precautions for Loading the Media
Use genuine SATO media and ribbons for the product, for optimum print quality.
• The print head and its surroundings are hot after printing. Be careful not to touch it, to
avoid being burned.
• Touching the edge of the print head with your bare hand could cause injury.
• The usable media sizes, the output speed and print quality vary depending on the
media specification, media and ribbon combination, product settings and outputting
environment. It is recommended to perform a test print with the media and ribbon to be
used in advance.
Loading the Media Roll

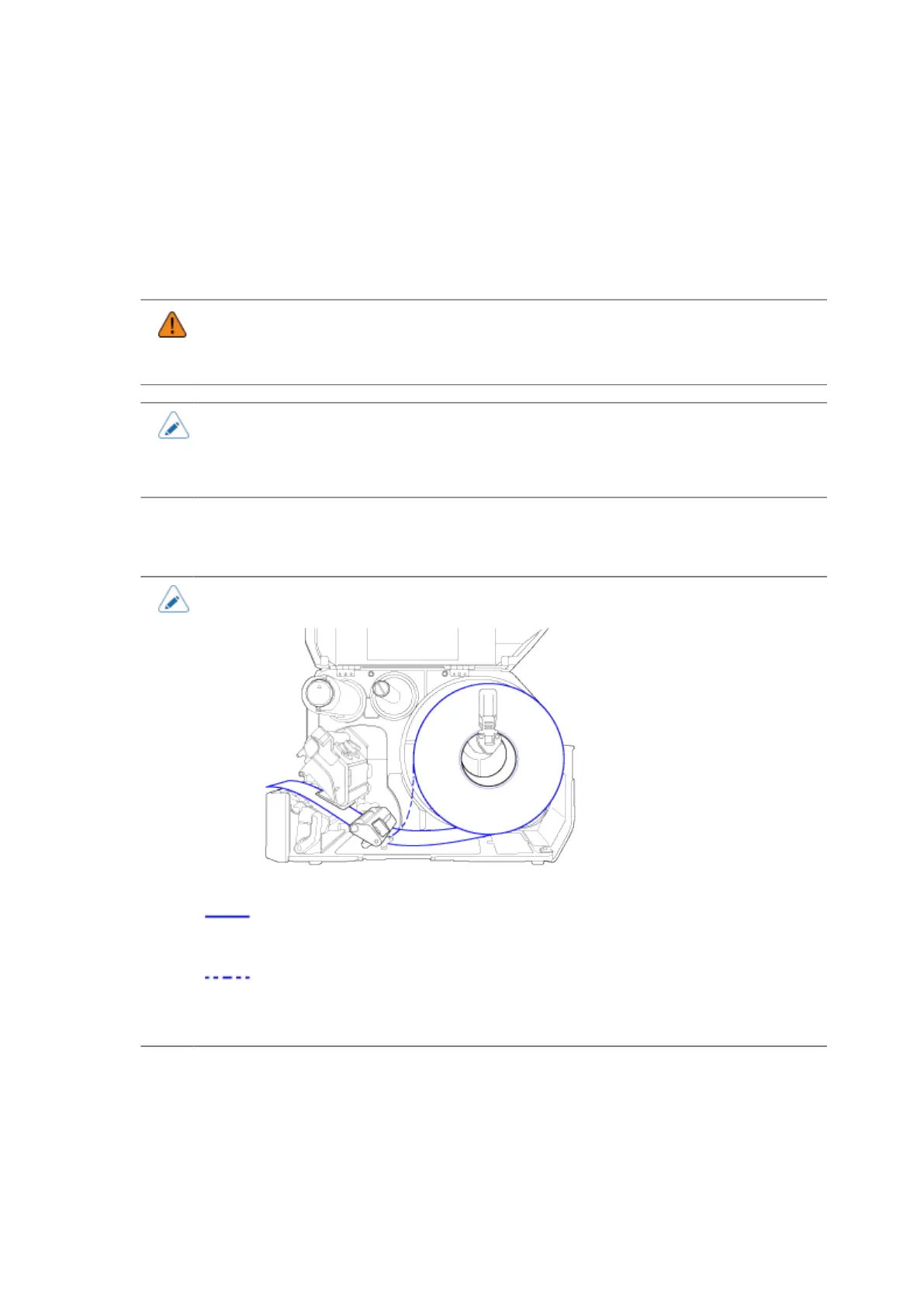

• The routing path of the media is shown in the below picture.
Face-in media
Face-out media
1. Open the top cover (1).

SATO CL4NX Plus Specifications

General

Display type	LCD
Product color	Black
Built-in display	Yes
Display diagonal	3.5 \
Type	POS printer
Color	No
Print speed	14 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	305 x 305 DPI
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Maximum media length	600 mm
Maximum roll diameter	254 mm
Supported paper width	39.5 - 128 mm
Maximum printing width	128 mm
Printing media thickness	0.06 - 0.268 µm
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Wi-Fi	-
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0+HS
Standard interfaces	Bluetooth, Ethernet, RS-232C, Serial, USB 2.0
Serial interface type	RS-232C
USB 2.0 ports quantity	3
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	271 mm
Width	457 mm
Height	321 mm
Weight	15100 g
