SATO CL4NX Plus User Manual

Pressure Balance Setting
618
Pressure Balance Setting
After adjusting the head pressure, if media feeding starts to shift to the right side when facing the
product, adjust the pressure balance referring to this procedure.
Set the pressure balance according to the media width to be used.
1. Open the top cover of the product.

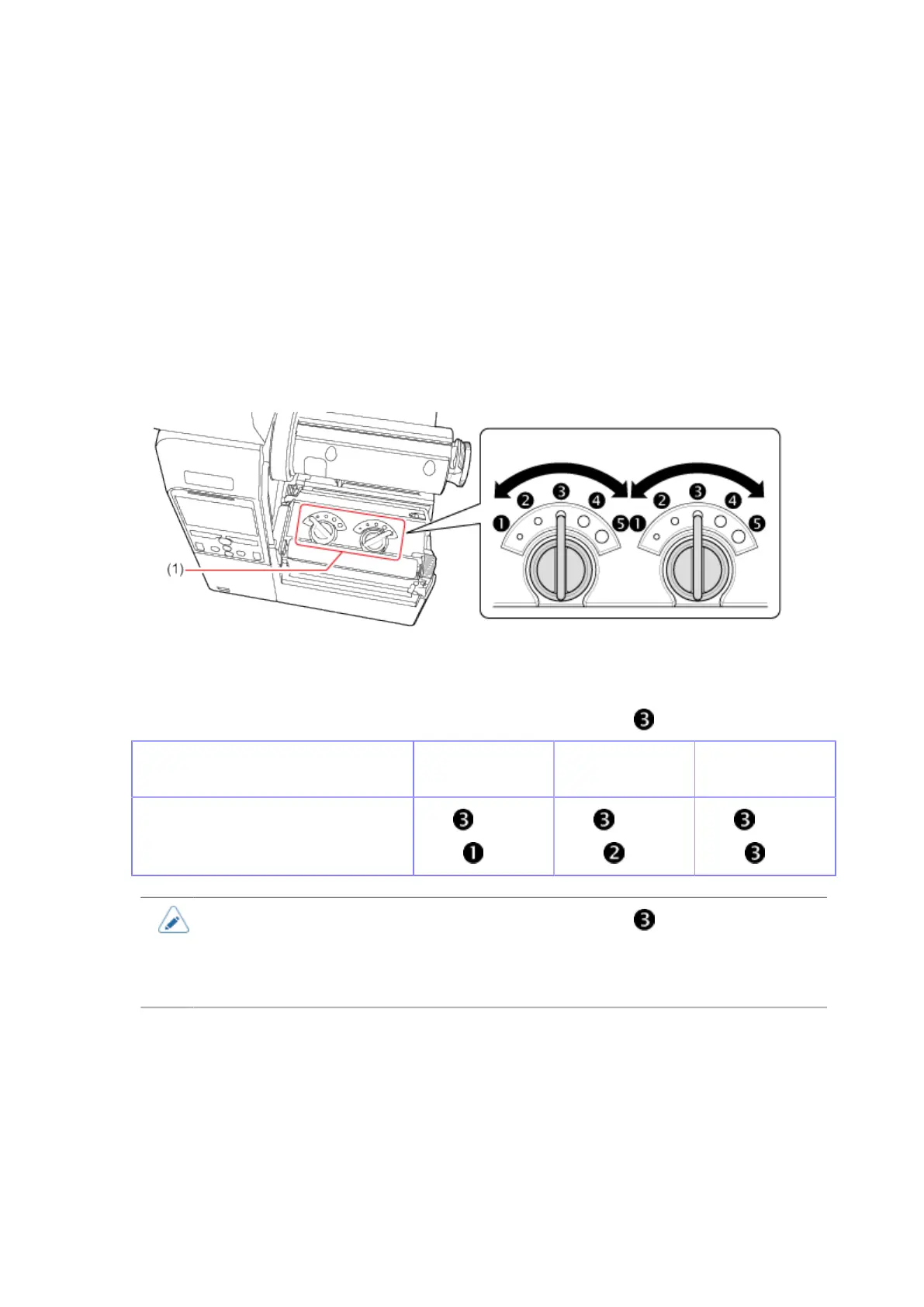

2. Find the adjustment dials (1) on the top of the print head assembly.
3. Turn the adjustment dials (1) according to the media width and set the pressure
balance.
The table below shows an example of when the head pressure is Left .
Media Width (mm (inch)) 25 - 54 (0.98" -
2.13")
54 - 83 (2.13" -
3.27")
83 - 131 (3.27" -
5.16")
Adjustment Dials
Left
Right
Left
Right
Left
Right
•
The factory default settings of both Left and Right dials are .
• The dial setting values in the table are only for reference, and the values may vary
depending on the media type. Be sure to check if the print quality is stable by actually
printing.
