External Signal (EXT) Interface
754
Connector Pin Specifications
Pin
No.
I/O Description
30 - PAPER EMPTY RETURN
31 Input INITIALIZE
32 Output FAULT
33-35 - Not in use
36 Input SELECT INPUT
Cable Specifications
Cable Connector Amphenol 36 pins, male
Cable Length 1.5 m (5 feet) or less
• Specifications are subject to change without notice.

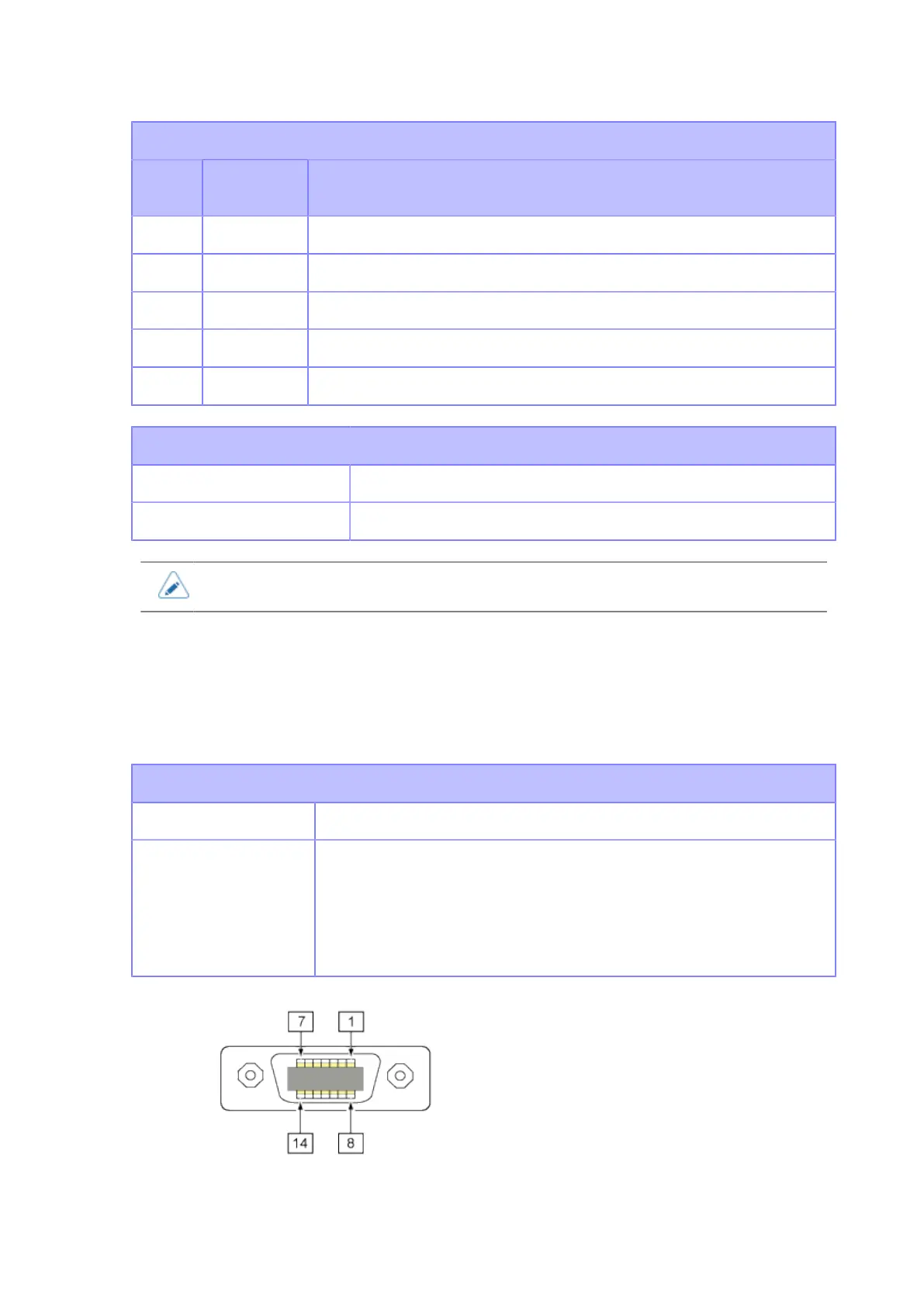

External Signal (EXT) Interface
Basic Specifications of External Signal (EXT) Interface
This interface is designed to connect the product with other peripherals.
Basic Specifications
Connector Centronics IDC Type 14 pins (Female)
Signal Levels
High-level
+4.2 to +5.0 V
Low-level
+0.0 to +0.7 V
