551
Operations in Cutter Mode

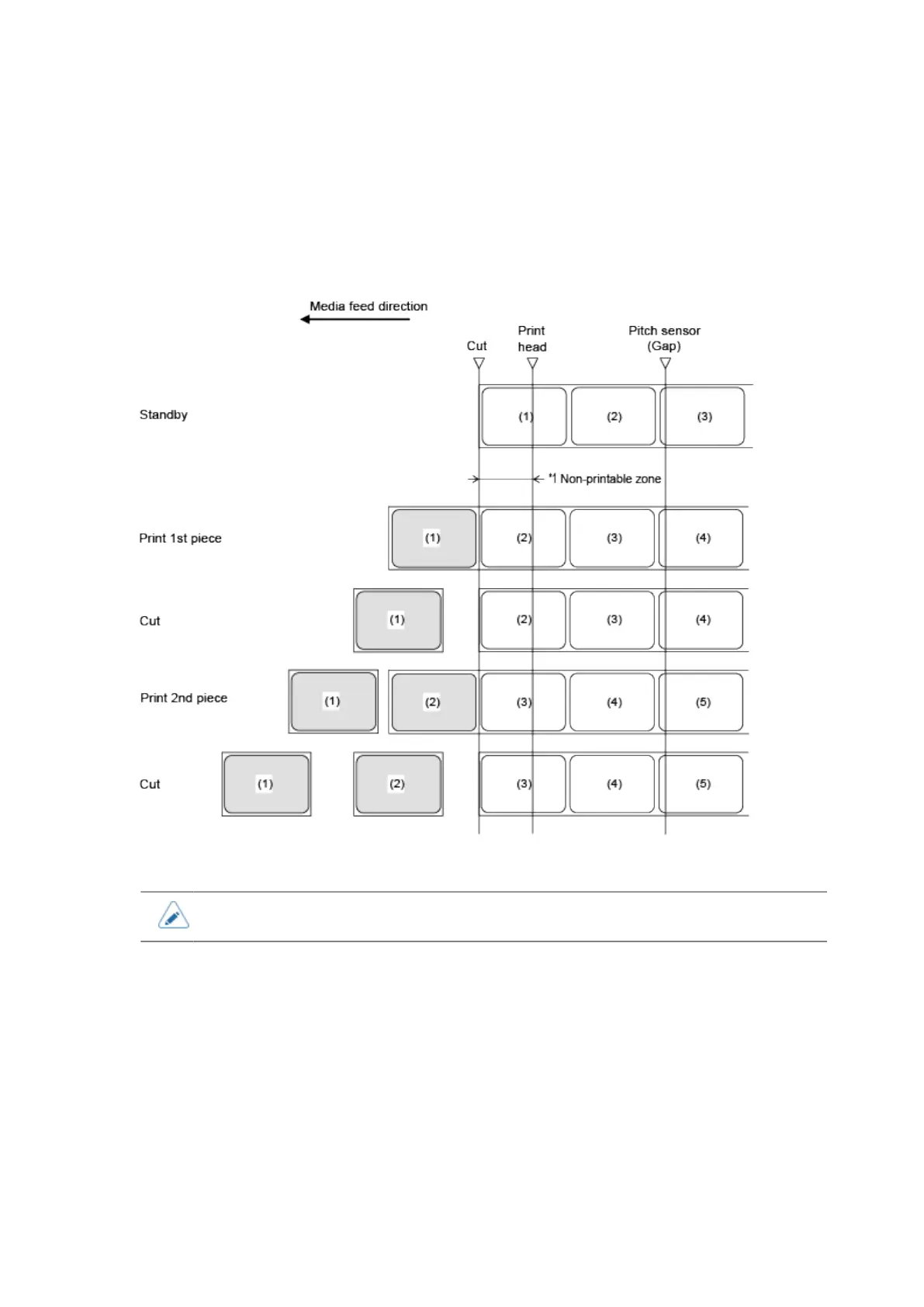

Operation 9: Cutter Mode, No Backfeed, and Without Pulse Input (Head Check
Disabled)
Operation
*1 Because backfeeding is not done, the media in the head area becomes non-printable.
The figure above shows the reference position when the Gap sensor is used.

Table of Contents

Other manuals for SATO CL4NX Plus

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the SATO CL4NX Plus and is the answer not in the manual?

SATO CL4NX Plus Specifications

General IconGeneral
Display typeLCD
Product colorBlack
Built-in displayYes
Display diagonal3.5 \
TypePOS printer
ColorNo
Print speed14 ips
Print technologyDirect thermal / Thermal transfer
Maximum resolution305 x 305 DPI
AC input voltage100 - 240 V
Power source typeAC
AC input frequency50 - 60 Hz
Maximum media length600 mm
Maximum roll diameter254 mm
Supported paper width39.5 - 128 mm
Maximum printing width128 mm
Printing media thickness0.06 - 0.268 µm
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)30 - 90 %
Operating relative humidity (H-H)30 - 80 %
Wi-Fi-
USB connectorUSB Type-A / USB Type-B
Bluetooth version3.0+HS
Standard interfacesBluetooth, Ethernet, RS-232C, Serial, USB 2.0
Serial interface typeRS-232C
USB 2.0 ports quantity3
Connectivity technologyWired & Wireless
Ethernet LAN (RJ-45) ports1
Weight and Dimensions IconWeight and Dimensions
Depth271 mm
Width457 mm
Height321 mm
Weight15100 g
