Head Pressure Setting
Set the head pressure according to the media thickness, including the liner.
1. Open the top cover of the product.

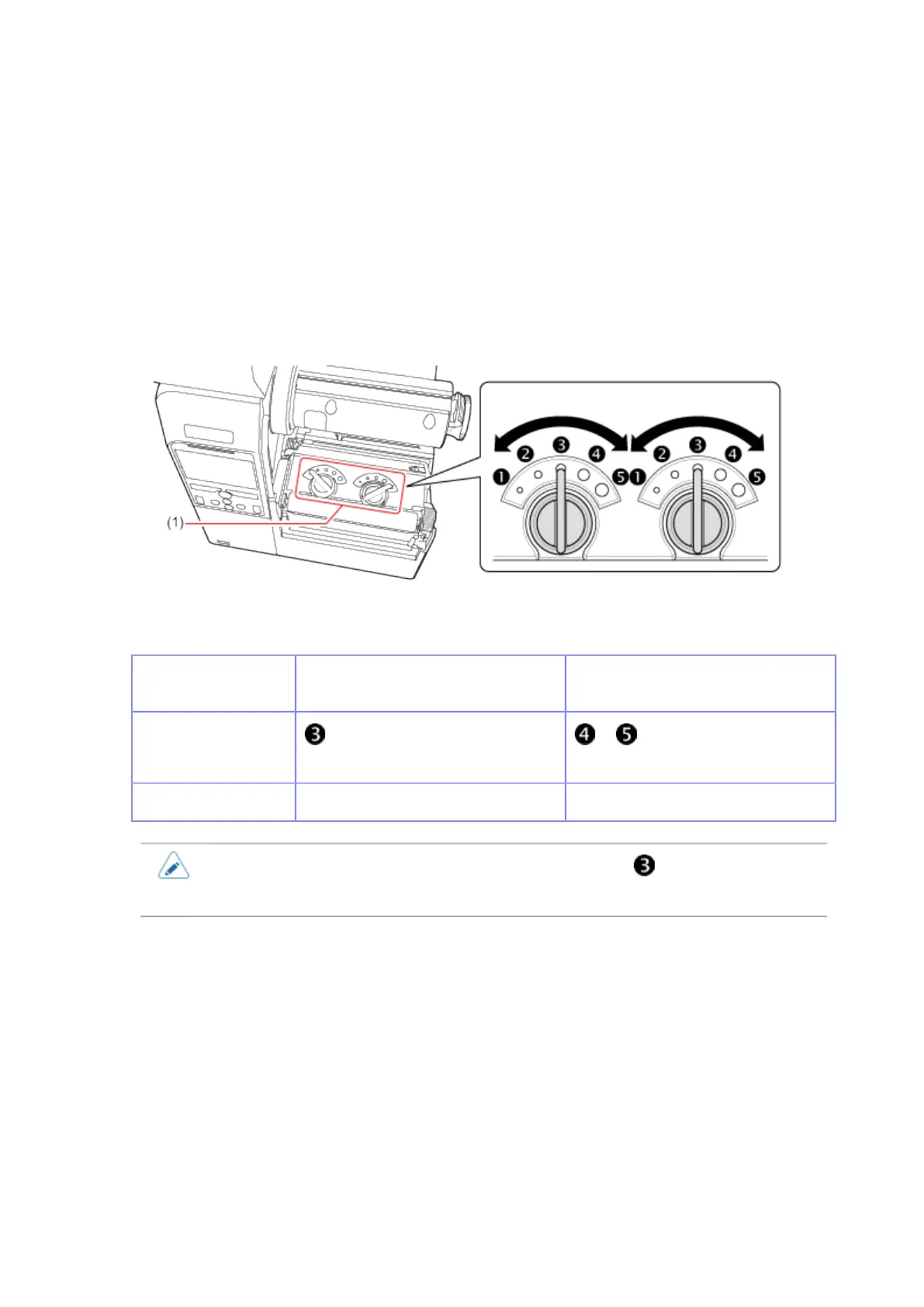

2. Find the adjustment dials (1) on the top of the print head assembly.
3. Turn the adjustment dials (1) according to the media thickness and set the head
pressure.
Media Thickness
(mm (inch))
0.060 - 0.200 (0.0024" - 0.0079") 0.200 - 0.268 (0.0079" - 0.011")
Adjustment Dials
(Left and Right) to
(Left and Right)
Reference Thin paper/normal label, etc. Thick paper/tag, etc.
•
The factory default settings of both Left and Right dials are .
• The thickness of the media includes the liner.
After adjusting the head pressure, perform actual printing and if media feeding starts to shift to the
right side when facing the product, adjust the pressure balance referring to the Pressure Balance
Setting.

SATO CL4NX Plus Specifications

General

Display type	LCD
Product color	Black
Built-in display	Yes
Display diagonal	3.5 \
Type	POS printer
Color	No
Print speed	14 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	305 x 305 DPI
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Maximum media length	600 mm
Maximum roll diameter	254 mm
Supported paper width	39.5 - 128 mm
Maximum printing width	128 mm
Printing media thickness	0.06 - 0.268 µm
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Wi-Fi	-
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0+HS
Standard interfaces	Bluetooth, Ethernet, RS-232C, Serial, USB 2.0
Serial interface type	RS-232C
USB 2.0 ports quantity	3
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	271 mm
Width	457 mm
Height	321 mm
Weight	15100 g
