Basic Specifications
Receive Mode Single-item buffer, Multi-item buffer

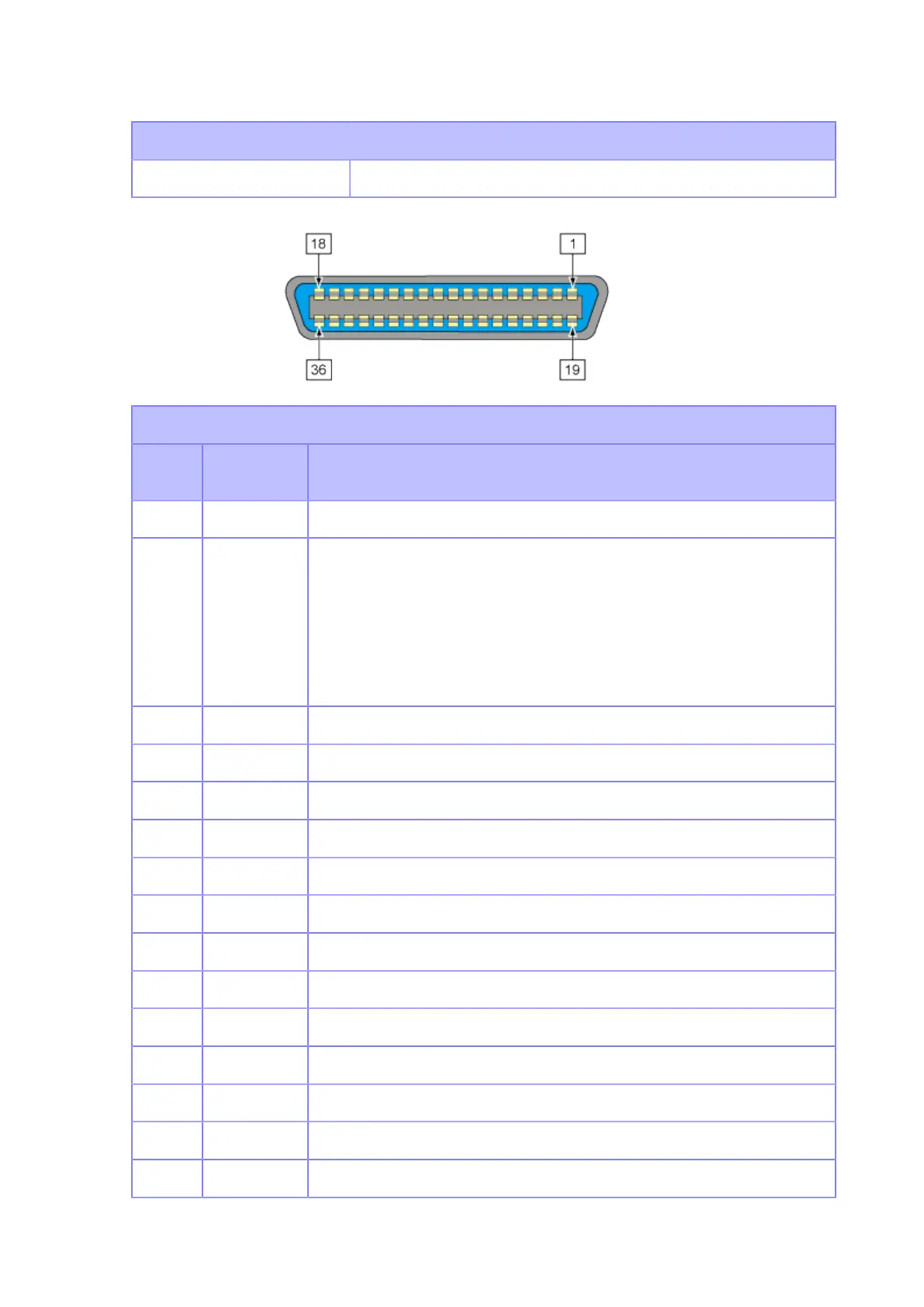

Connector Pin Specifications
Pin
No.
I/O Description
1 Input STROBE
2 - 9 Input DATA 1 - DATA 8
DATA1
LSB
DATA8
MSB
10 Output ACK
11 Output BUSY
12 Output PAPER EMPTY/PAPER ERROR
13 Output SELECT
14 Input AUTO FEED
15 - Not in use
16 - LOGIC Ground
17 - Frame Ground
18 - +5 V
19 - STROBE RETURN
20-27 - DATA 1 - DATA 8 RETURN
28 - ACK RETURN
29 - BUSY RETURN
