SATO CL4NX Plus - Page 607

607
Cut Position When Using the Media with Perforated Line in Cutter Mode

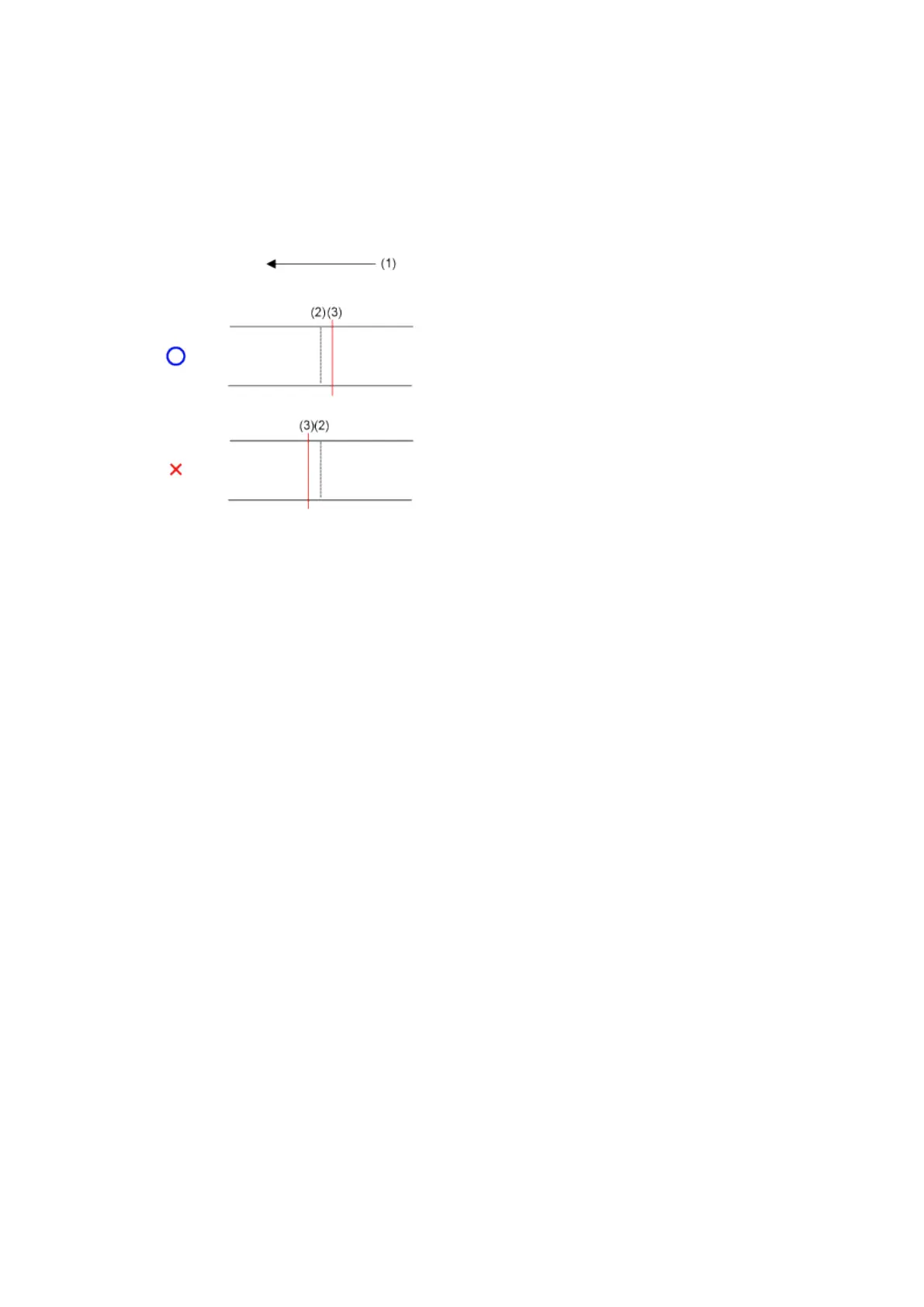

Adjust the cut position so as not to cut the media on the perforated line and on the area near side from
the perforated line (the area is shown in the figure below).
When the media is cut on the area not to be cut, it could cause a paper jam or damage.
(1) Feed direction
(2) Perforated line
(3) Cut position
