SATO CL4NX Plus User Manual

Outputting a Label from an Application Software
160
Before starting the print job, confirm that the printer driver to be used in the application software is set
to the appropriate printer driver for the product you are using.

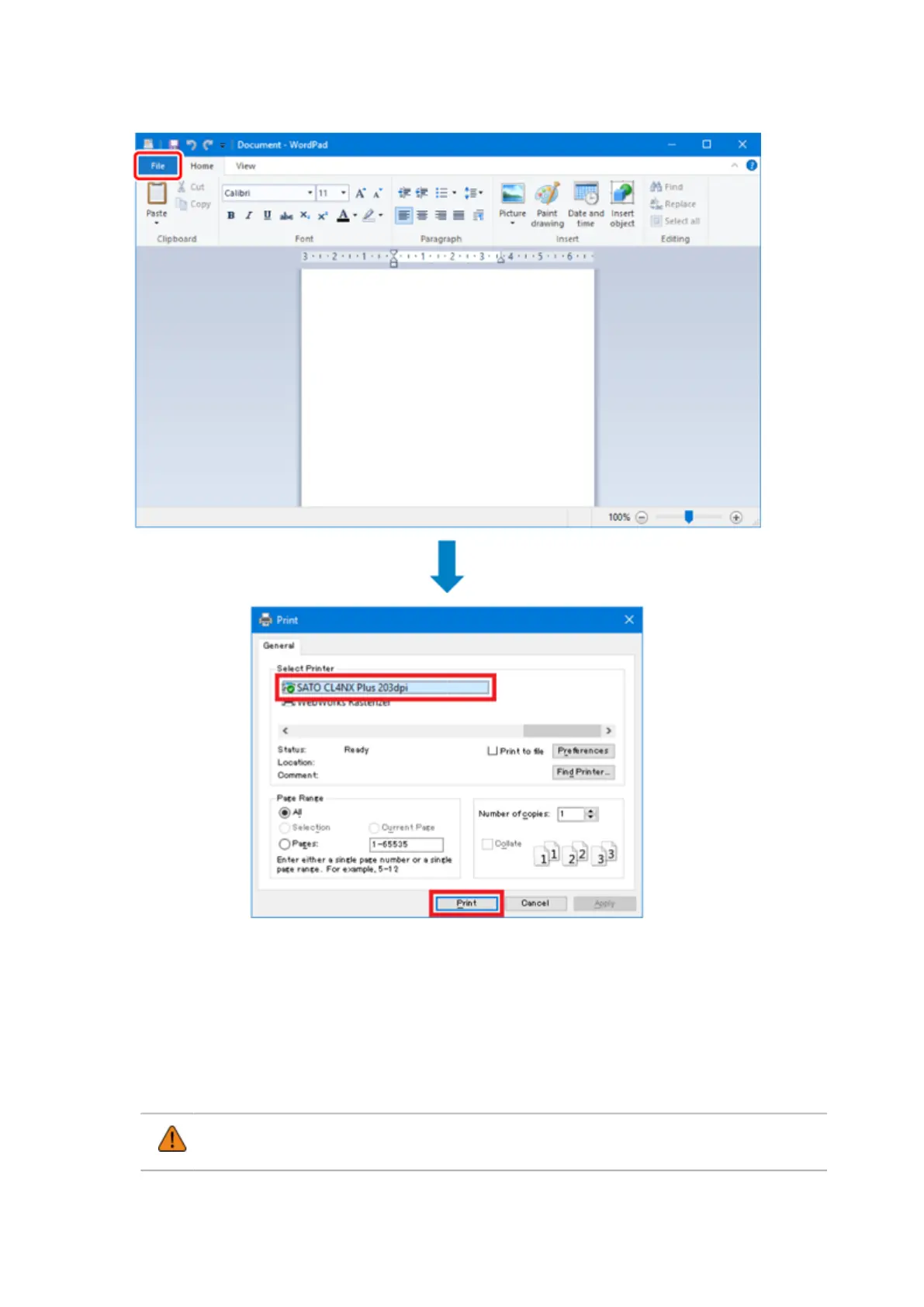

The method for setting the printer driver varies depending on the application software. In general,
select the item you want from the list that is displayed when you select [Print] from the [File] menu, or
when you click [▼] in [Printer Name] in the dialog.
Depending on the application software. it may be necessary to select the media again in the media
selection function of the application software to use the media selected in the [Page Setup] of the
printer driver.
• If you use software such as NiceLabel, the settings of the software are enabled, not the
settings of the printer driver.

SATO CL4NX Plus Specifications

General

Display type	LCD
Product color	Black
Built-in display	Yes
Display diagonal	3.5 \
Type	POS printer
Color	No
Print speed	14 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	305 x 305 DPI
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Maximum media length	600 mm
Maximum roll diameter	254 mm
Supported paper width	39.5 - 128 mm
Maximum printing width	128 mm
Printing media thickness	0.06 - 0.268 µm
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Wi-Fi	-
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0+HS
Standard interfaces	Bluetooth, Ethernet, RS-232C, Serial, USB 2.0
Serial interface type	RS-232C
USB 2.0 ports quantity	3
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	271 mm
Width	457 mm
Height	321 mm
Weight	15100 g
