Replacing the Ribbon
196

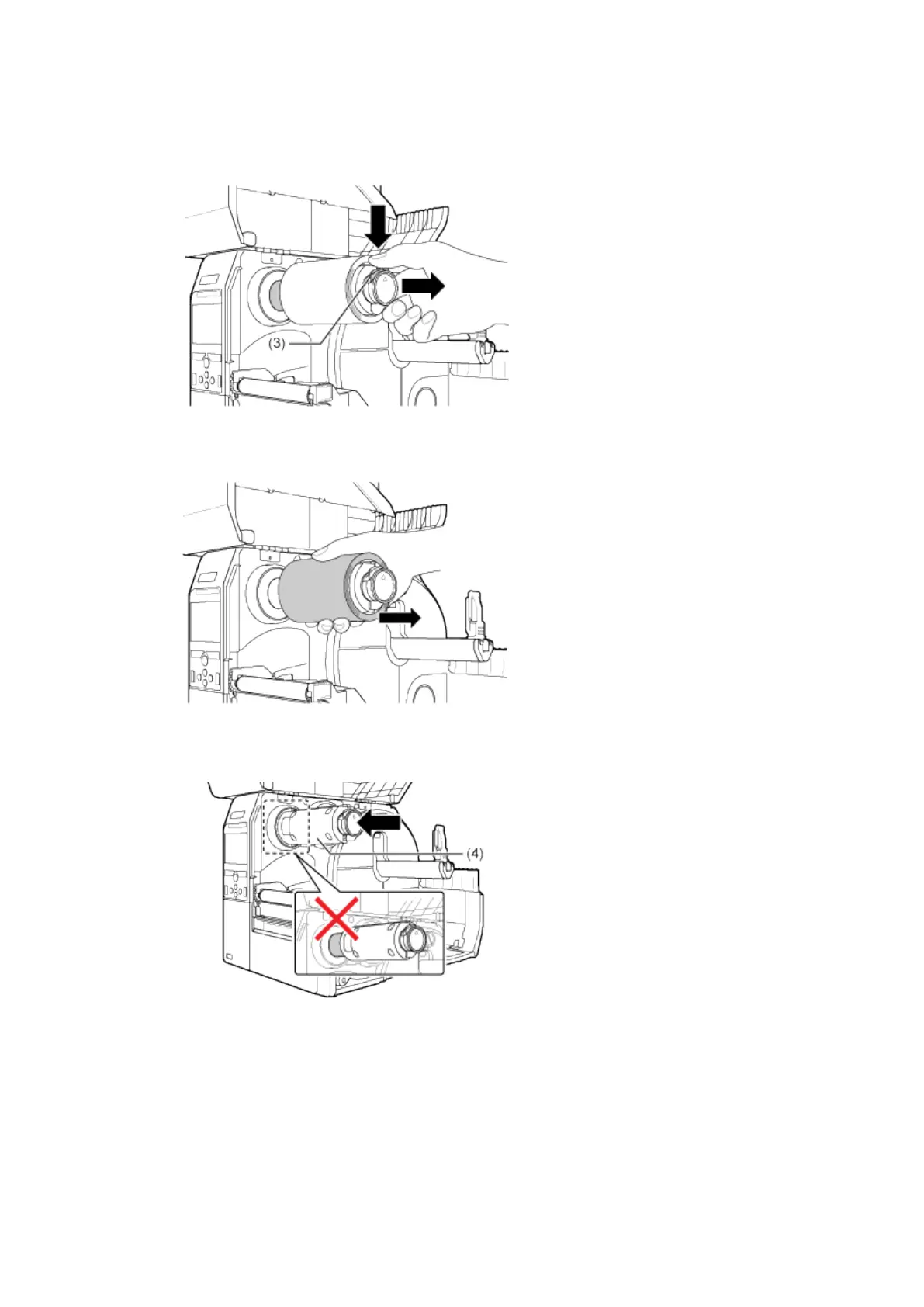

3. Press the tab (3) on the tip of the ribbon rewind spindle to pull it out.
4. Pull to remove the used ribbon from the ribbon rewind spindle.
5. Push the ribbon rewind spindle (4) all the way in.
6. Remove the used ribbon core from the ribbon supply spindle.
