SATO CL4NX Plus User Manual

231

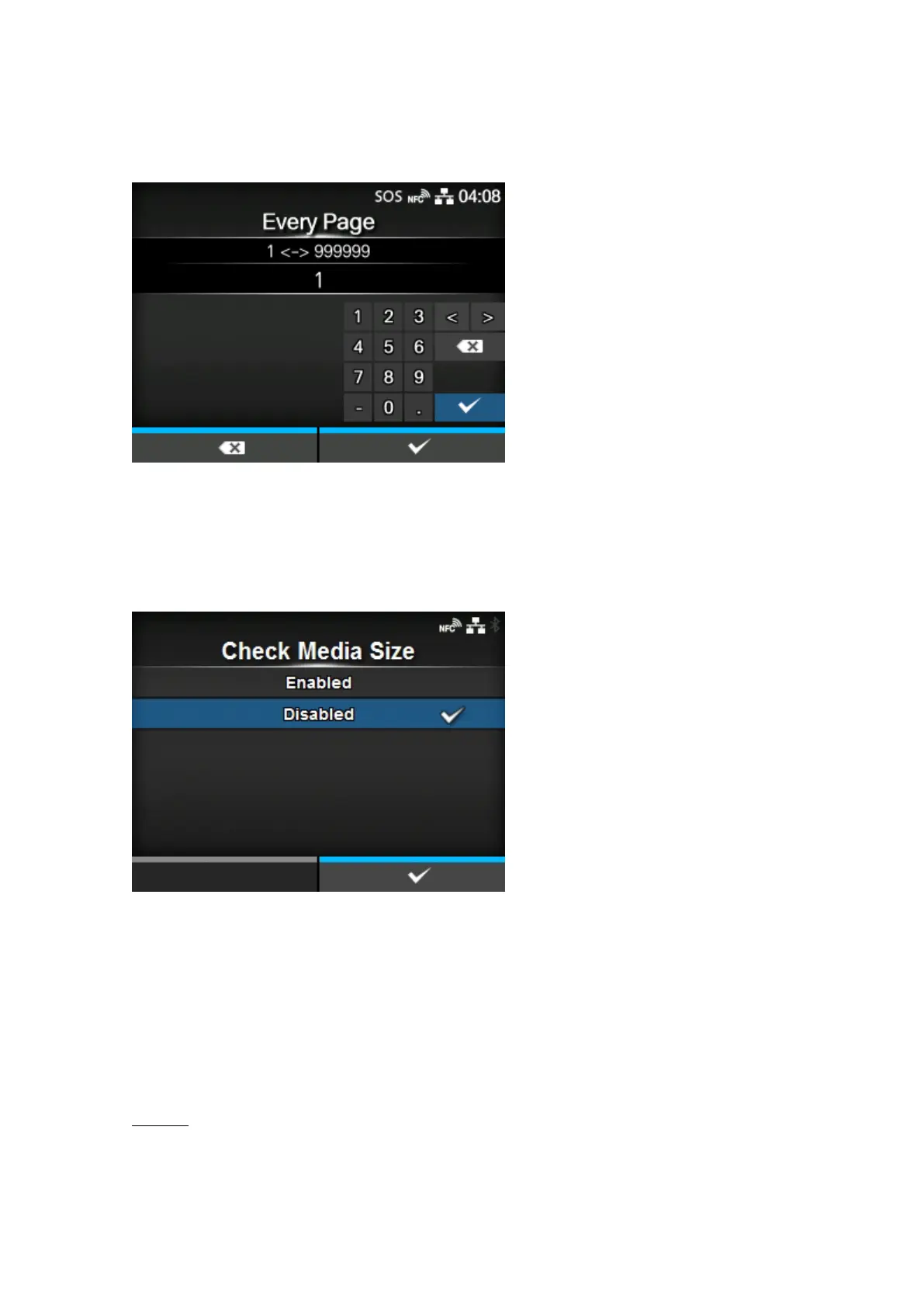

[Every Page]
Perform the head check for each specified number of media.
Appears if you have selected [Every Page] in the [Head Check Mode] menu.
The setting range is from 1 to 999999.
[Check Media Size]
Enable or disable media size check.
Appears if you have selected [Gap] or [I-Mark] in the [Sensor Type] menu.
If this function is enabled, "Media Error" is shown when either of the following conditions applies:
• If the media is more than 3 mm (0.12") longer than the media length specified with the media size
command ESC+A1.
• If the current media feed length is more than 3 mm (0.12") longer than the media length fed for
the first time after this function is enabled.
The options are as follows:
Enabled
Enable media size check.

SATO CL4NX Plus Specifications

General

Display type	LCD
Product color	Black
Built-in display	Yes
Display diagonal	3.5 \
Type	POS printer
Color	No
Print speed	14 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	305 x 305 DPI
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Maximum media length	600 mm
Maximum roll diameter	254 mm
Supported paper width	39.5 - 128 mm
Maximum printing width	128 mm
Printing media thickness	0.06 - 0.268 µm
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Wi-Fi	-
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0+HS
Standard interfaces	Bluetooth, Ethernet, RS-232C, Serial, USB 2.0
Serial interface type	RS-232C
USB 2.0 ports quantity	3
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	271 mm
Width	457 mm
Height	321 mm
Weight	15100 g
