395
Resolution CL4NX Plus
305 dpi
(1 dot = 0.083 mm (0.0033"))
-1248 to 0 to 1248 dots
609 dpi
(1 dot = 0.042 mm (0.0017"))
-2496 to 0 to 2496 dots

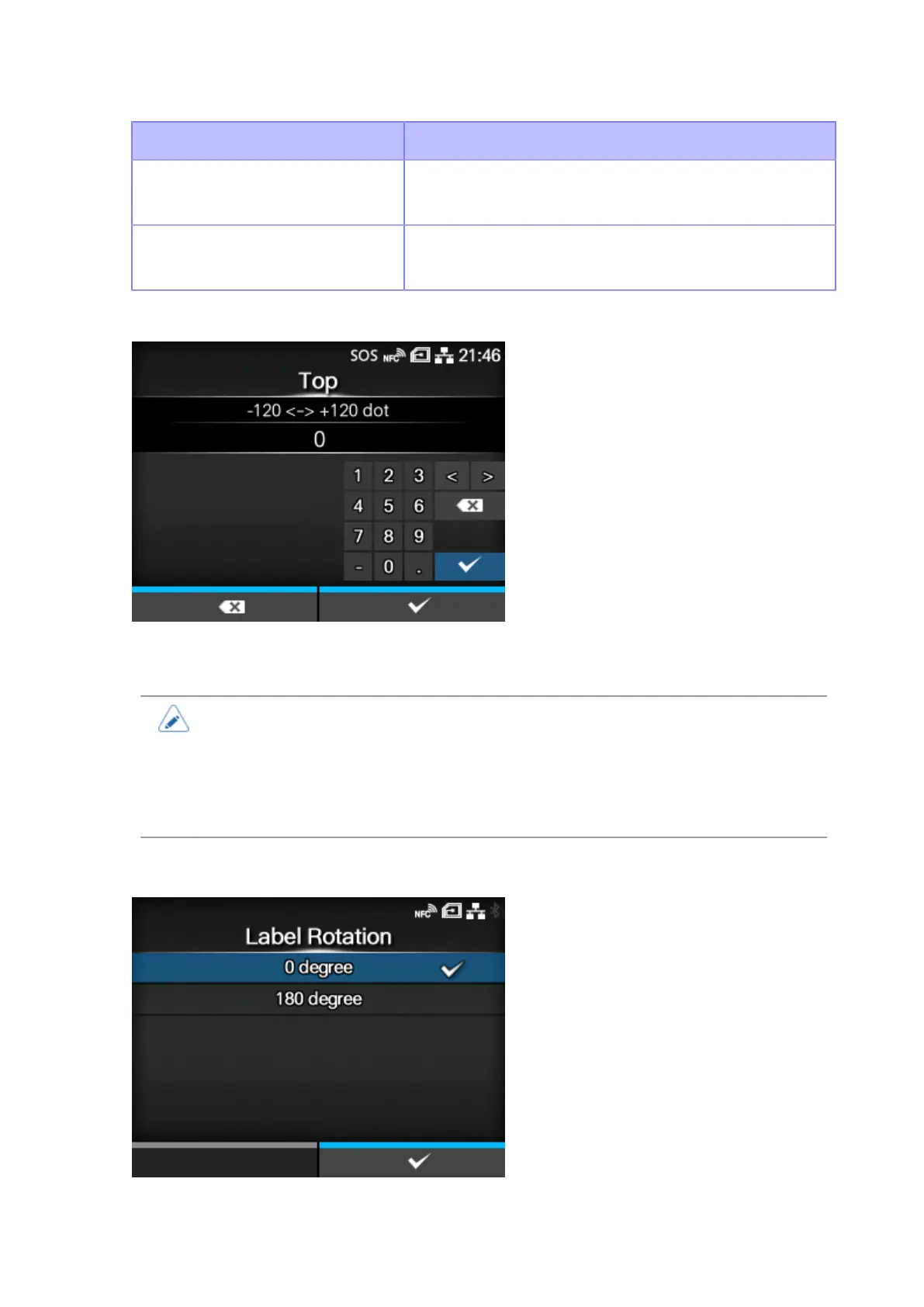

[Top]
Set the top offset position of the label.
The setting range is from -120 to +120 dots.
• The length of 1 dot varies depending on the print resolution of the product.
◦ 203 dpi : 1 dot = 0.125 mm (0.0049")
◦ 305 dpi : 1 dot = 0.083 mm (0.0033")
◦ 609 dpi : 1 dot = 0.042 mm (0.0017")
[Label Rotation]
Set the page orientation for label printing.
