SATO CL4NX Plus - Page 573

573

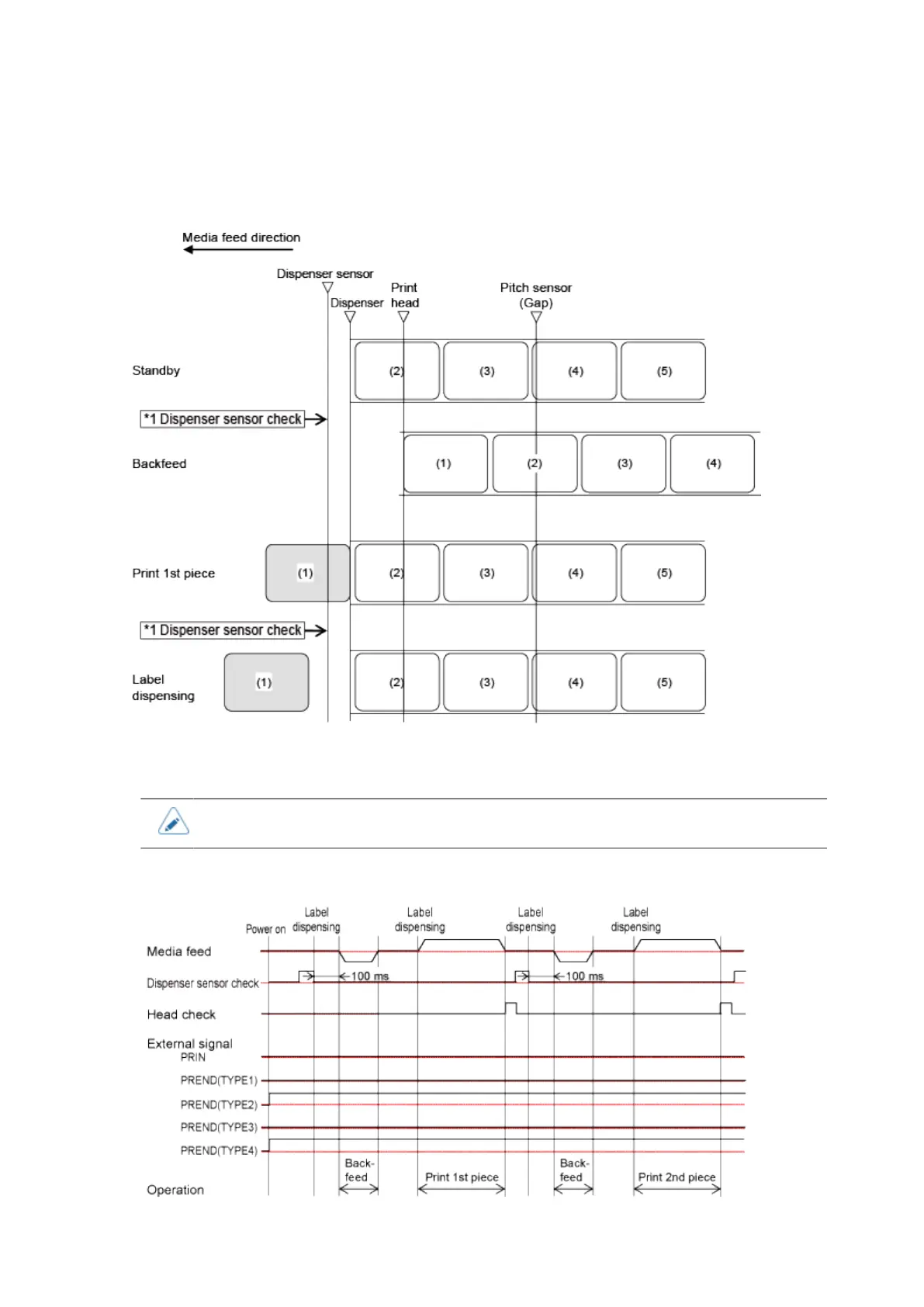

Operation 28: Dispenser Mode, Backfeed Before Printing, and Without Pulse Input
(Head Check Enabled)
Operation
*1 The dispenser sensor confirms the dispensing condition and the product does not perform the next
operation until the label is dispensed.
• The figure above shows the reference position when the Gap sensor is used.
Timing Chart
