SATO CL4NX Plus - Page 576

576

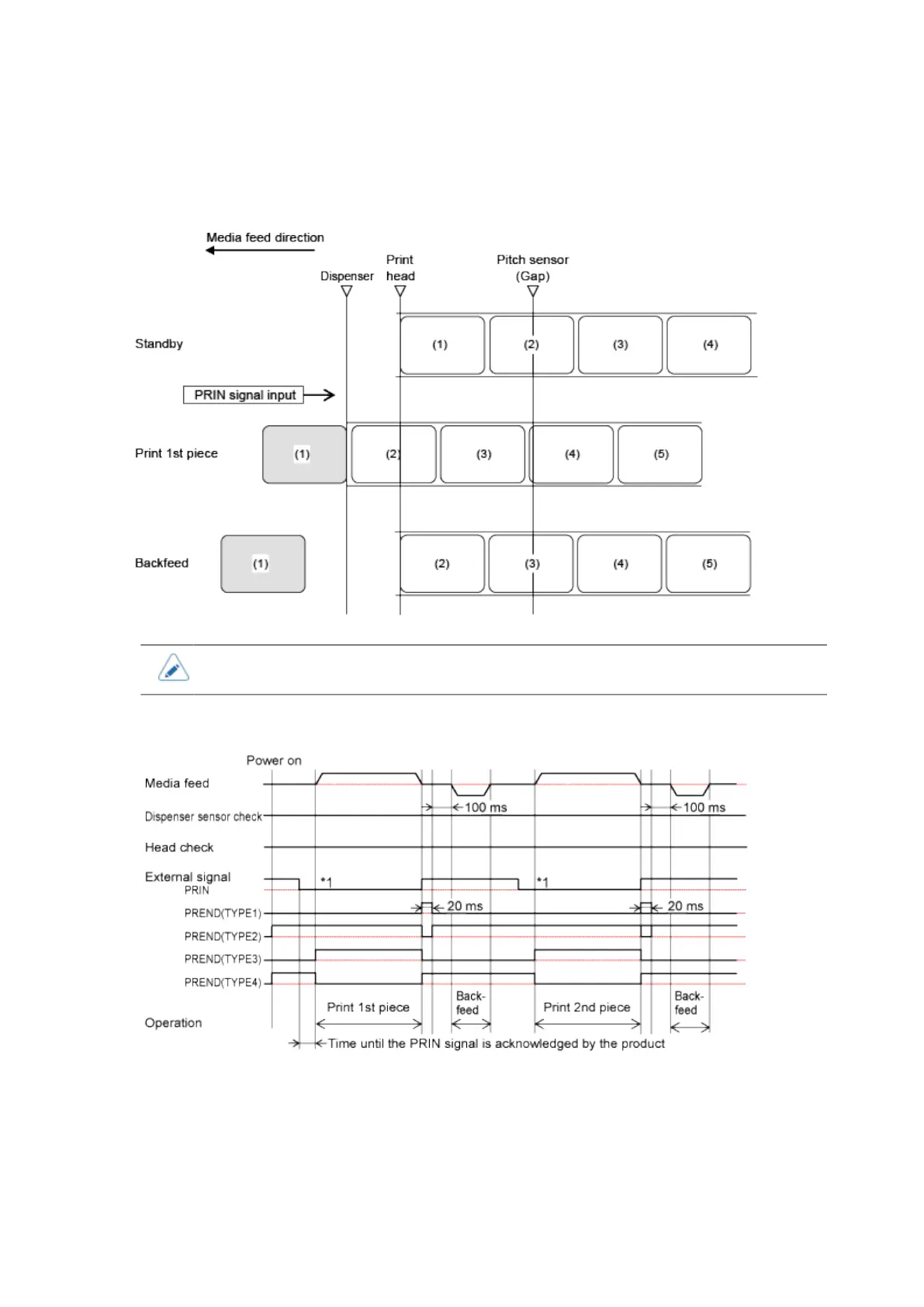

Operation 31: Dispenser Mode, Backfeed After Printing, and with Pulse Input (Head
Check Disabled)
Operation
• The figure above shows the reference position when the Gap sensor is used.
Timing Chart
*1 Keep the PRIN signal until the PREND signal is outputted.
