585

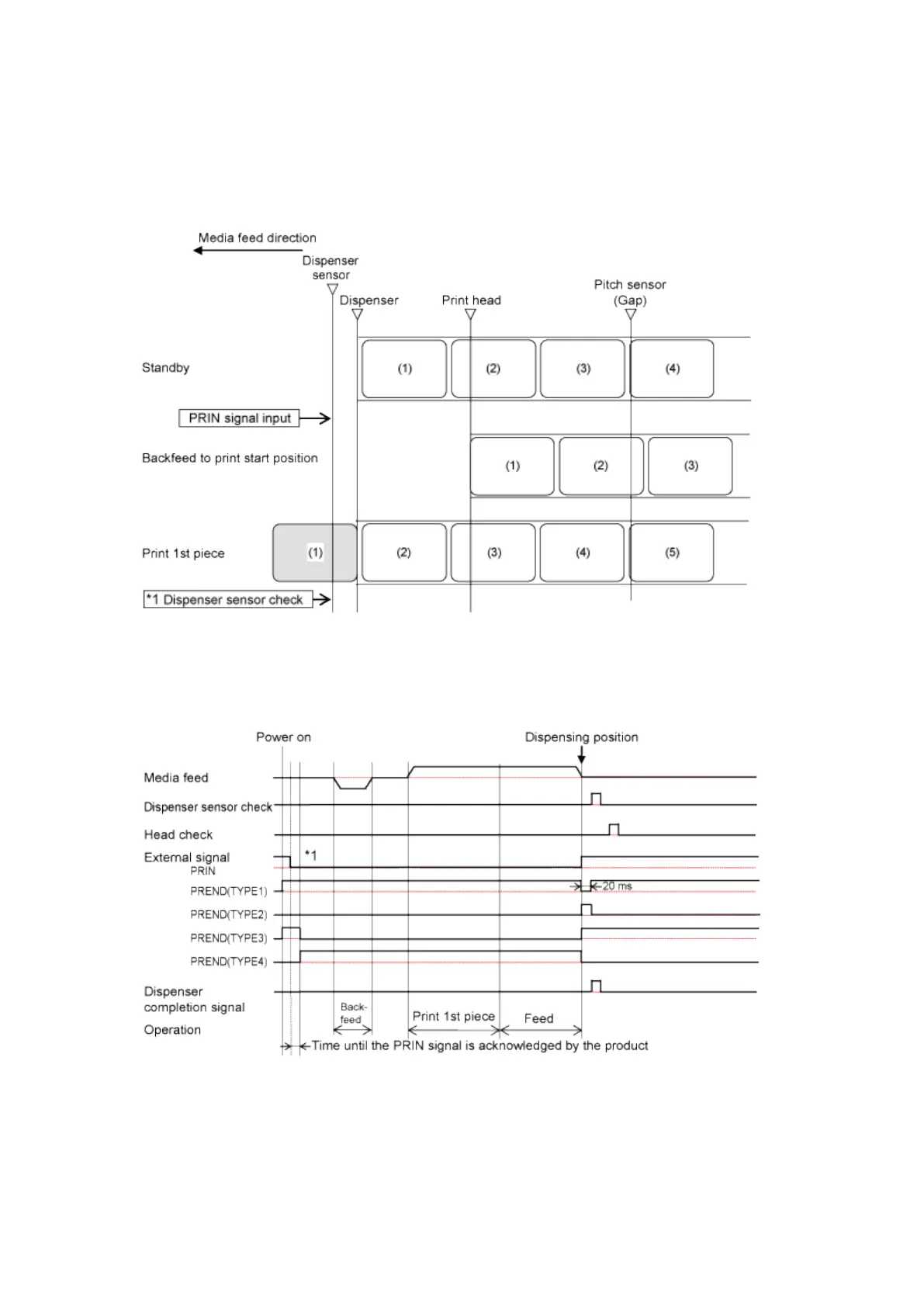

Operation 38: Dispenser Mode, Backfeed Before Printing, with Pulse Input, and with
the Dispenser Completion Signal (Head Check Enabled)
Operation
*1 The dispenser sensor confirms the dispensing condition and the product does not perform the next
operation until the label is dispensed.
Timing Chart
*1 Keep the PRIN signal until the PREND signal is outputted.
To Next Page
