SATO CL4NX Plus - Page 591

591

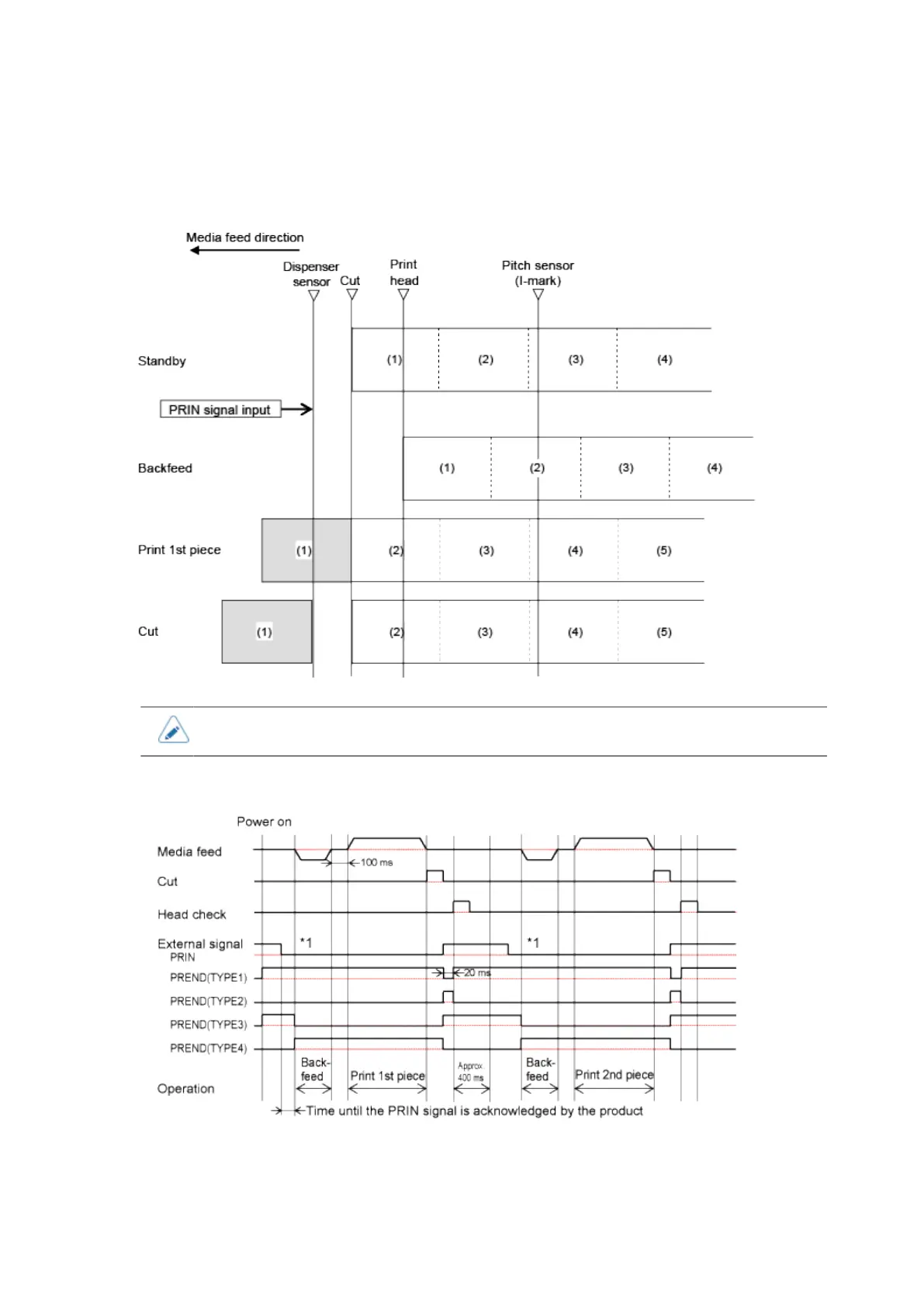

Operation 42: Linerless Mode, Backfeed Before Printing, and with Pulse Input (Head
Check Enabled)
Operation
• The figure above shows the reference position when the I-mark sensor is used.
Timing Chart
*1 Keep the PRIN signal until the PREND signal is outputted.
