Contents of the Check for Readable Mode and Comparison Mode
636

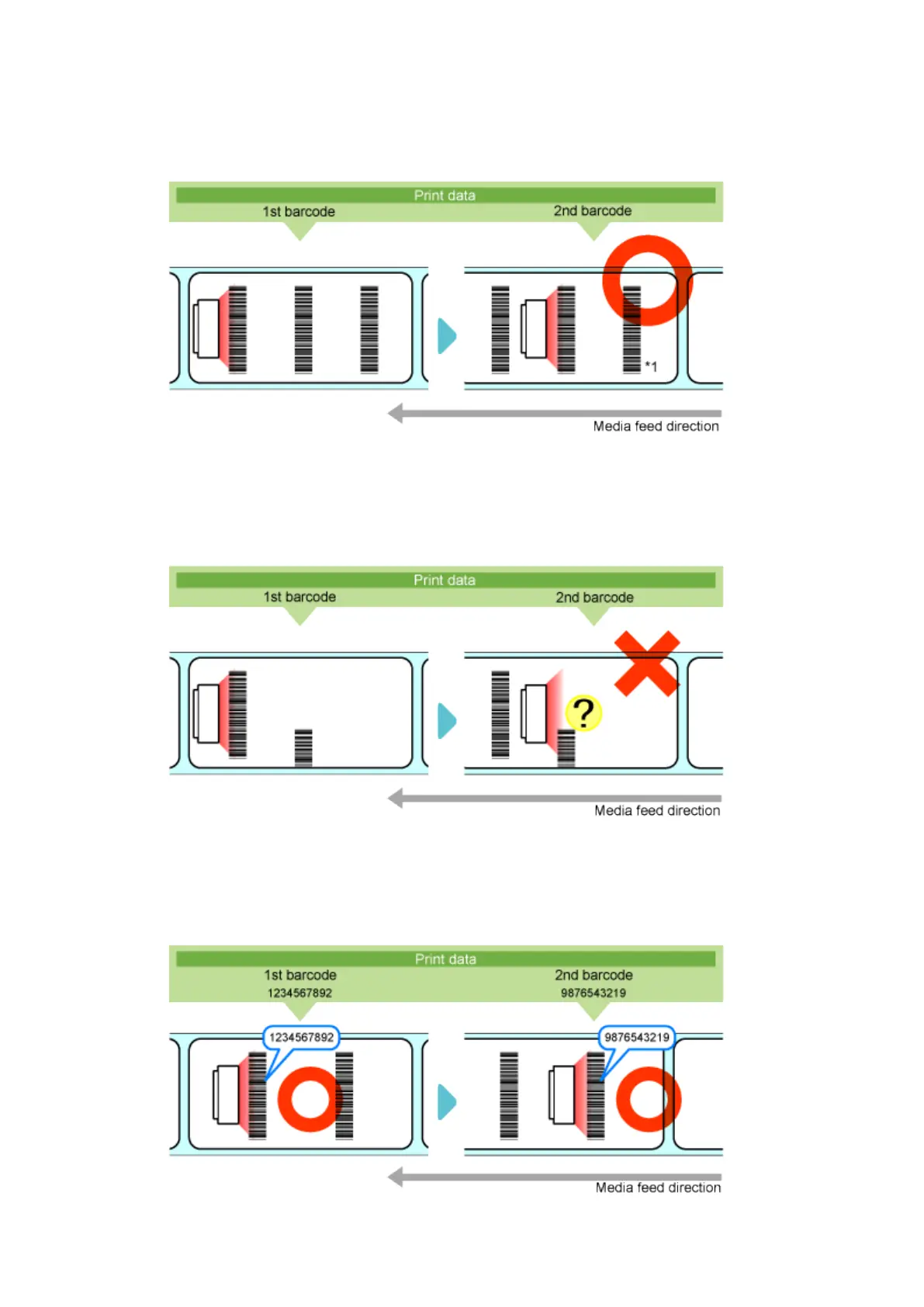

• The reading is considered to be successful if the number of barcodes the barcode checker reads
reaches the number of barcodes in the print data. The product prints the next label.
*1 Even if the number of barcodes the barcode checker reads exceeds the number of barcodes
in the print data, it is considered to be successful.
• A reading error occurs if the number of barcodes in the print data is not read within the printing
period from start to finish and the timeout period (up to 2 seconds).
Comparison mode
This mode checks if the read results of the printed barcodes match the barcode data in the print data.
• The reading is considered to be successful if the read results of the printed barcodes match the
barcode data in the print data. The product prints the next label.

SATO CL4NX Plus Specifications

General

Display type	LCD
Product color	Black
Built-in display	Yes
Display diagonal	3.5 \
Type	POS printer
Color	No
Print speed	14 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	305 x 305 DPI
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Maximum media length	600 mm
Maximum roll diameter	254 mm
Supported paper width	39.5 - 128 mm
Maximum printing width	128 mm
Printing media thickness	0.06 - 0.268 µm
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Wi-Fi	-
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0+HS
Standard interfaces	Bluetooth, Ethernet, RS-232C, Serial, USB 2.0
Serial interface type	RS-232C
USB 2.0 ports quantity	3
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	271 mm
Width	457 mm
Height	321 mm
Weight	15100 g
