Replacing the Platen Roller
692

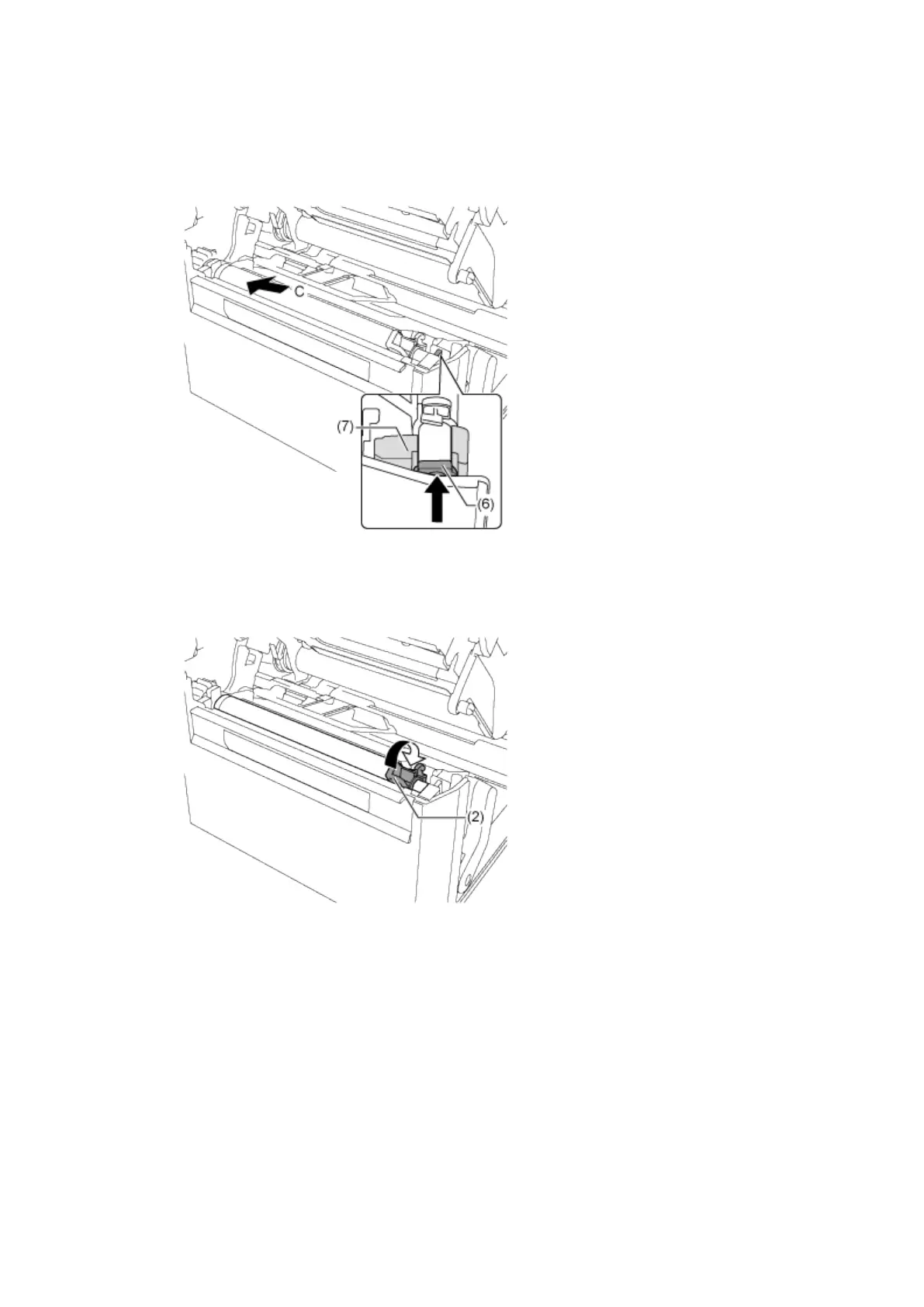

b. Next, make sure that the tab (6) on the right driven end of the platen roller is pointing upward.
Push the platen roller again in the direction C so that the tab (6) is fixed in the groove (7) at the
driven side.
6. Turn the lever (2) back to lock the platen roller.
