Sirona Dental Systems GmbH 4 Operation
Operating Instructions SINIUS / SINIUS CS 4.8 Tray
båÖäáëÜ
4.8
Tray
Tray

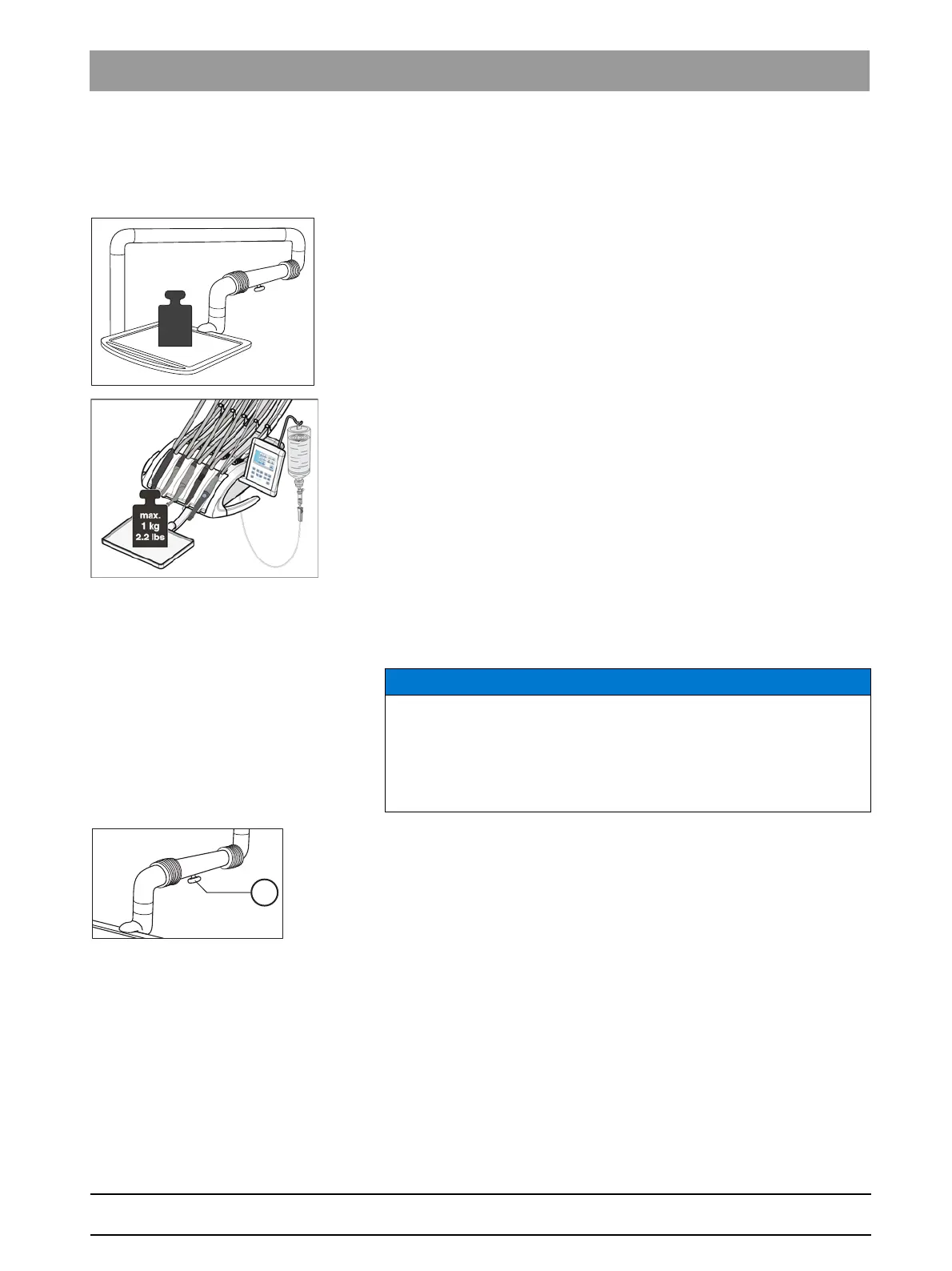

Maximum load capacity
SINIUS treatment centers can be equipped with a tray on a support arm,
SINIUS CS treatment centers with a tray, which is mounted below the
dentist element. The maximum load is 1 kg (2.2 lbs) for both versions.
Adjusting height of the tray on the support arm
The tray is supported to rotate on a height-adjustable support arm.
Support arm
1. Loosen the brake knob slightly.
2. Set the tray to the desired position.
3. Retighten the brake knob slightly.
The tray can thus be subjected to different loads within limits
without lowering its position.
Removing the instrument tray
See "Disinfecting the tray" [ → 174].
max.
1 kg
2.2 lbs
max.
1 kg
2.2 lbs
NOTICE
A locking brake blocks the height adjustment.
The support arm may be damaged if you adjust the height with the
locking brake applied.
➢ Never, under any circumstances, try to adjust the support arm with
the locking brake securely tightened. Release the locking brake first.
