Sirona Sinius - SIROCAM AF Intraoral Camera; Functional Description; Safety Information

63 22 726 D3561
146 D3561.201.01.03.02 05.2012
4 Operation Sirona Dental Systems GmbH
4.11 SIVISION digital video system Operating Instructions SINIUS / SINIUS CS
4.11.2 SIROCAM AF intraoral camera
SIROCAM AF intraoral camera
4.11.2.1
Safety information
Safety information
The SiroCam AF intraoral camera is a sensitive optical instrument and
must therefore always be handled with care.
Intraoral camera, lens window
Intraoral camera, heating due to LEDs
The following temperatures are reached:
4.11.2.2
Functional description
Functional descriptio n
The camera generates digital image data with the help of a CMOS
sensor. The camera allows for the acquisition of intraoral and extraoral
images.
CAUTION
The lens window is sensitive to scratches.
The lens window can be damaged by hard objects. Deep scratches in
the lens window impair image quality.
➢ Always place the intraoral camera in the designated holder and
clean the lens window with a soft cloth.
IMPORTANT
The intraoral camera is heated during operation due to the LEDs in the
camera head.
Duty time Temperature at 25°C
room temperature
Temperature at 37°C
in oral cavity
1 min 41.2° C 53.2° C
2 min 47.5° C 59.5° C

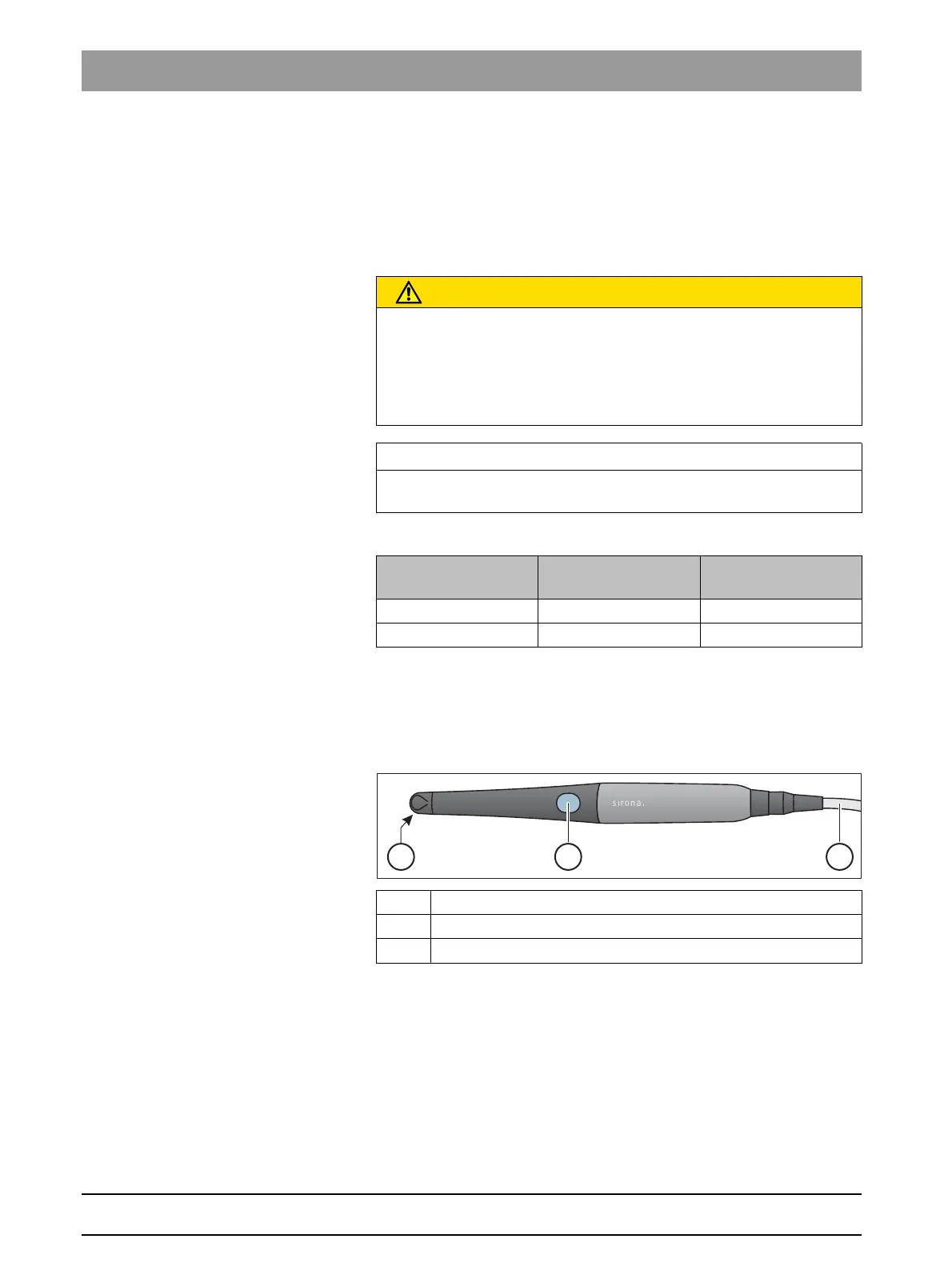

A Lens window (covered)
B Key for automatic focus (Auto focus)
C Connecting cable
SiroCam AF
C
B
A
