63 22 726 D3561
92 D3561.201.01.03.02 05.2012
4 Operation Sirona Dental Systems GmbH
4.5 Dentist element Operating Instructions SINIUS / SINIUS CS

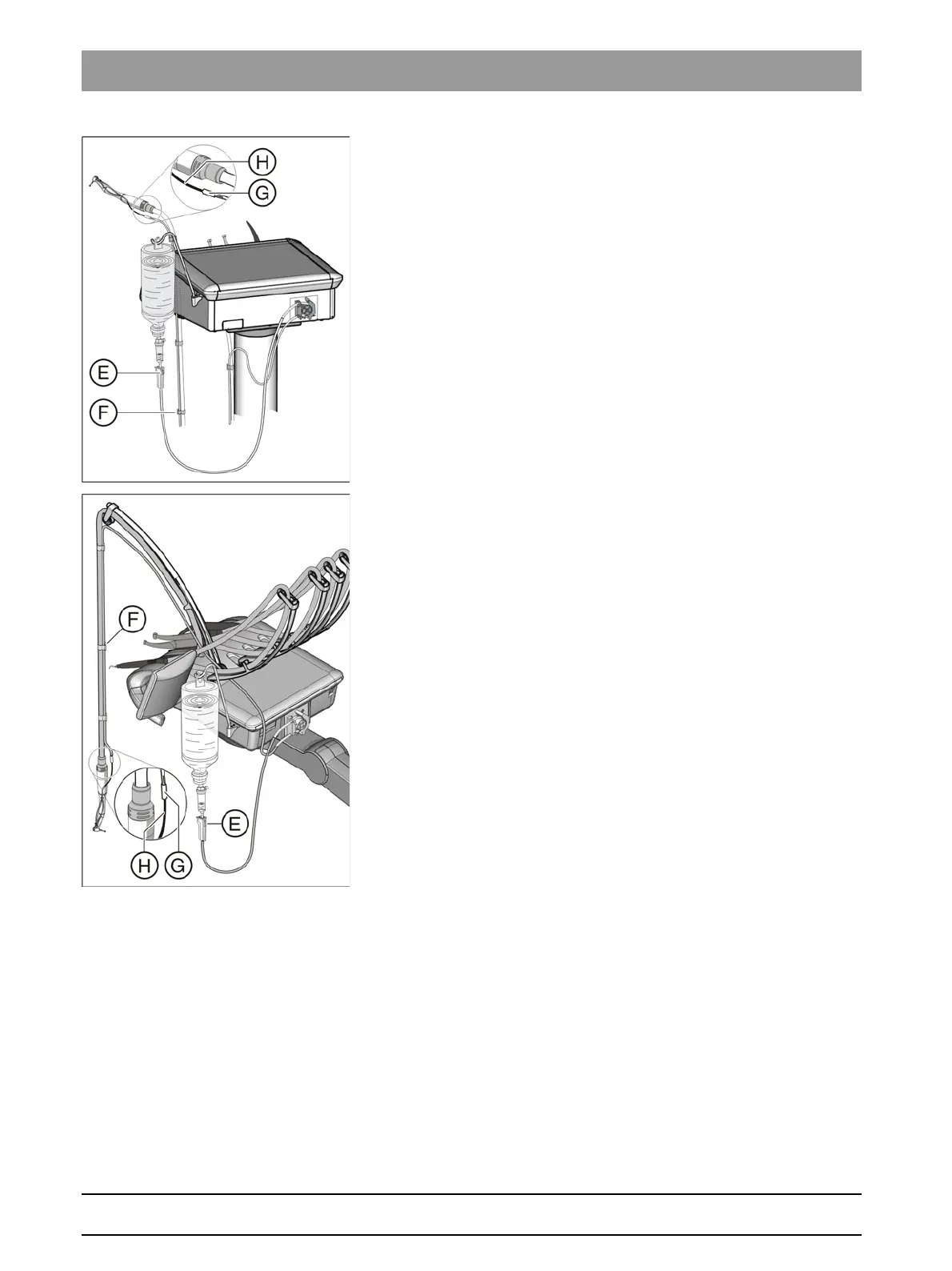

6. Push the short end of the hose with the cannula through the stopper
and into the NaCl bottle. The regulator in the hose clip (E) must be
completely open (regulating wheel in top position).
7. Run the long end of the hose alongside the corresponding motor
hose up to the contra-angle handpiece. Fasten the hose with clips F.
8. Attach the coupling (G) to the hose. Connect the thin silicone hose
(H) to the coupling (G).
9. Connect the thin silicone hose H to the connectors on the contra-
angle handpiece. For details, see the Operating Instructions of the
contra-angle handpiece.
