REAR SUSPENSION 3E-21

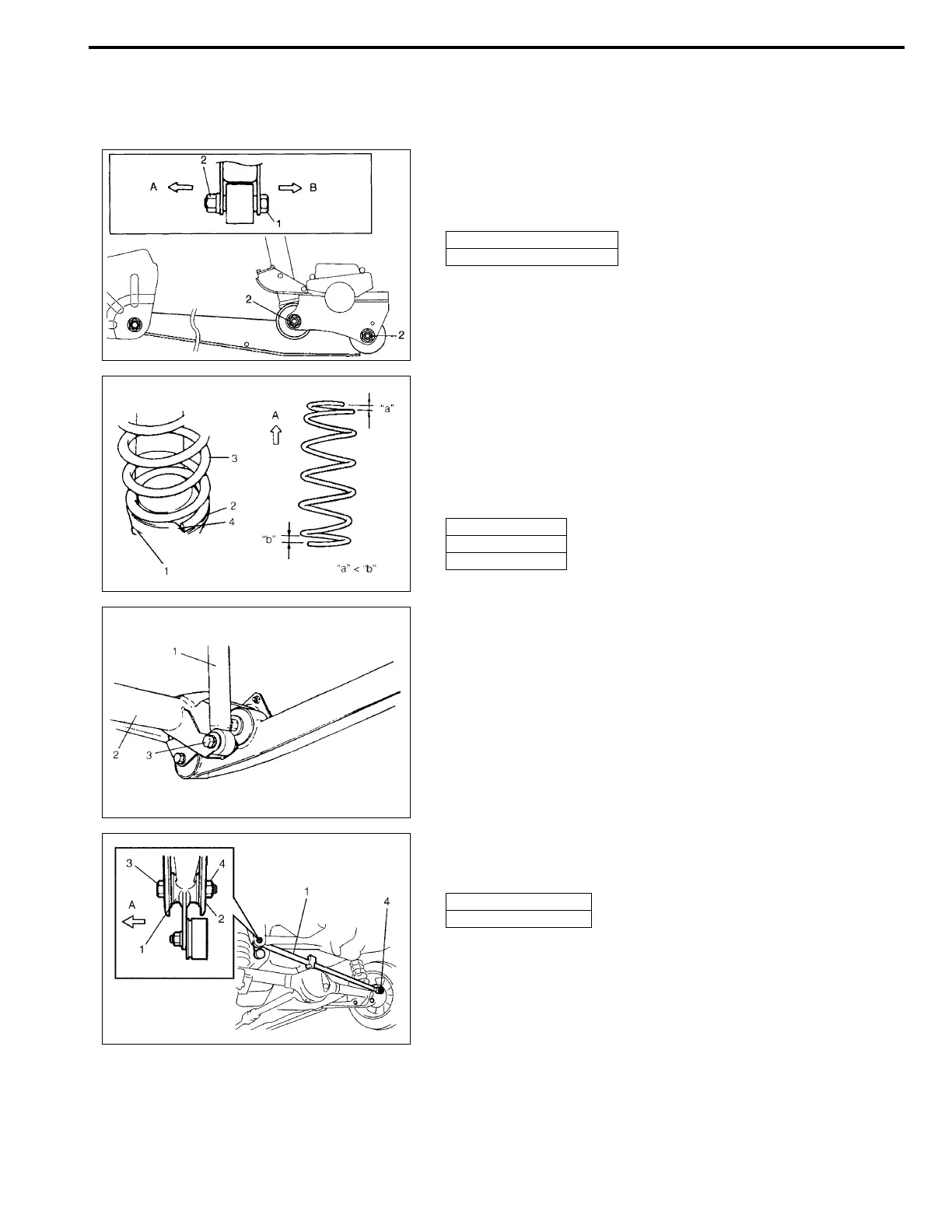

Installation
Install removed parts in reverse order of removal, noting the fol-
lowing.
1) Place rear axle housing on floor jack. Then install rear trail-
ing arm bolts (1) (right & left) in proper direction as shown.
Then tighten nuts (2) temporarily by hand.
2) Install coil springs (3) (right & left) on spring seat (2) of axle
housing (1) and raise axle housing.
3) Install shock absorber (1) (right & left) to axle housing (2)
and install bolts in proper direction as shown. Then tighten
bolts (3) (right & left) temporarily by hand.
4) Install lateral rod (1) and bolt (3) in proper direction as
shown. Then tighten nuts (4) temporarily by hand.
A : Vehicle out side
B : Vehicle center side
NOTE:
When seating coil spring (3), mate spring end with
stepped part (4) of rear axle spring seat as shown.
A. Upper side
“A”:Small
“b”: Large
2. Vehicle body
A : Forward
