3E-22 REAR SUSPENSION

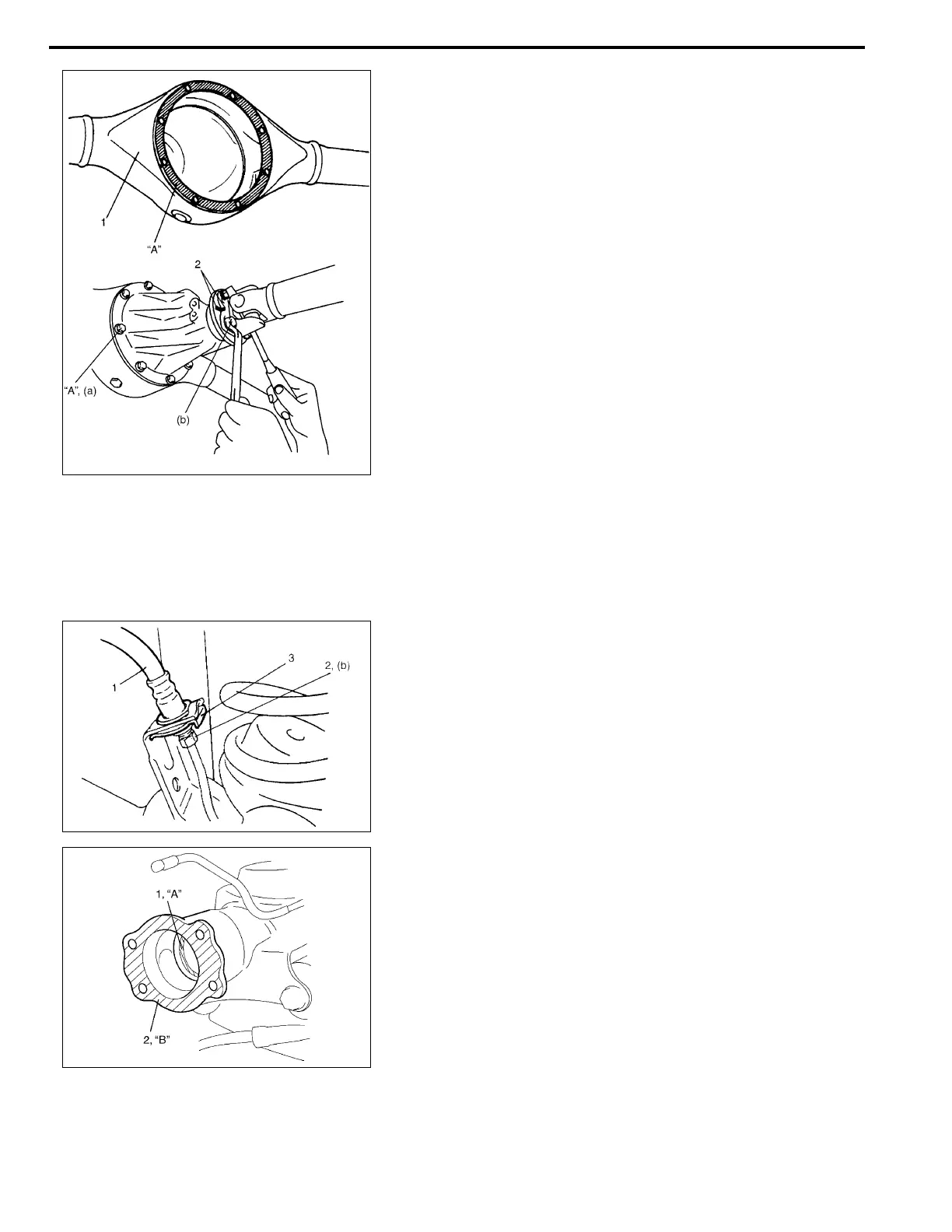

5) Clean mating surfaces of axle housing (1) and differential
carrier and apply sealant to housing side.
“A”: Sealant 99000-31110
6) Install differential carrier assembly to axle housing and
tighten carrier bolts to specified torque.
Tightening torque
Rear differential carrier bolt
(a): 23 N·m (2.3 kg-m, 17.0 lb-ft)
7) Install propeller shaft to joint flange aligning match marks (2)
and tighten flange bolts to specified torque.
Tightening torque
Differential flange bolt (b): 23 N·m (2.3 kg-m, 17.0 lb-ft)
8) Install LSPV spring to rear axle.
Tighten LSPV adjust nut temporarily at this step. (if equipped
with LSPV).
9) Install wheel speed sensor and clamp wire securely (right &
left) (if equipped with ABS).
10) Remove floor jack from axle housing.
11) Connect brake flexible hoses (1) (right & left) to bracket on
rear axle and secure it with E-rings (3) (right & left).
12) Connect brake pipes to brake flexible hoses (1) and tighten
brake pipe flare nuts (2) to specified torque.
Tightening torque
Brake pipe flare nut (b): 16 N·m (1.6 kg-m, 11.5 lb-ft)
13) Apply grease to axle shaft oil seals (1) lip (right & left).
“A”: Grease 99000-25010
14) Clean mating surfaces (2) (right & left) of axle housing and
brake back plate and apply water tight sealant as shown in
figure.
“B”: Sealant 99000-31090
