4A-16 FRONT DRIVE SHAFT (G10/M13 ENGINES)

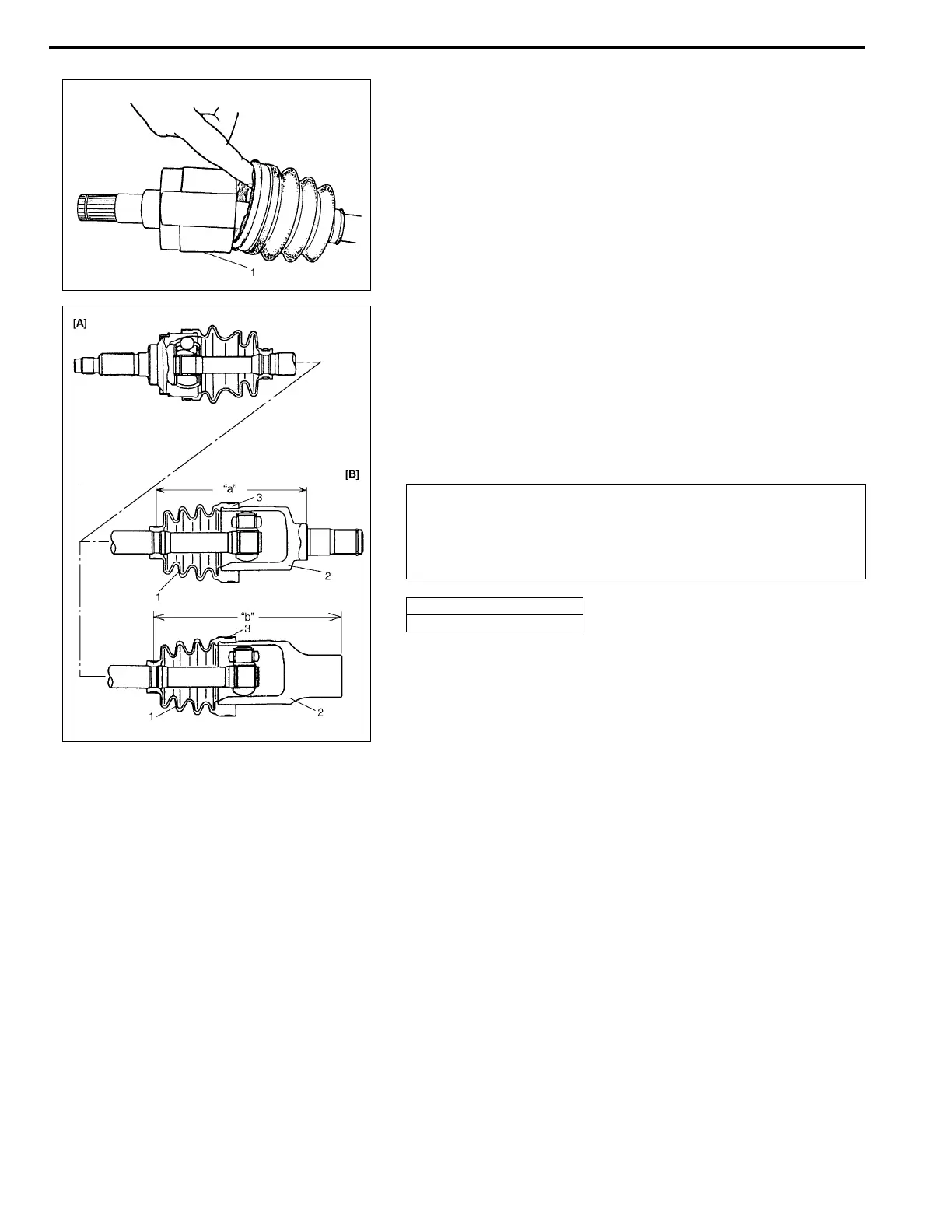

11) Apply grease to inside of joint housing (1), then install hous-
ing, joint it with boot and fit boot to joint housing.
After fitting boot, insert screwdriver into boot on joint housing
side and allow air to enter boot so that air pressure in boot
becomes the same as atmospheric pressure.
Grease color
For 2WD model: Dark brown
For 4WD model: Black
Grease amount: Approx. 95 g (3.3 oz)
12) When fixing boot (1) to joint housing (2) with differential side
big band (3), adjust so that measured dimensions become
as indicated below.
Length
“a”: 152.7 mm (6.11 in.) for right side of G10 engine model
“b”: 188.2 mm (7.53 in.) for right side of 4WD with M13
engine model
Front Drive Shaft Inspection
• Check shaft and joint for damage, wear or bend.
Replace them as necessary.
• Check retaining ring and snap ring for breakage or deforma-
tion.
Replace as necessary.
CAUTION:
To prevent any problem caused by washing solution, do
not wash joint boots and tripod joint except its housing.
Degreasing of those parts with cloth is allowed.
[A]: For wheel side
[B]: For differential side
