PROPELLER SHAFTS 4B-3
REMOVAL
1) Hoist vehicle.

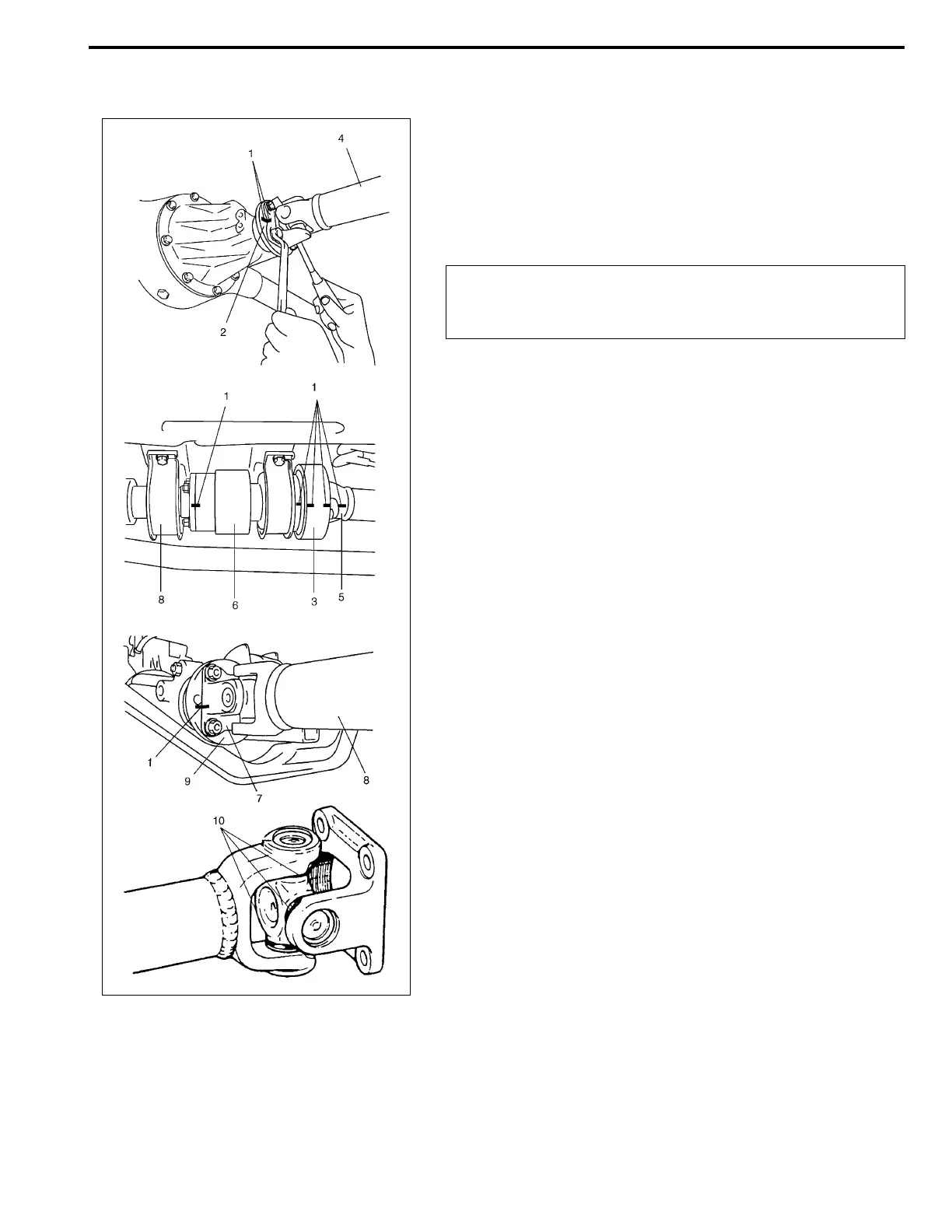

2) Before removing propeller shafts, give match marks (1) on
propeller shaft No.2 (4) and companion flange (2) of rear dif-
ferential as shown. Also give match marks (1) on propeller
shaft No.2 yoke (5), dynamic damper (3), viscous coupling
with center support (6), yoke (7) of propeller shaft No.1 with
center support (8) and transfer output flange (9).
3) Loosen propeller shaft bolts at front and rear end, and sepa-
rate propeller shafts from transfer and rear differential.
CAUTION:
Don’t damage joint seal (10) to prevent lubrication defect
of joint.
