4B-4 PROPELLER SHAFTS

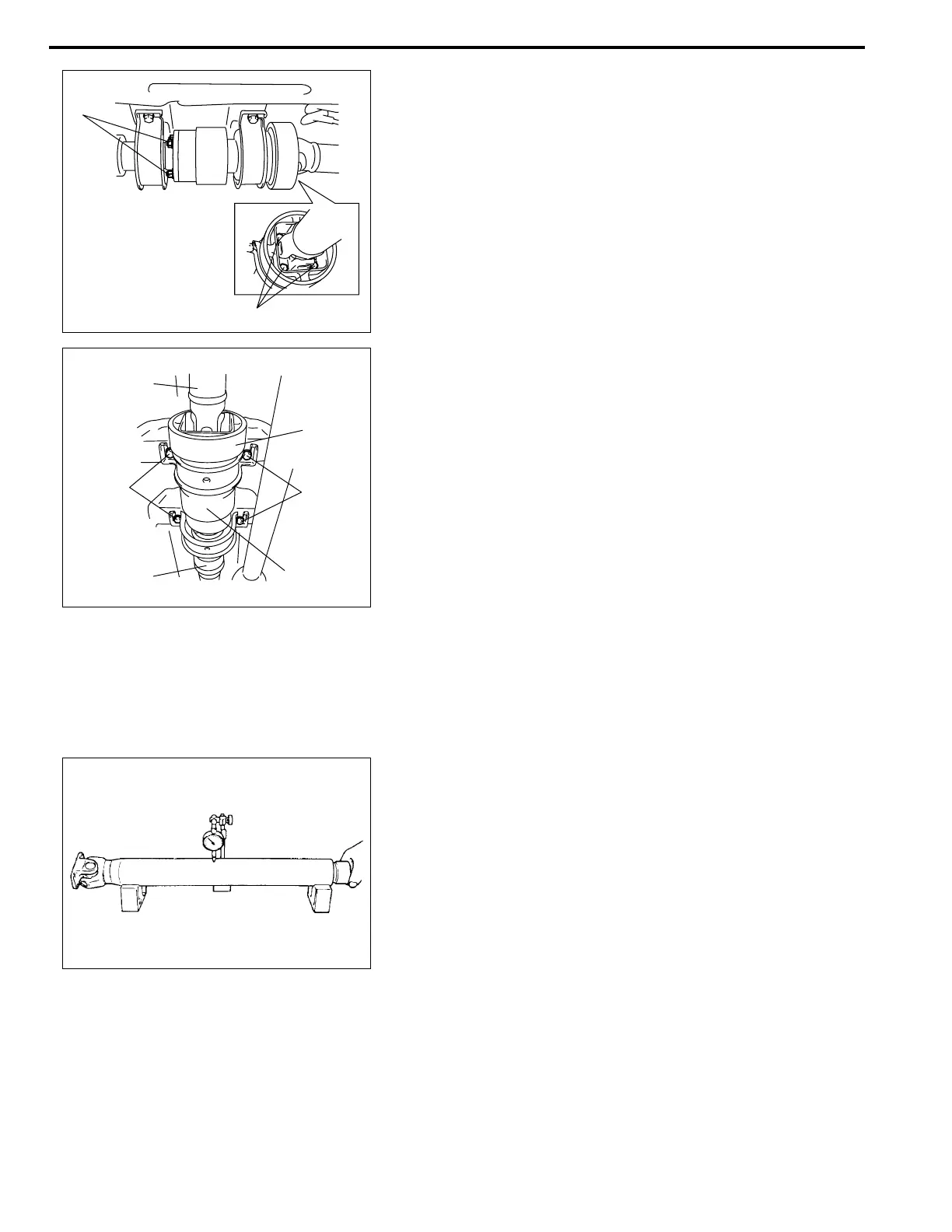

4) If disassembling propeller shaft assembly is necessary,
loosen propeller shaft No.2 bolts (1) and viscous coupling
nuts (2) to facilitate subsequent disassembling, but keeping
each connection provisionally.
5) Loosen center support bolts (1), then remove propeller shaft
No.1 with center support (2), propeller shaft No.2 (3),
dynamic damper (5) and viscous coupling with center sup-
port (4) all together.
6) Disconnect propeller shaft No.1 with center support and pro-
peller shaft No.2 from viscous coupling with center support
INSPECTION
• Inspect propeller shaft and flange yoke for damage.
• Inspect propeller shaft for runout.
If damage is found or shaft runout exceeds its limit, replace.
Propeller shaft runout
Limit: 0.7 mm (0.028 in.)
1
2
3
1
2
4
1
5
To Next Page
