PROPELLER SHAFTS 4B-5
INSTALLATION

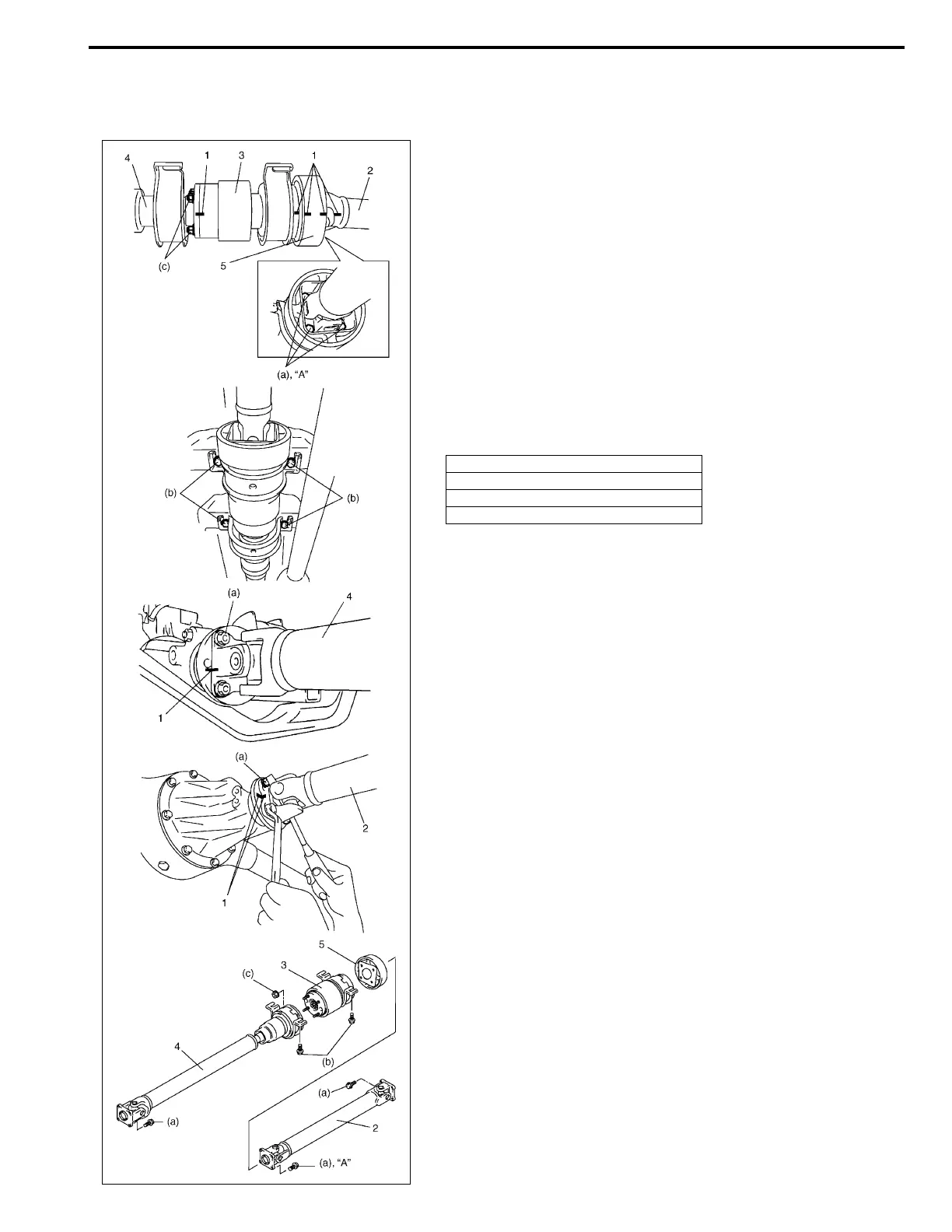

Reverse removal procedure to install propeller shafts noting the
following points.
• When installing propeller shafts, dynamic damper and vis-
cous coupling with center support, align the match marks
(1).
Otherwise, vibration may occur during driving.
• Apply thread lock cement to thread of propeller shaft No.2
bolts.
“A”: Cement 99000-32110
• Use following specification to torque bolts.
Tightening torque
Propeller shaft bolt (a): 23 N·m (2.3 kg-m, 17.0 lb-ft)
Center support bolt (b): 55 N·m (5.5 kg-m, 40.0 lb-ft)
Viscous coupling nut (c): 23 N·m (2.3 kg-m, 17.0 lb-ft)
2. Propeller shaft No.2
3. Viscous coupling with center support
4. Propeller shaft No.1 with center support
5. Dynamic damper
