ENGINE MECHANICAL (M13 ENGINE) 6A2-47

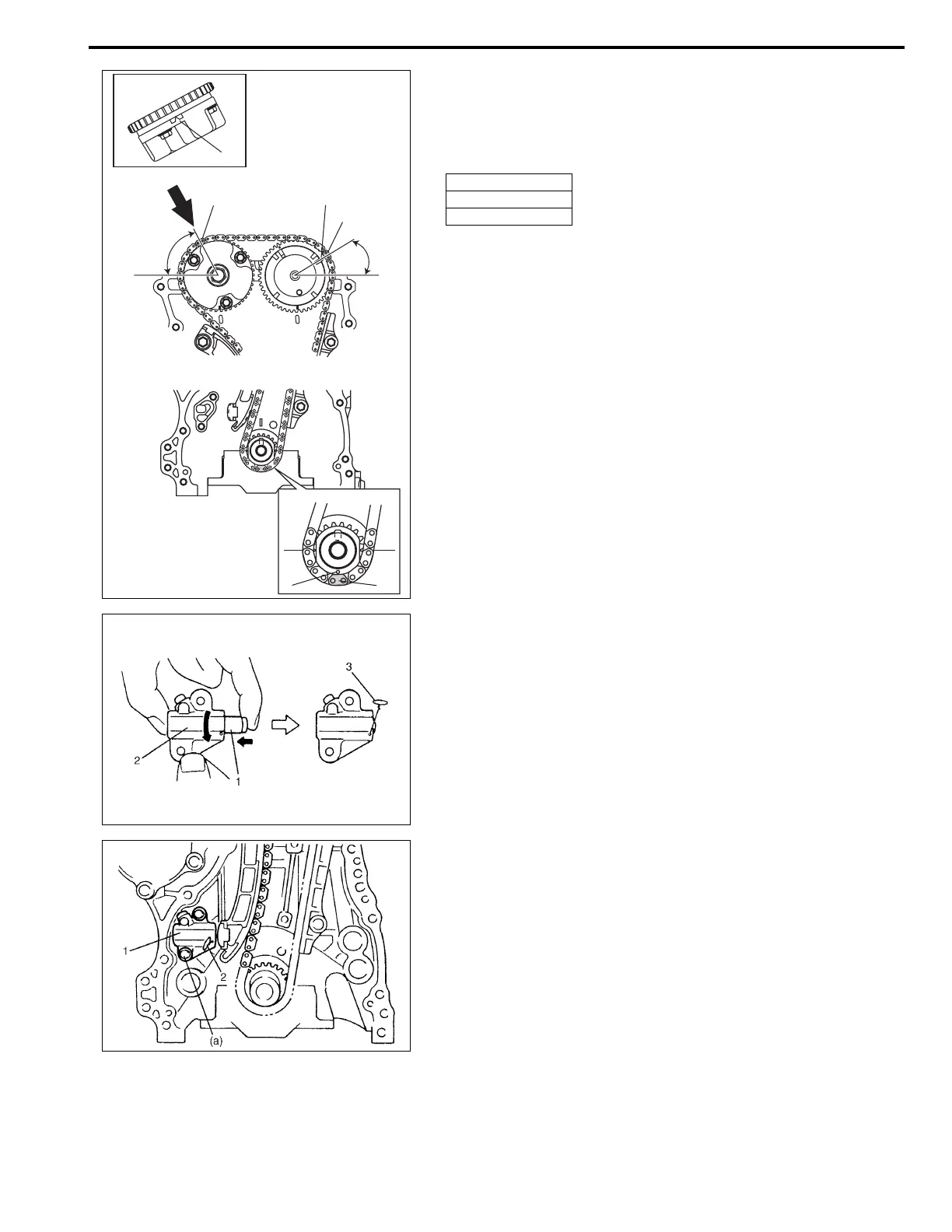

7) Check that match marks (1) on intake and exhaust camshaft
timing sprockets are in match with marking of timing chain
(2) and match mark on crankshaft timing sprocket (3) are in
with marking of timing chain (4).
8) Screw in plunger (1) by turning body (2) in arrow direction
and install a retainer (3) (wire) to hold plunger in place.
9) Install timing chain tensioner adjuster assembly (1) with a
retainer (2).
Tighten adjuster bolts to specified torque and then remove a
retainer from chain tensioner adjuster assembly.
Tightening torque
Tensioner adjuster bolt
(a): 11 N·m (1.1 kg-m, 8.0 lb-ft)
[A]: View A
“a”: Approx. 60°
“b”: Approx. 30°
2
2
1
1
3
4
A
[A]
“a”
“b”
