AUTOMATIC TRANSAXLE (M13 ENGINE) 7B1-125

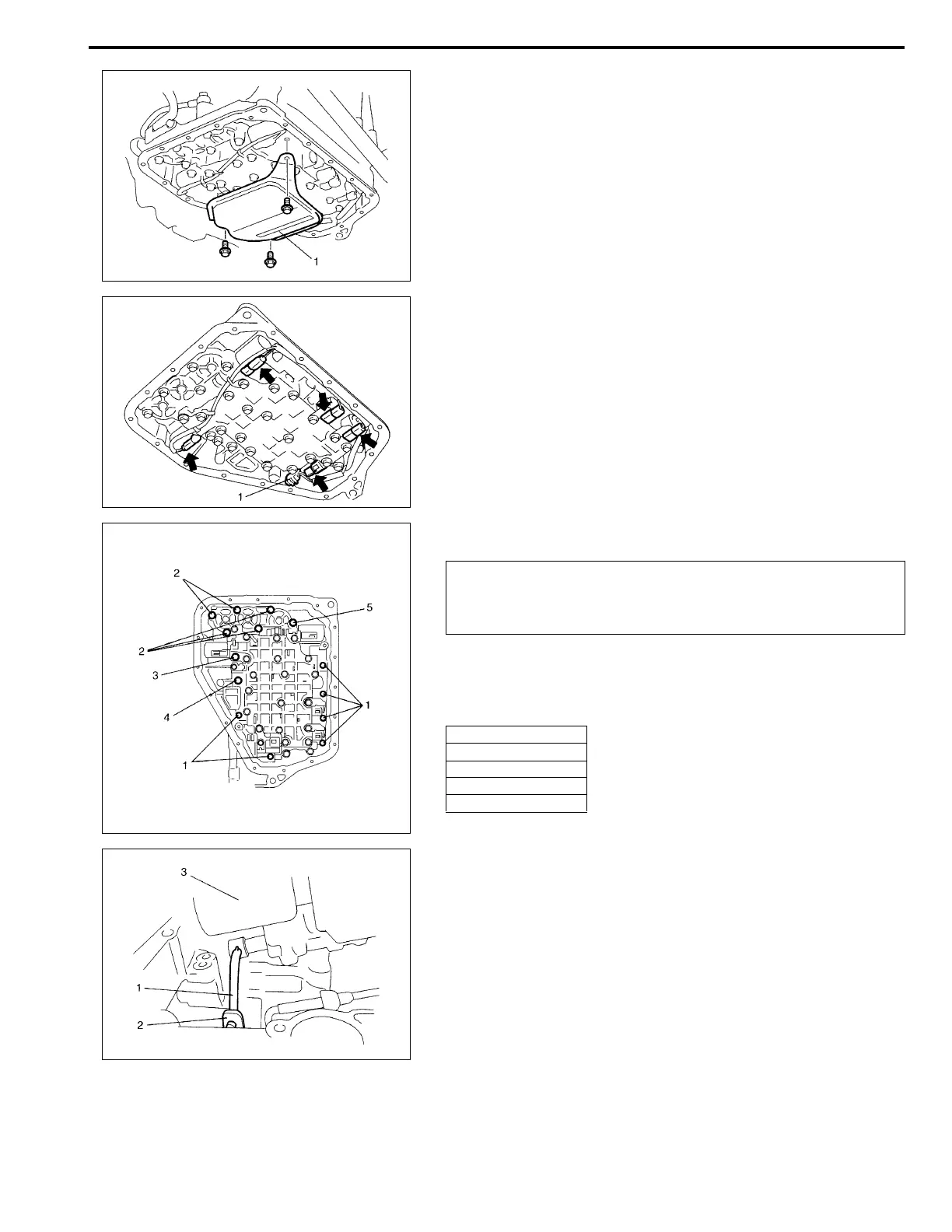

11) Remove oil strainer assembly (1).
12) Disconnect connectors from solenoid valves, and transmis-
sion fluid temperature sensor (1).
13) Remove valve body assembly bolts.
14) Remove manual valve rod (1) from manual valve lever (2),
then remove valve body assembly (3).
CAUTION:
Be careful not to let manual valve fall off when removing
valve body assembly.
NOTE:
There are five kinds of bolts (bolts A, B, C, D and E) fixing
valve body assembly
1. Bolt A
2. Bolt B
3. Bolt C
4. Bolt D
5. Bolt E
