7B1-124 AUTOMATIC TRANSAXLE (M13 ENGINE)

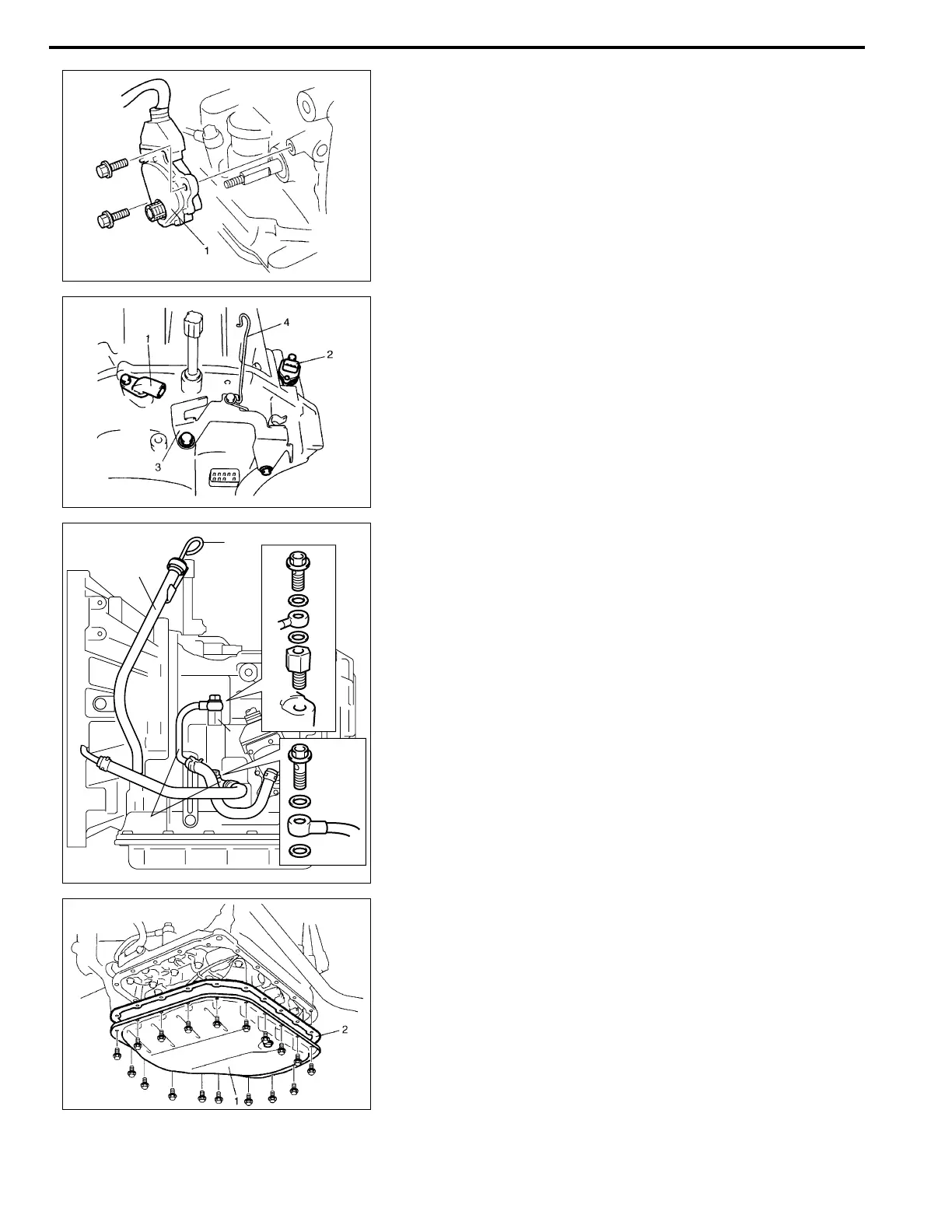

5) Remove transmission range sensor (1).
6) Remove input shaft speed sensor (1) and output shaft speed
sensor (VSS) (2).
7) Remove harness bracket (3) and select cable clamp (4).
8) Remove fluid cooler pipes (1) and pipe union (2).
9) Remove fluid level gauge (3) and fluid filler tube (4).
10) Remove oil pan (1) and oil pan gasket (2).
1
2
4
3
NOTE:
• For removal of oil pan, do not turn transaxle over as
this will contaminate valve body with foreign materials
in bottom of oil pan.
• When removing oil pan, tap around it lightly with plas-
tic hammer. Do not force it off by using screwdriver or
the like.
To Next Page
