AUTOMATIC TRANSAXLE (M13 ENGINE) 7B1-185

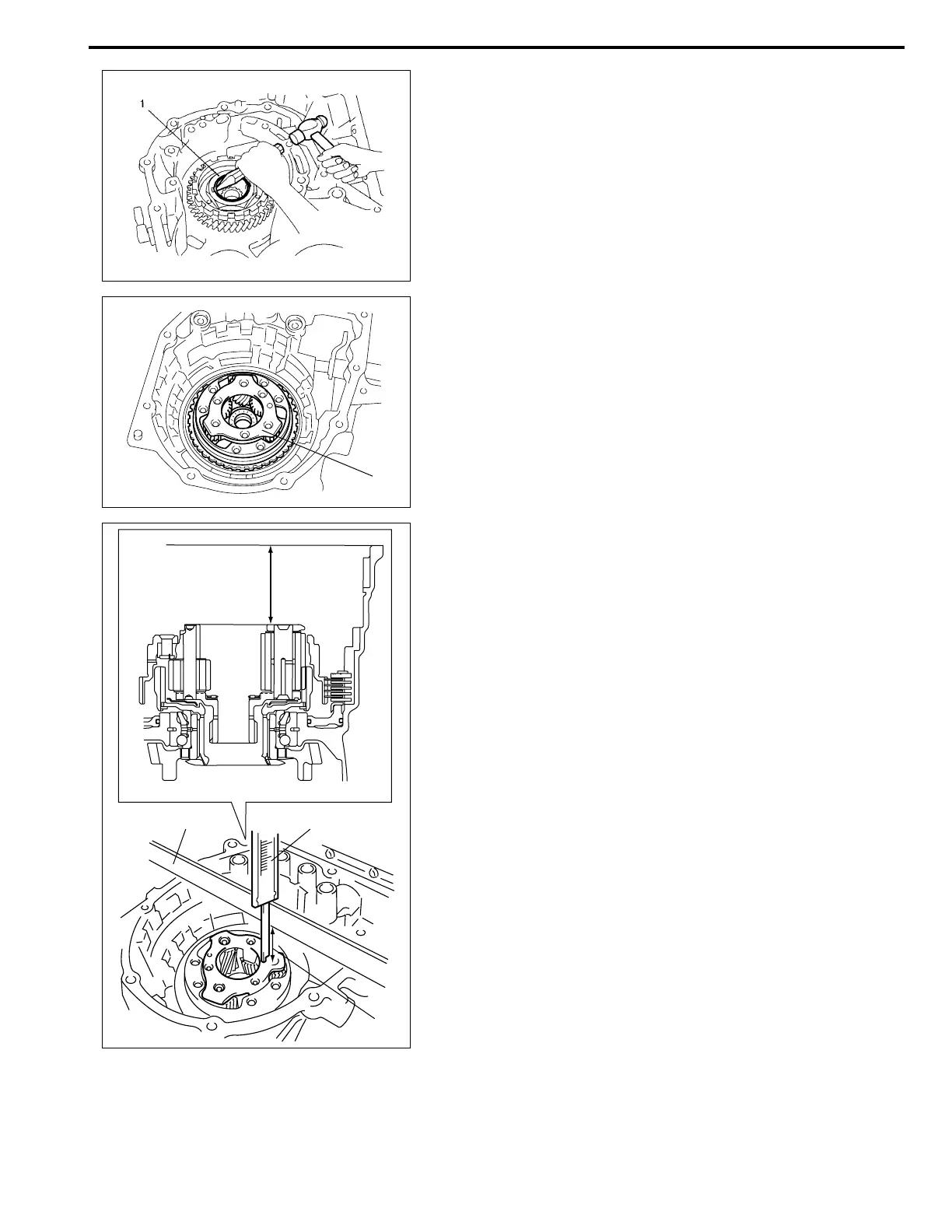

18) Caulk reduction drive gear nut (1).
19) Apply A/T fluid to planetary gear assembly (1), then fit it to
planetary ring gear assembly.
20) Check for correct installation of planetary gear assembly as
follows.
Measure the distance “a” by using micrometer caliper (1)
and straightedge (2). If measured value is out of specifica-
tion, remove planetary gear assembly and reinstall it prop-
erly.
Distance between planetary gear assembly and mating
surface of transaxle case
“a”: 51.3 – 52.0 mm (2.020 – 2.047 in.)
1
“a”
“a”
2
1
