7B1-186 AUTOMATIC TRANSAXLE (M13 ENGINE)

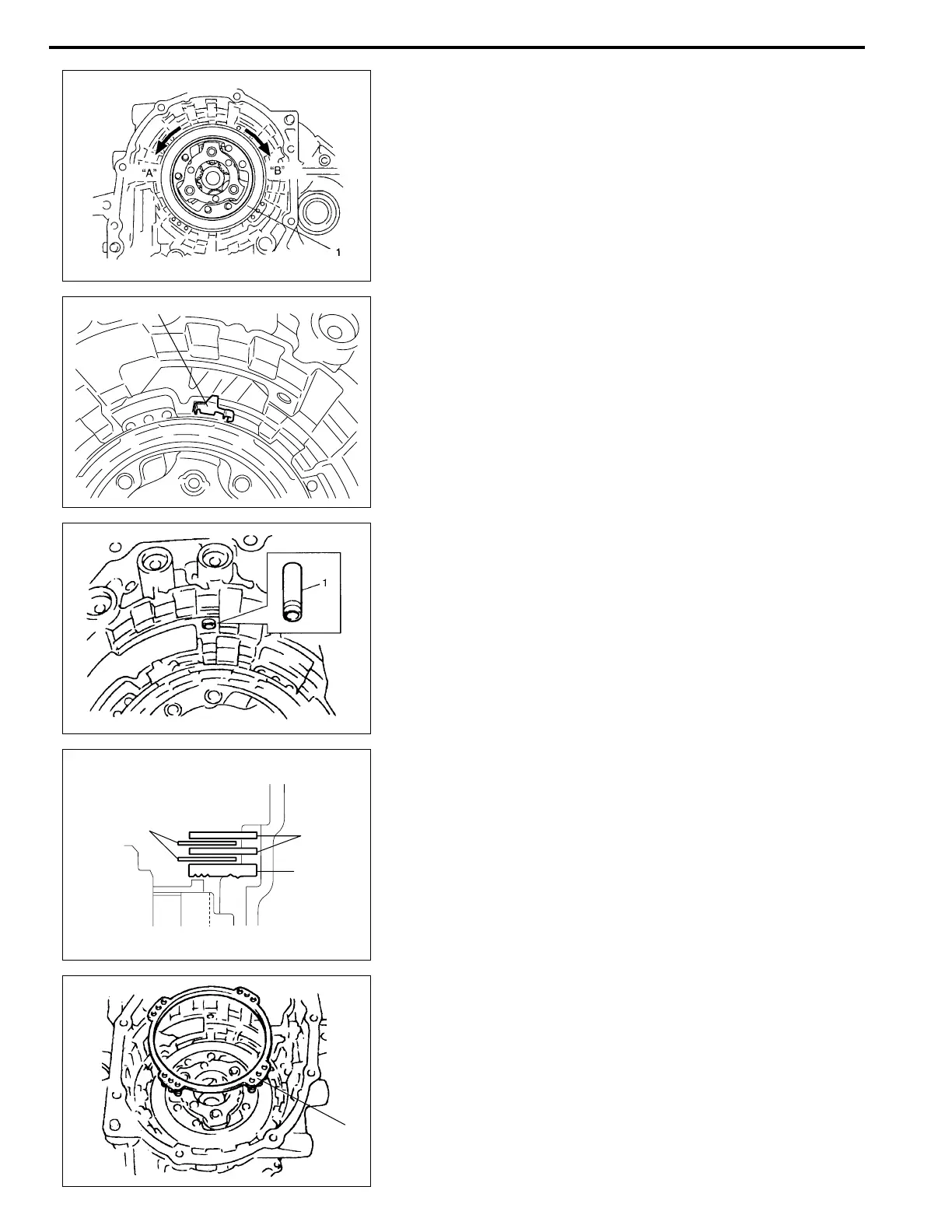

21) Apply A/T fluid to one-way clutch No.2 assembly (1), then
install it to planetary gear assembly. After that, ensure that
planetary carrier rotates only in counterclockwise direction
“A”, not in clockwise direction “B”.
22) Install one-way clutch outer race retainer (1).
23) Apply A/T fluid to new brake drum gasket (1), then install it to
transaxle case.
24) Apply A/T fluid to 2nd brake retaining plate (1), discs (2) and
separator plates (3), then install them to transaxle case.
25) Install 2nd brake return spring subassembly (1) to transaxle
case.
1
2
3
1
1
